Crestron Isys
TPS-2000L 5 Inch Lectern/Wall Mount Touchpanel

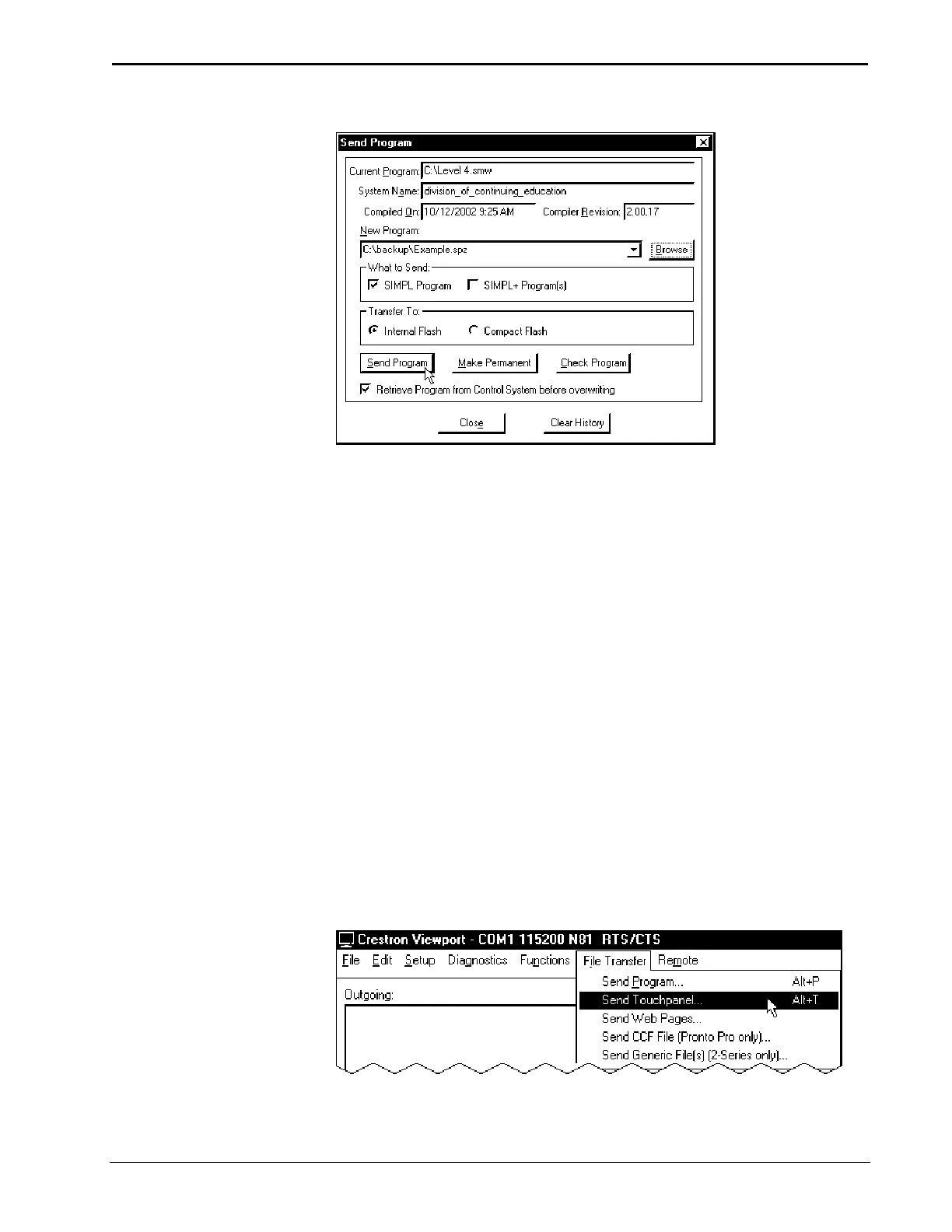

“Send Program” Window
4. To verify that the program has been transferred successfully, select
Diagnostics | Report Program Information or press F7. This should
display a window that provides details about the current program
loaded into the control system.
Uploading a VT Pro-e Project
The TPS-2000L touchpanel
source file has the extension
.vtp. A compiled VT Pro-e file
has the extension .vtz.
The VT Pro-e file can be uploaded to the touchpanel using VT Pro-e or via the
Crestron Viewport.
Upload via VT Pro-e
1. Start VT Pro-e.
2. Select File | Open | Project to view the “Open” window, navigate to the
VT Pro-e file (.vtp), and click Open.
3. Select File | Upload Project.
Upload via Crestron Viewport
1. Verify that the procedure for “Communication Settings” that begins on
page 30 has been performed.
2. As shown after this step, select File Transfer | Send Touchpanel
(alternatively, press Alt+T) from the Viewport menu.
File Transfer | Send Touchpanel Command
Operations Guide – DOC. 5972A 5 Inch Lectern/Wall Mount Touchpanel: TPS-2000L • 33
