Crown Macro-Tech MA-3600VZ - Heatsink Assembly

Parts 5-15
130366-1 Rev. A
MA-3600VZ Service Manual
©2000 Crown International, Inc.
Item Quantity Description Part # (CPN)
5.3.8 Heatsink Assembly
(Channel 1 and 2 are Identical)

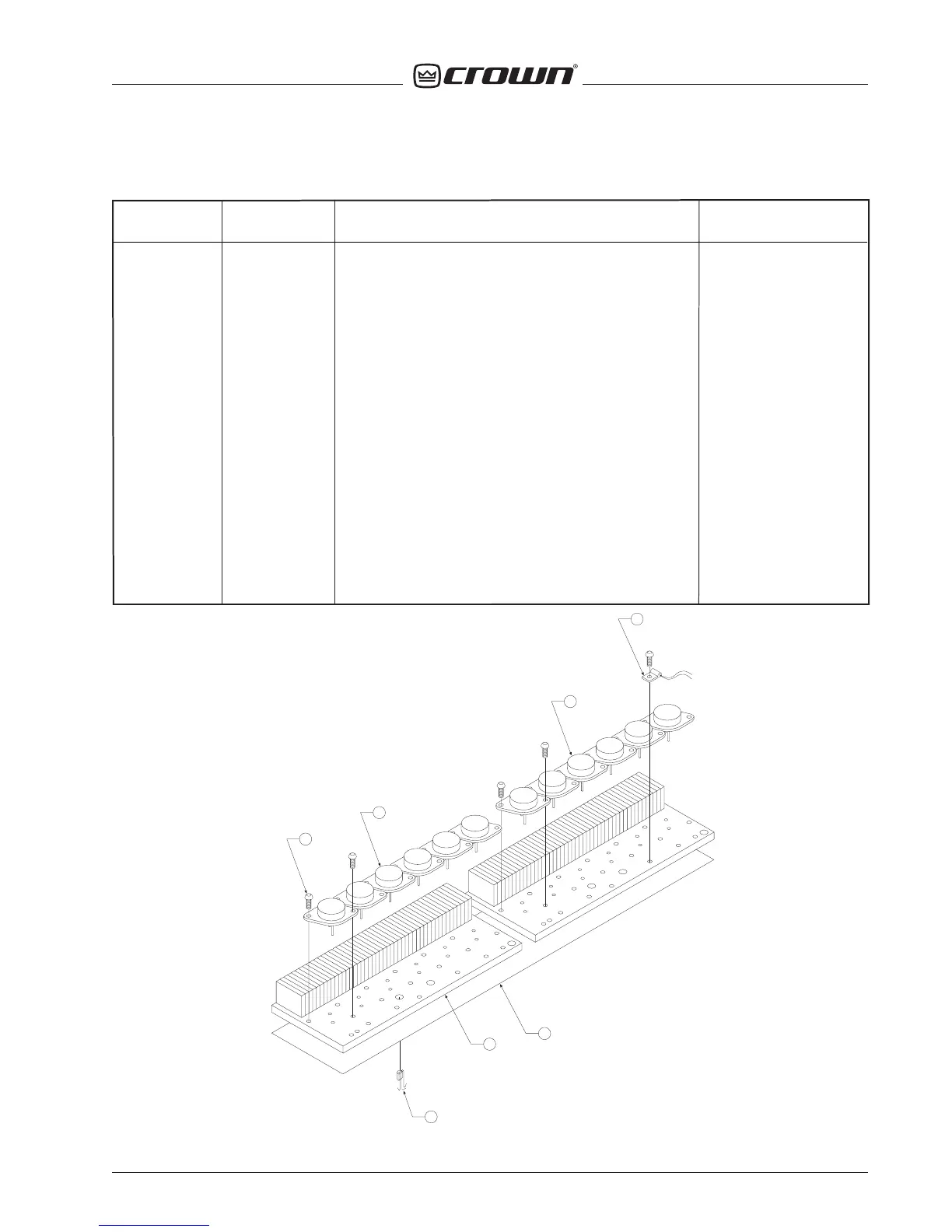

Refer to Figure 5.8 for Exploded View
2
1
5
6
7
4
3
Figure 5.8 Heatsink Assembly
1
2
3
4
5
6
7
Not Pictured
24
12
12
2
2
2
2
Screw, 6-32 x .312 Pan HD T15 Taptite
NPN Power Transistor
PNP Power Transistor
PTC
LM234Z Thermal Sense
Heatsink
Silpad, 2.87 x 14.57
Note: use CPN #D6280-8 with Output PWB
P10316-1 or earlier.
Tefl on Tubing
C 9491-9
C 8187-4
C 8188-2
D 8774-8
C 5826-0
M21322J8
D 7796-2
126508-1
