MA-3600VZ Service Manual
Parts 5-14
130366-1 Rev. A
©2000 Crown International, Inc.
Item Quantity Description Part # (CPN)
5.3.7 Fan Assembly
Refer to Figure 5.7 for Exploded View

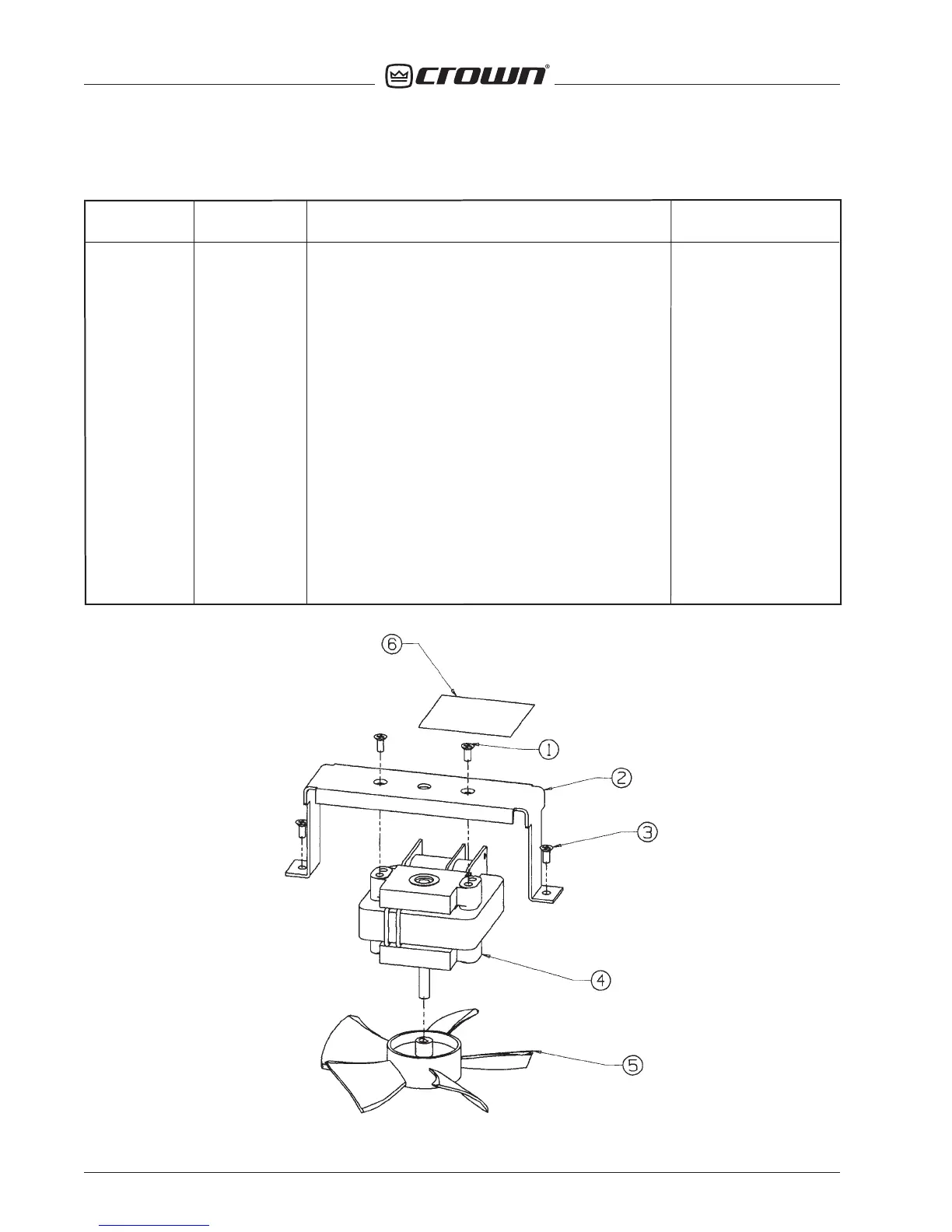

Figure 5.7 Fan Assembly
1
2
3
4
5
6
2
1
2
1
1
1
1
Screw, 6-32 x 5/16 FLTHD
Fan Bracket
Screw, 6-32 x .312 Pan HD T15 Taptite
Transmotor, 120V, Domestic
Transmotor, 240V, E17CE
Fan Blace, 4.5 Inch CCW
Label, 1A Fuse Replacement
C 7062-0
D8439-8
C 9491-9
H43076-1
H43358-3
C 9938-9
D8671-6
