15
L510023-07
(2) Splice pin-A (Orange/Tan) to pin-6 of the
respective engine 8-pin Deutsch connector and
pin-B (Tan/Red) to pin-4 of the engine 8-pin
connector. Only, the Check Engine Lamp
and alarm buzzer of the warning cluster will be

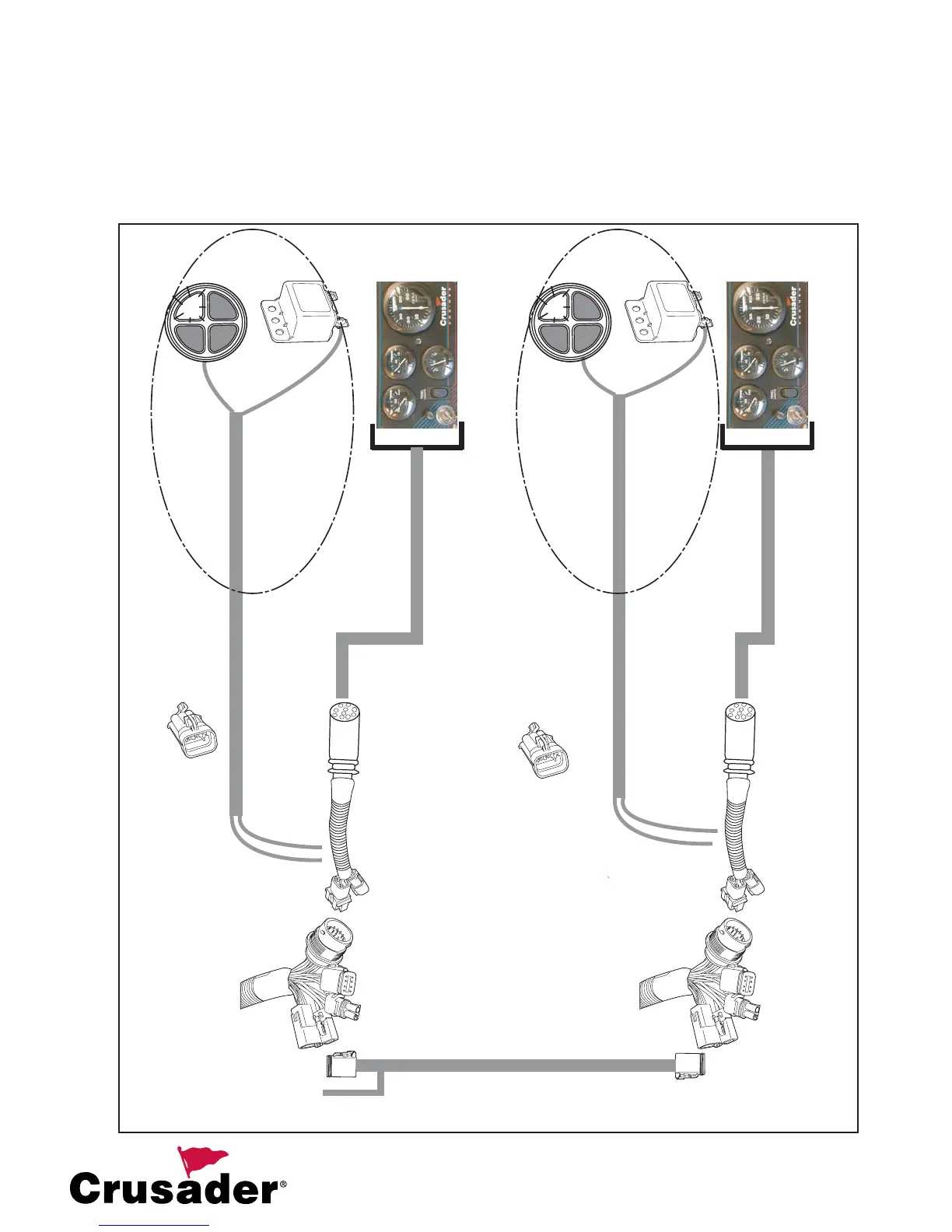

functional. Refer to the wiring diagram below
for connection/splice options for the MIL and
Buzzer.
Engine Side
Dash Side
Part Number -
RA121093
WATER
TEMP
OIL
PRESS
CHK
ENGINE
TRANS
TEMP
WATER
TEMP
OIL
PRESS
CHK
ENGINE
TRANS
TEMP
ENGINE
HARNESS
ENGINE
HARNESS
Part Number -
RA121093
Master / Slave
Engine Harness
Part Number -
RA121072C
PORT/
SLAVE
ENGINE
GND
STARBOARD/
MASTER
ENGINE
Existing Boat
Harness
Existing Boat
Harness
PIN-B TAN/RED
SPLICE TO
TAN/BLACK IN
RA121093
PIN-A ORANGE/TAN
SPLICE TO
GREEN/YELLOW
IN RA121093
CUT 8-PIN
CONNECTOR
OFF HARNESS
CUT 8-PIN
CONNECTOR
OFF HARNESS
PIN-B TAN/RED
SPLICE TO
TAN/BLACK IN
RA121093
PIN-A ORANGE/TAN
SPLICE TO
GREEN/YELLOW
IN RA121093
98387/98388
HARNESS
98387/98388
HARNESS
23505
Display
23505
Display
Existing Harness and
Warning Cluster
Existing Harness and
Warning Cluster
To Next Page
