6
L510023-07
TRANSMISSION ROTATION
Velvet Drive In-Line and V-Drive
Transmission gear ratio (in forward gear) is marked
on the transmission identifi cation plate. Transmission
output shaft rotation is indicated on a decal on the
transmission case.
IMPORTANT: Use of proper rotation propeller,
indicated by the output fl ange rotation decal, is
critical as operating the transmission in Reverse to
move the boat forward WILL CAUSE transmission
failure. The transmission MUST BE operated in
forward gear only to propel the boat forward.

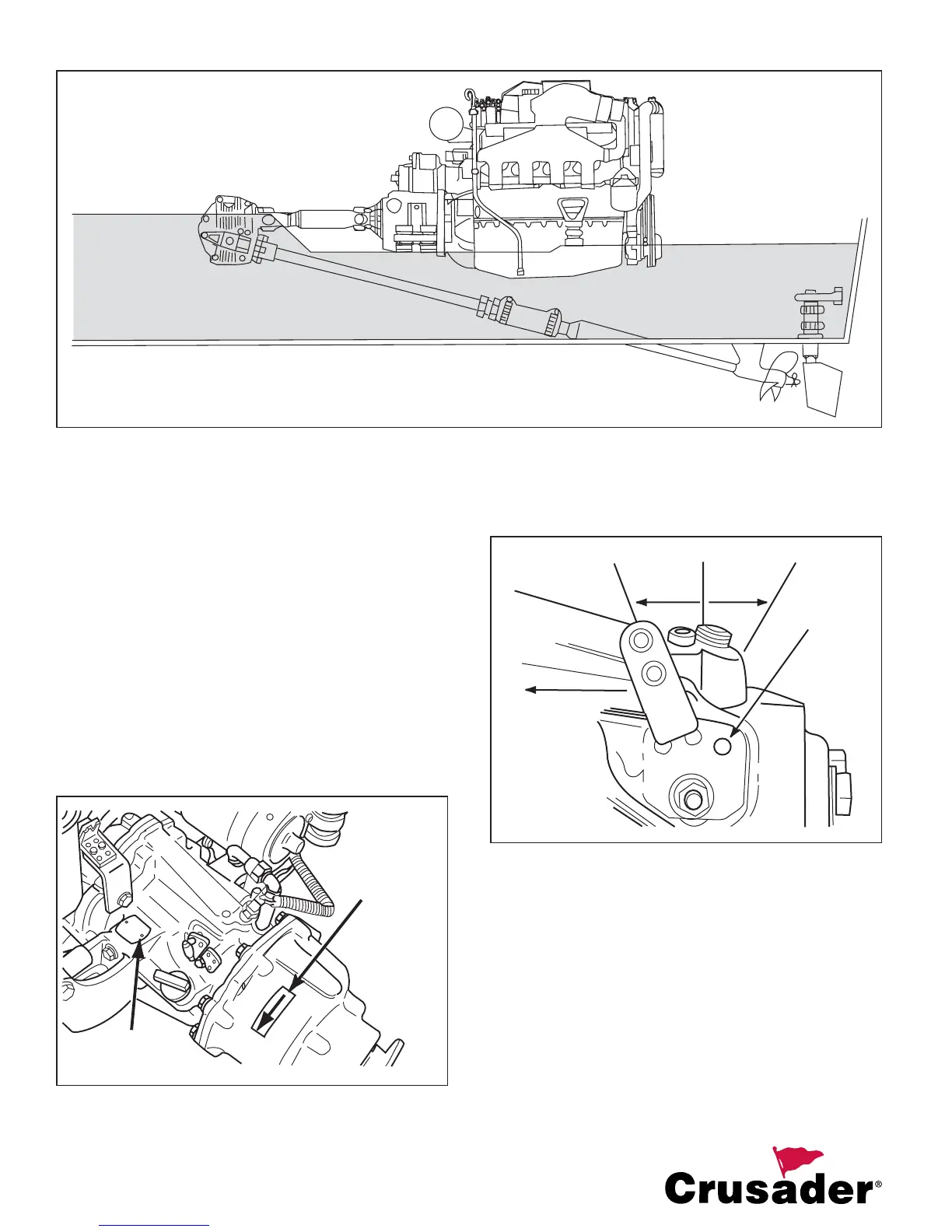

Figure 5 Standard Velvet Drive Identifi cation Plate and
Propshaft Rotation
Figure 6 Shift Lever Positions - Standard Velvet Drive
PROP SHAFT
ROTATION
DECAL
IDENTIFICATION
TAG
TOWARD
FLYWHEEL
FOR
FORWARD
POPPET
BALL
F
N
R
Figure 4 Engine Applications - Typical Remote V-Drive Transmission
