L510023-07

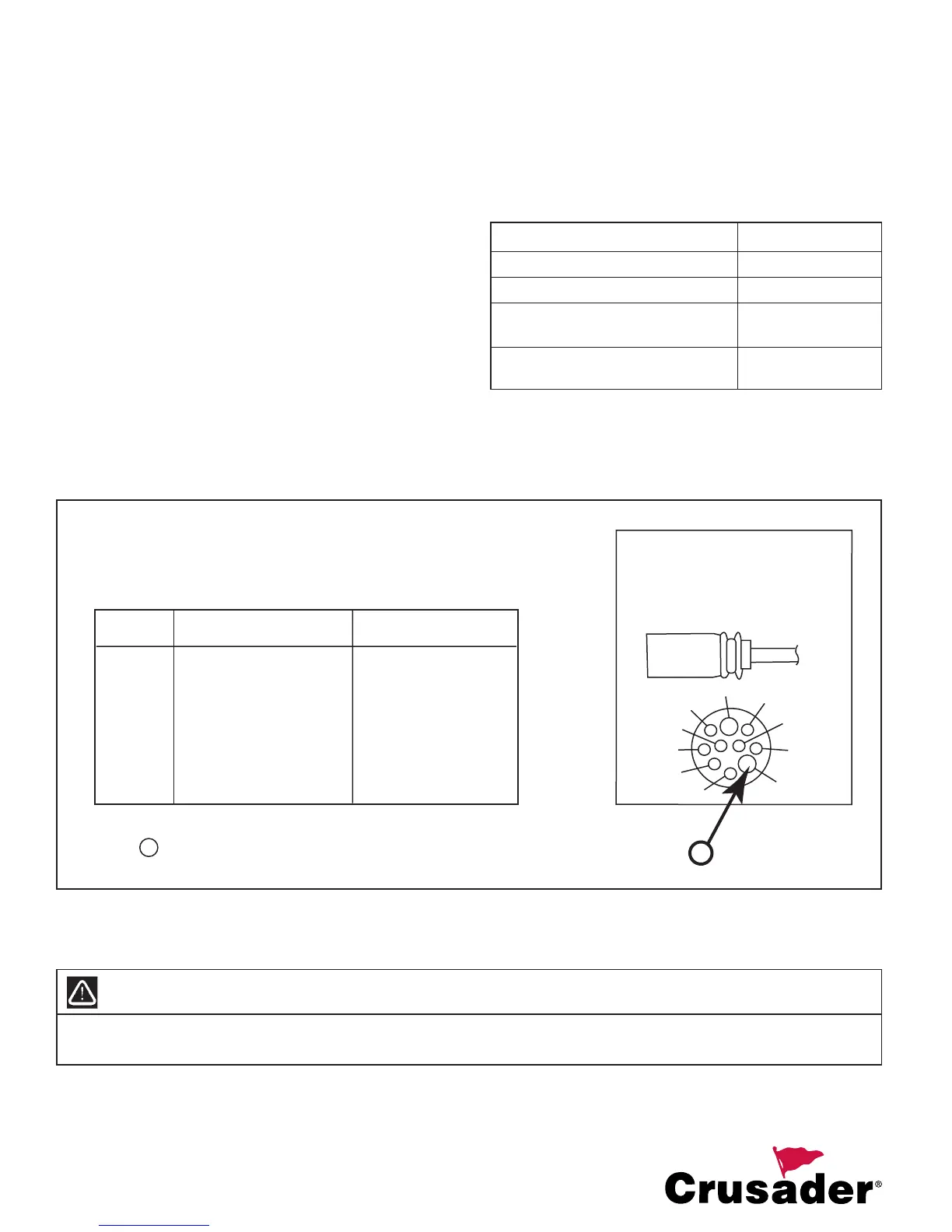

CIRCUIT CIRCUIT ENGINE HARNESS
NUMBER NAME WIRE COLOR
1. GROUND BLACK
2. TACHOMETER GRAY
3. WATER TEMPERATURE TAN
4. N/C
5. IGNITION PURPLE
6. BATTERY RED
7. STARTER YELLOW/RED
8. OIL PRESSURE LT. BLUE
9. N/C
10. N/C
NOTE: ENGINE HARNESS WIRED FOR PANELS USING VOLTMETERS ONLY.
NOTE
A
: POWER FOR A FUSED ACCESSORY PANEL MAY BE TAKEN
FROM THIS LOCATION. LOAD CANNOT EXCEED 30 AMPS.
WIRE HARNESS COLOR CHART
10
4
3
2
ENGINE
HARNESS
ADAPTER
5
6
7
9
8
1
A
IMPORTANT: Your engine is designed to work with the standard electronics installed in your boat. If you add other
electrical components or accessories, you could change how the overall electrical system functions. Before adding
electrical equipment, consult your dealer. If you don’t, your engine may not perform properly.
CAUTION
Add-on equipment may adversely affect the alternator output or overload the electrical system. Any damage caused
as a result will not be covered by, and may void, your warranty.
CRUSADER CLASSIC 5.7L CARBURETOR
- ELECTRICAL SYSTEM PRECAUTIONS
To avoid damage to the electrical system, the following
precautions must be observed when adding additional
electric accessories.
• DO NOT reverse battery leads.
• DO NOT splice wires into engine electrical
harness.
• DO NOT puncture engine wires for testing
(probing).
• DO NOT attempt engine diagnostics without the
proper service tools.
• DO NOT attach any accessory wiring to the ECM
ground location.
CRUSADER CLASSIC ACCESSORIES
Instrument panels, wiring harnesses, propeller shaft
couplers, etc. are available for this product. Contact
your Crusader Engines Distributor or Crusader Engines
Sales Department for a listing of these options. A list of
Distributors is provided at the end of this manual.
ENGINE INSTALLATION ACCESSORIES
Electric Fuel Solenoid Valve P/N 23532
Solenoid Valve Power Harness P/N 98452
Water Separating Fuel Filter Kit P/N RK080033
Adapter - Engine to Boat Harness 98218
10-Pin to 8-Pin Male
Adapter - Engine to Boat Harness R121073
10-Pin to 8-Pin Female
NOTE: Twin engine Sync-N-Cruz, multifuction
displays, and CAN-Bus instrumentation options
are not available with the Crusader Classic series
engines.
