12
L510023-07
BOAT CONSTRUCTION
Engine Bed
The engine bed should be a horizontal type and rigid
enough to maintain engine alignment at all times.
Distance between the starboard and port engine mounts
is 22 1/2 in. (57.15 cm). The engine bed should support
the four (4) engine mounts in such a manner so that a
minimum of 1/4 in. (0.64 cm) up and down adjustment
still exists on all the mounts after the fi nal engine
alignment has been performed. This is necessary to
allow for realigning the engine in the future.
Use adequately sized bolts to attach the engine to the
stringers or mounting plates. It must be remembered
that all the force used to drive the boat through the water
is transferred to the hull through the engine bed. Make
sure there is adequate clearance between the underside
of the engine and the hull.

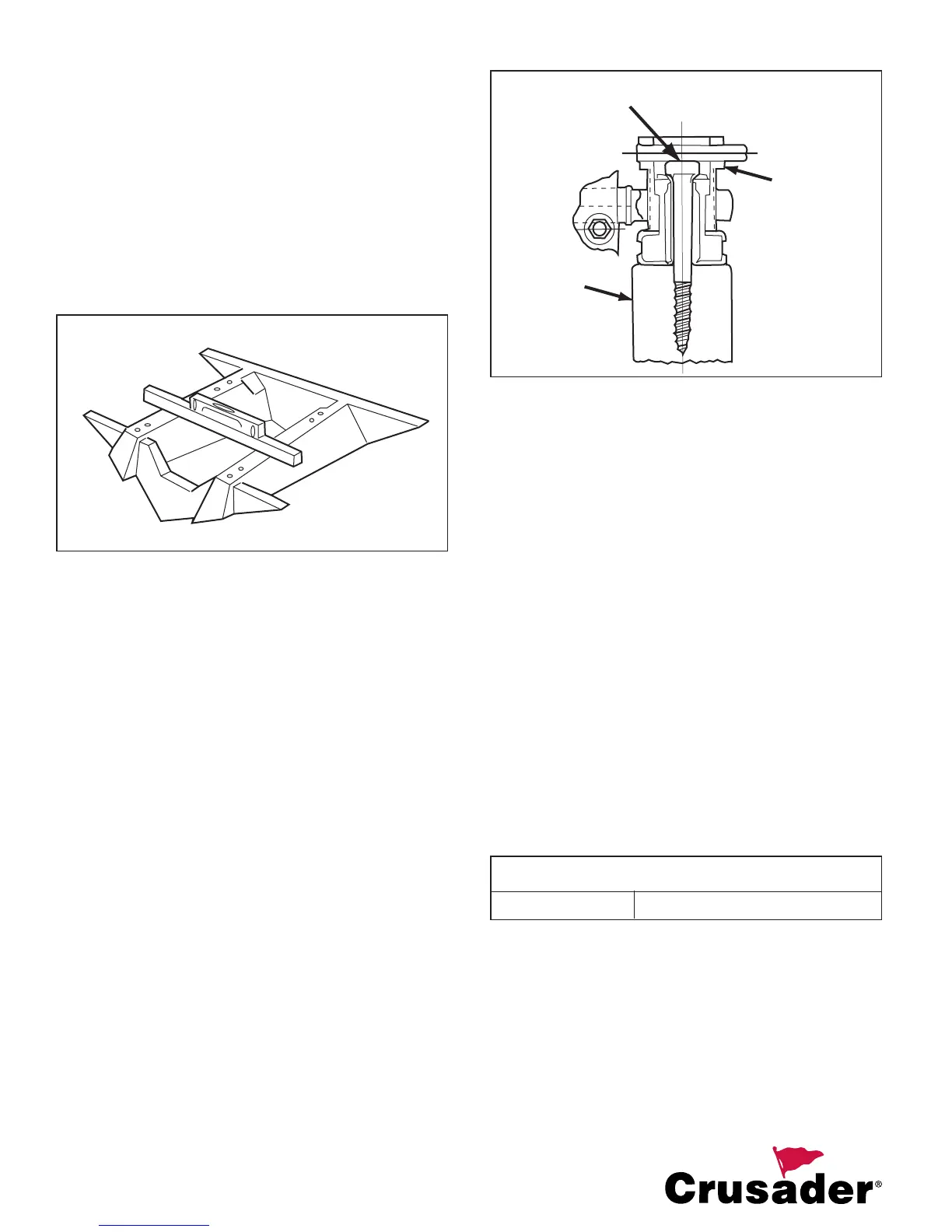

Figure 14 Engine Bed
Figure 15 Engine Mount Attachment
INSTALLATION REQUIREMENTS
Battery/Battery Cables
IMPORTANT: Boating industry standards (BIA,
ABYC, etc.), Federal standards and Coast Guard
regulations must be adhered to when installing the
battery. Be sure the battery cable installation meets
the pull test requirements and that the positive
battery terminal is properly insulated in accordance
with the regulations.
IMPORTANT: Engine electrical system is negative
(-) ground. It is recommended (required in some
states) that the battery be installed in an enclosed
case. Refer to the regulations in your area.
1. Select a battery that meets all of the following
specifi cations:
A. 12-volt marine type
B. Tapered post connections
C. Reserve capacity rating of at least 100
minutes
2. Select the proper size positive (+) and negative
(-) battery cables using the chart. Battery should
be located as close to the engine as possible.
3. In twin engine applications, it is recommended
that both engines be grounded together using a
cable of adequate gauge.
MINIMUM 12-VOLT BATTERY SIZE
All Engines 650 CCA 120 Ah
1/2" x 6" LAG SCREW
(MINIMUM LENGTH)
ADJUSTING
SLEEVE
STRINGER
