Dual Engine Velvet Drive 5000 and Hurth 630A
Installation
These “Full-Reversing” transmissions rotate equally in
either direction depending upon shift lever position and
desired propeller rotation.
Velvet Drive 5000 gear ratios include: 1.50:1, 2.00:1,
2.45:1 or 2.80:1.
Hurth 630A gear ratios include: 1.50:1, 2.00:1, 2.50:1 or
2.70:1.

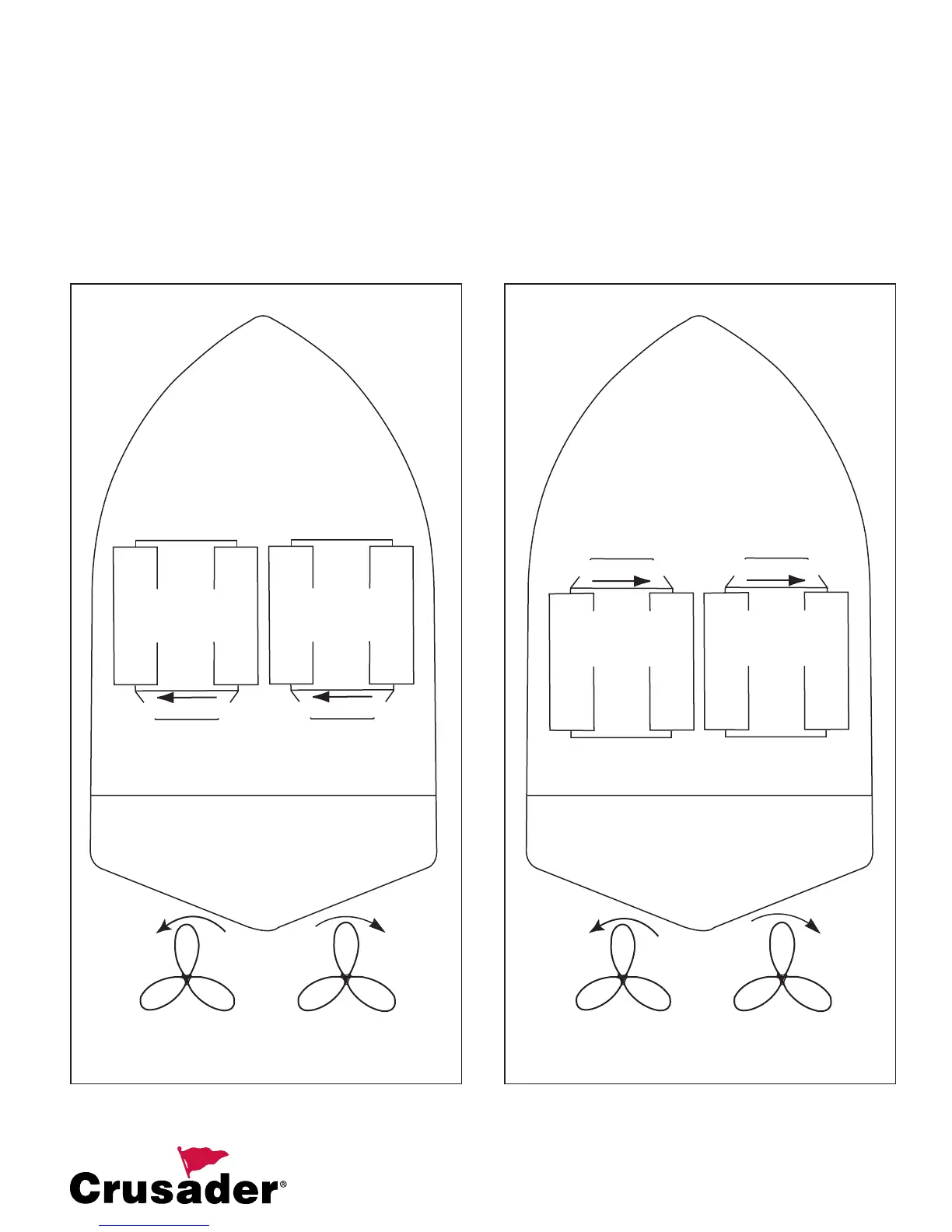

Figure 12 Dual Engine Velvet Drive 5000 and Hurth
630H Installation
Dual Engine Velvet Drive 5000 and Hurth 630V
V-Drive Installation
These “Full-Reversing” V-Drive transmissions rotate
equally in either direction depending upon shift lever
position and desired propeller rotation.
Velvet Drive 5000 V-Drive gear ratios include: 1.21:1,
1.51:1, 1.99:1 or 2.50:1.
Hurth 630V gear ratios include: 1.30:1, 1.55:1, 2.00:1 or
2.50:1.
Figure 13 Dual Engine Velvet Drive 5000 and Hurth
630V V-Drive Installation
LH
FRONT
LH OR CCW
ENGINE
ROTATION
LH OR CCW
ENGINE
ROTATION
FLYWHEEL FLYWHEEL
RH
FRONT
FRONT FRONT
LH OR CCW
ENGINE
ROTATION
LH OR CCW
ENGINE
ROTATION
FLYWHEEL FLYWHEEL
LH
RH
