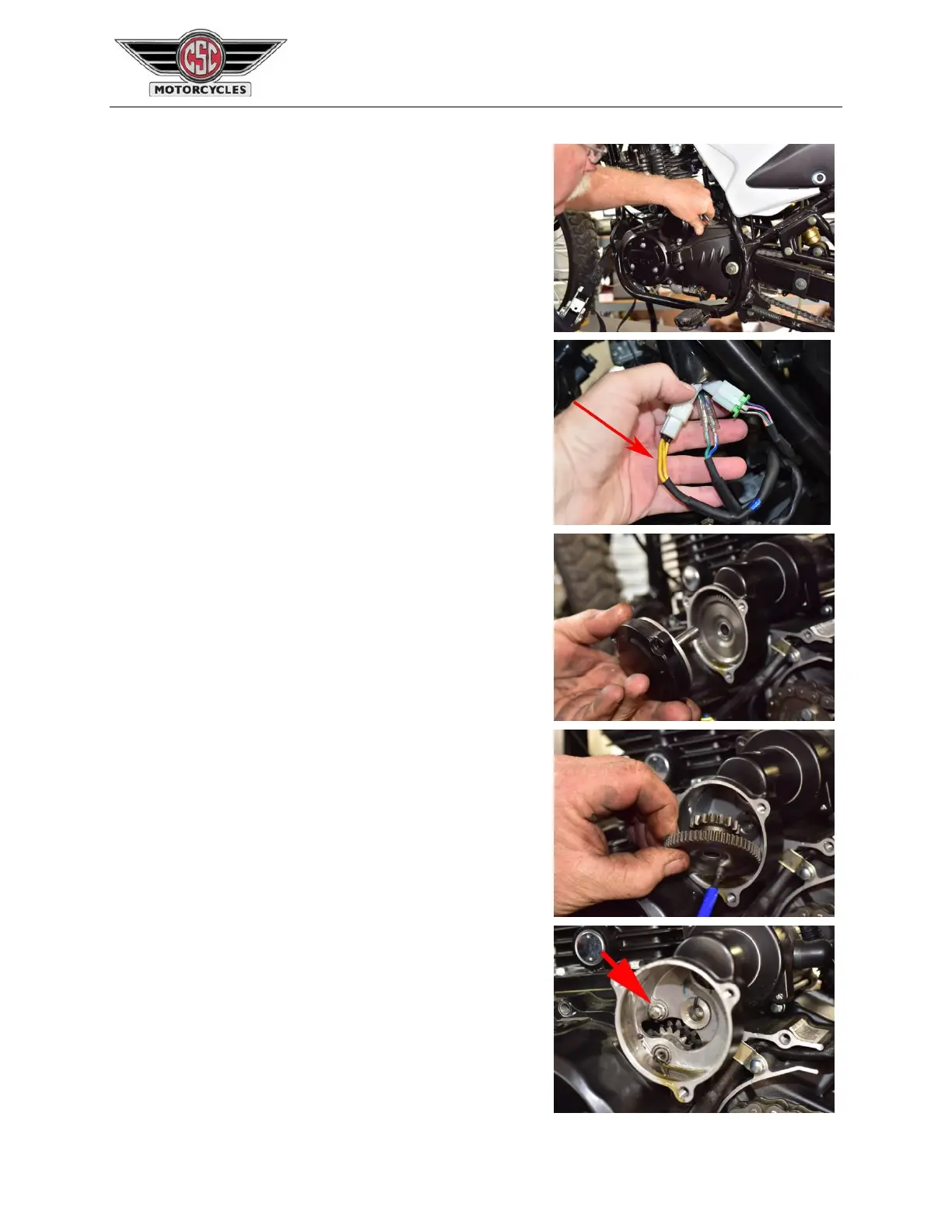

Remove the countershaft sprocket cover.
Disconnect the stator harness.
Remove the starter motor transfer gear cover.
Remove the starter transfer gears. Note their orientation;
the smaller gear is closest to the starter motor. Note that
there are small shims on either side of the gear cluster; take
care not to lose them.
Unbolt the 8mm bolt securing the starter gear transfer case
to the crankcase. Note that this bolt is a fully threaded bolt.
