360a DISPLAY
CONFIGURATION SETUP

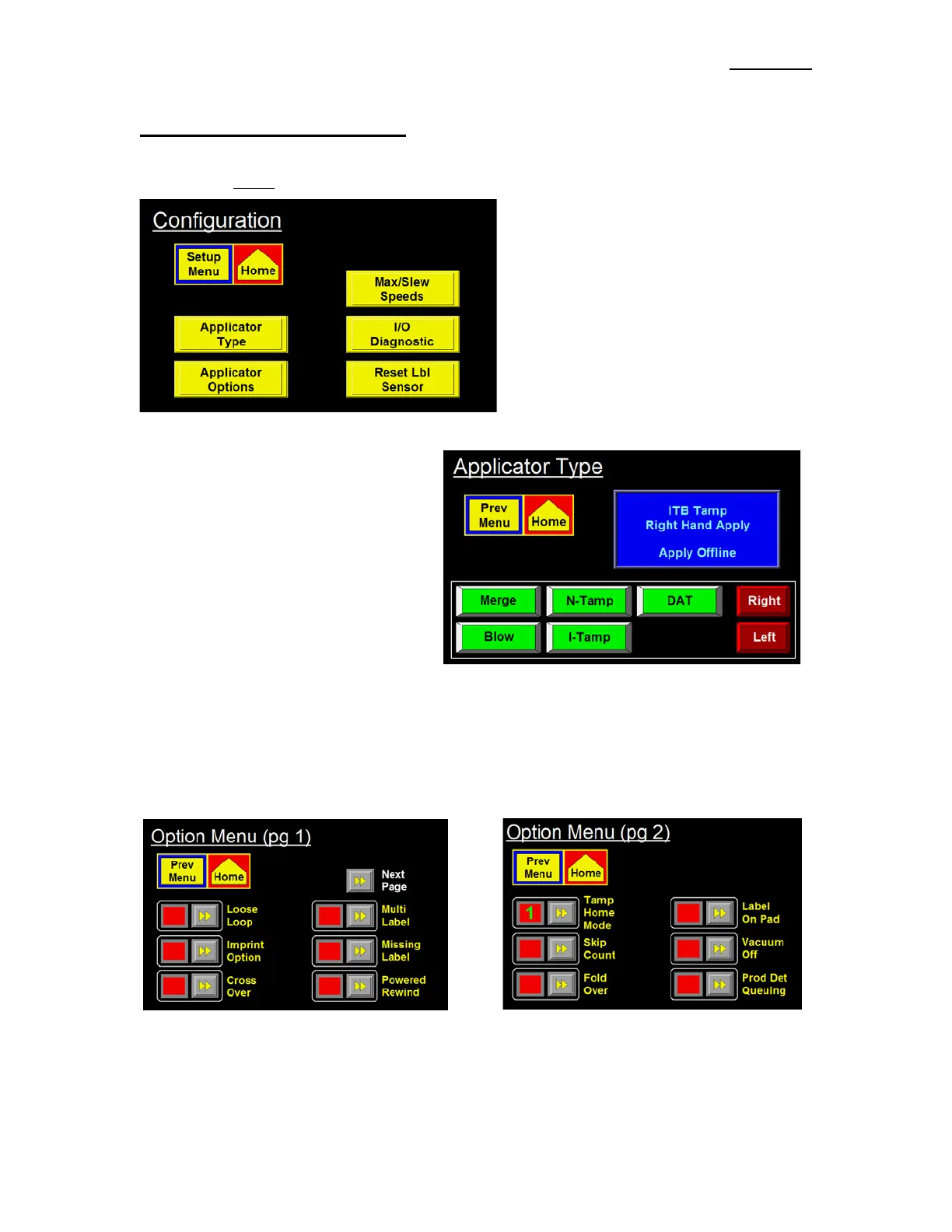

The Configuration Setup Menu is accessed from the Setup Menu by pressing the “Config Menu” key with
the Applicator offline
.
The Configuration Menu provides access to
Applicator: Type Setup, Options, Motion
Parameters, Diagnostics, and the Label Sensor
reset function. The Applicator Setup may be
monitored or changed by accessing the various
submenus.
Applicator Type -The Applicator Type
function allows the operator to choose the
type of application (Air blow, Merge, Tamp,
or DAT) and whether it will be in a Left-Hand
or Right-Hand configuration.
NOTE: If the Apply Hand (Right or Left)
is changed, the user will be forced to cycle
power to the Applicator
There is a Status Box on the right hand side of
the screen that displays the current settings.
Applicator Options –It is here that an operator can look to see if an Option is turned on or not. Pressing
the key will take you into the Option’s Sub-menu so that the operator can toggle it on/off or set specific
parameters pertaining to the Option. At each Option Sub-menu, there is a Help Key that will direct the user
to a Help Screen that will explain the current Option’s compatibility with other Options and Applicator
Types. The Help Screen will also notify the user if turning the current Option on will change the state of
any other Option or Function.
To Next Page
