SEMI-ANNUAL MAINTENANCE
1. Replace the Air Inlet Filter and clean Collection Bowl.
2. Clean inside and outside of Applicator using an industrial vacuum cleaner.
NOTE: Do not use compressed air to blow dust off of the electrical section of the Applicator.
3. Replace Slip Clutch Disk. Clean both friction surfaces.
4. Check Roller Clutch on the Rewind Shaft for correct operation.
5. Examine Pulleys for wear.
6. Perform the monthly maintenance section.

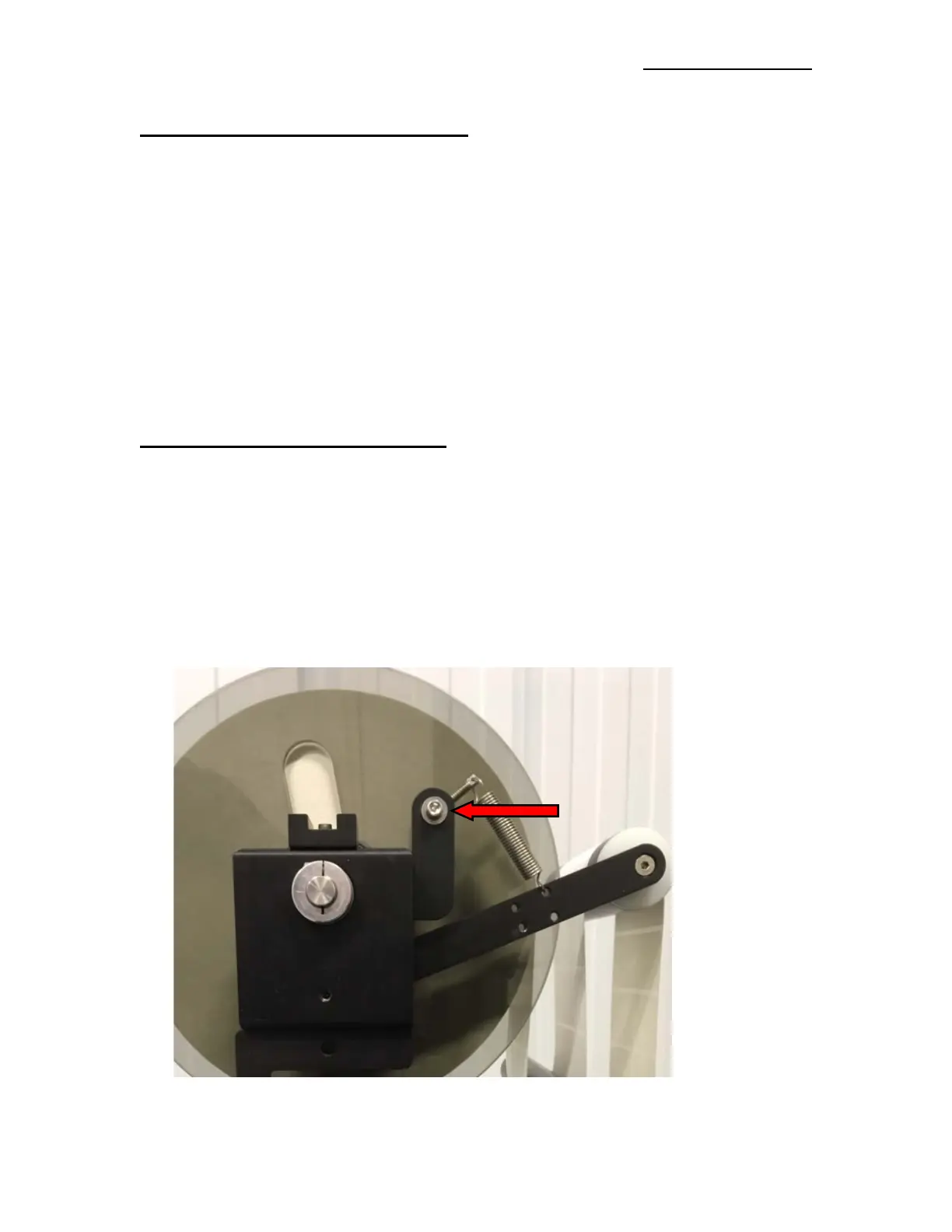

DANCER ARM ADJUSTMENT
The Dancer Arm maintains tension on the label liner and operates the Brake on the Unwind Mandrel when
labels are dispensed. The Spring holding the Dancer Arm should be adjusted so that there is enough
braking force to keep the Unwind Mandrel from continuing to roll after a label feed yet still releases the
Unwind Mandrel when the Applicator is cycled.
1. Loosen the screw going to the Spring Tension Disk.
2. Rotate the Disk to set the proper spring tension.
3. Re-tighten screw.
Tension
To Next Page
