360a DISPLAY
SPECIAL OPTIONS SECTION (cont’d)

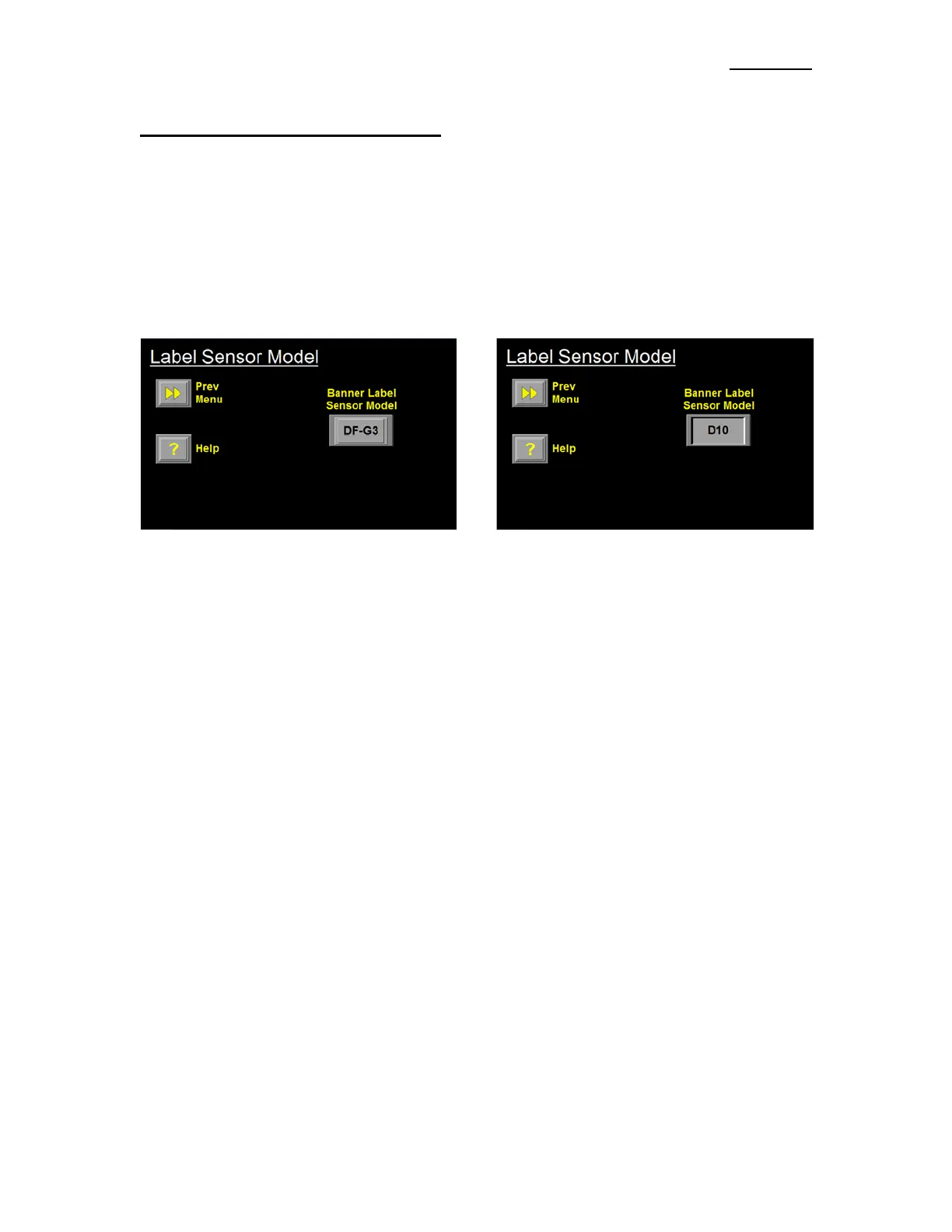

Label Sensor Model – Prior to spring 2016, the 360a Applicator used the Banner D10DNFP, referred to as
D10, Sensor for the standard Label Sensor. In 2016, we began using the Banner DF-G3-ND-2M, referred
to as DF-G3, as a replacement. The teach sequence for these two (2) sensors is not the same therefore the
360a program must send the correct signal pulses based on the sensor inside the Applicator. The Label
Sensor Model setting must match the sensor model inside the Applicator. Once the Label Sensor Model
has been selected, performing a Factory Default of the Applicator will NOT change this setting. A newly
programmed control drive board will set this variable to the DF-G3 setting, therefore if the end user
receives the drive as a part order this setting might have to adjusted once installed in the Applicator for the
first time. Once the Sensor Model has been changed, the Applicator will automatically factory default the
Label Sensor.
