NOTE: If one or both of the output bevel gears
are out of time, the steering rack will lose travel
on the affected side.
12. Fill the lower housing with 12 oz. of 737-0300A
Durina
TM
grease. See Figure 6B.66.
13. Press in the upper ball bearing into the upper
housing. See Figure 6B.67.
14. Press the lower ball bearing into the upper hous-
ing. See Figure 6B.68.
15. Insert the input shaft thought the ball bearings
from the inside of the steering gear box.
See Figure 6B.69.

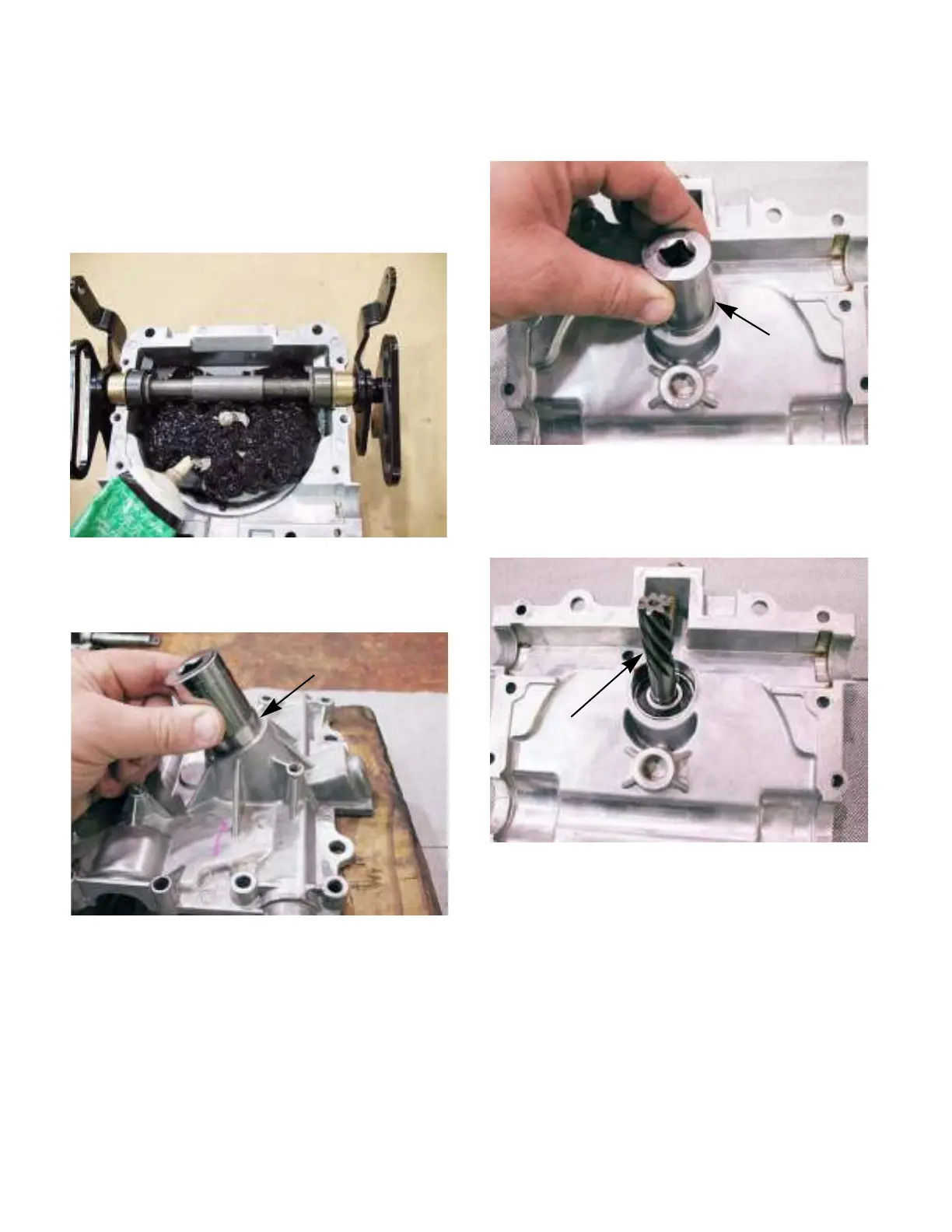

Figure 6B.66
Figure 6B.67
Press in the upper
ball bearing
Figure 6B.68
A socket can
be used to press
in the ball bearing
Figure 6B.69
Insert the
input shaft
