16. Install the snap ring on the input shaft.
See Figure 6B.70.
17. Install the wear block:
17a. Insert the spring into the wear block.
17b. Set the wear block and spring into the
square recess in the upper housing.
See Figure 6B.71.
18. Slide one new bushing onto each side of the
steering rack with the flanges facing the center
of the rack.

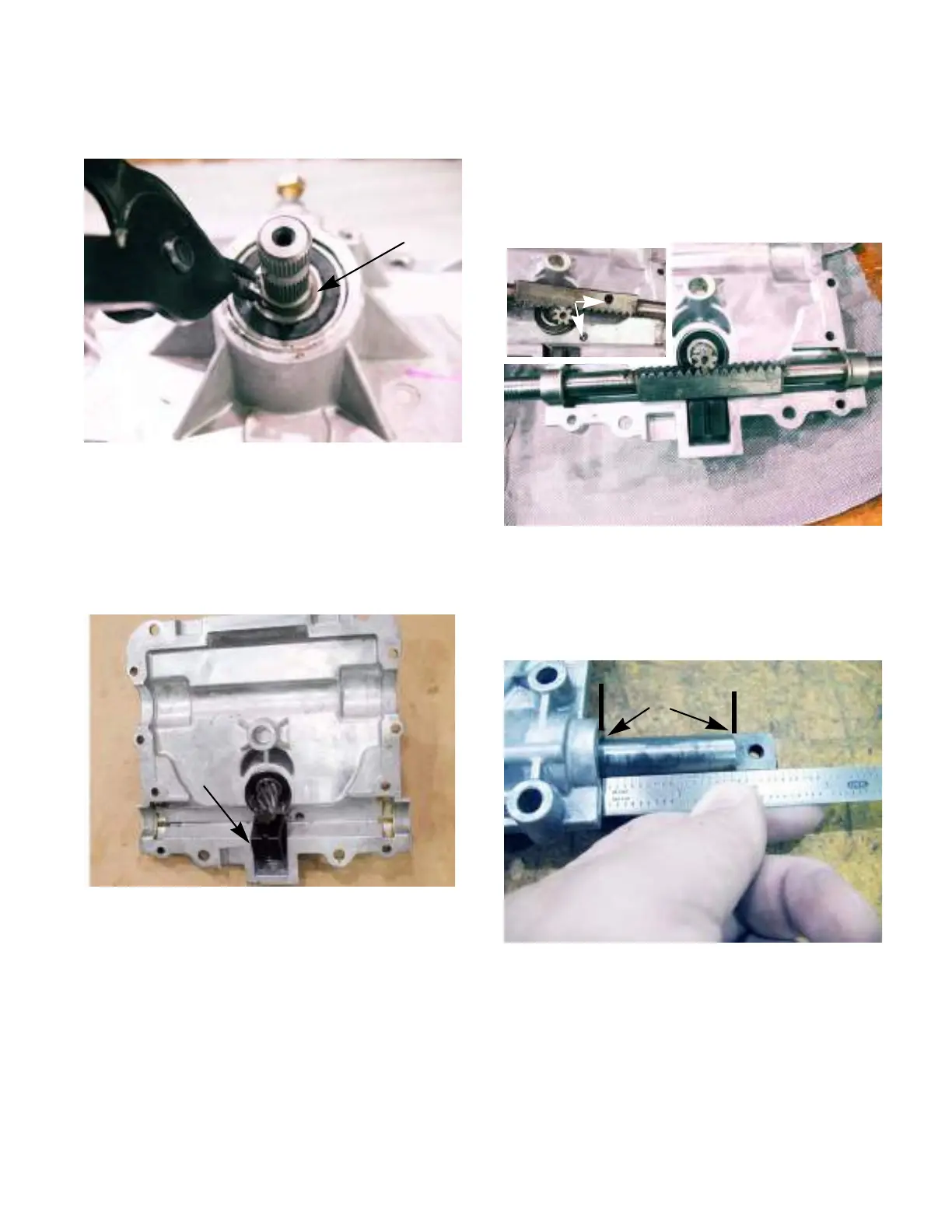

Figure 6B.70
Snap ring
Figure 6B.71
Wear block
19. Set the steering rack into the grove in the upper
housing. Trapping it between the input shaft and
the wear block. See Figure 6B.72.
NOTE: The hole in the steering rack should line
up with the hole in the housing.
See Figure 6B.72 Insert.
20. Adjust the steering rack until the left side (as
installed in the tractor) measures 1.8” from the
case to the shoulder at the end of the shaft.
See Figure 6B.73.
21. Holding the steering rack in place, carefully set
the upper case onto the lower case.
NOTE: The upper case should drop into place.
Do not force it.
Figure 6B.72
Align
holes
Figure 6B.73
1.8”
