RZT-S Zero
12
Seat
To remove the seat:
NOTE: The seat and seat bracket must be removed
to remove the seat box top plate or the front
battery bracket.
1. Slide the seat all the way to the rear most position.
NOTE: If the seat is not all the way back, the seat
will hit the front battery cover when the seat
is tipped forward.
2. Tip the seat forward.
3. Pull the excess reverse switch harness from the slot
in the slot in the seat bracket.
See Figure 2.17.
4. Disconnect the seat switch.
5. Pull the seat switch harness out of the seat bracket.
6. Remove the two shoulder bolts and nuts the seat
bracket pivots on using a 5/8” wrench and a 1/2”
wrench.
7. Install the seat be following the previous steps in
reverse order.
NOTE: When tightening the shoulder bolts and
nuts, make sure the shoulders are in the
holes of the seat bracket.
NOTE: Be sure to push the excess wire from the wire harness into the seat box hole before continuing.
8. Test drive the mower in a safe area before returning it to service.

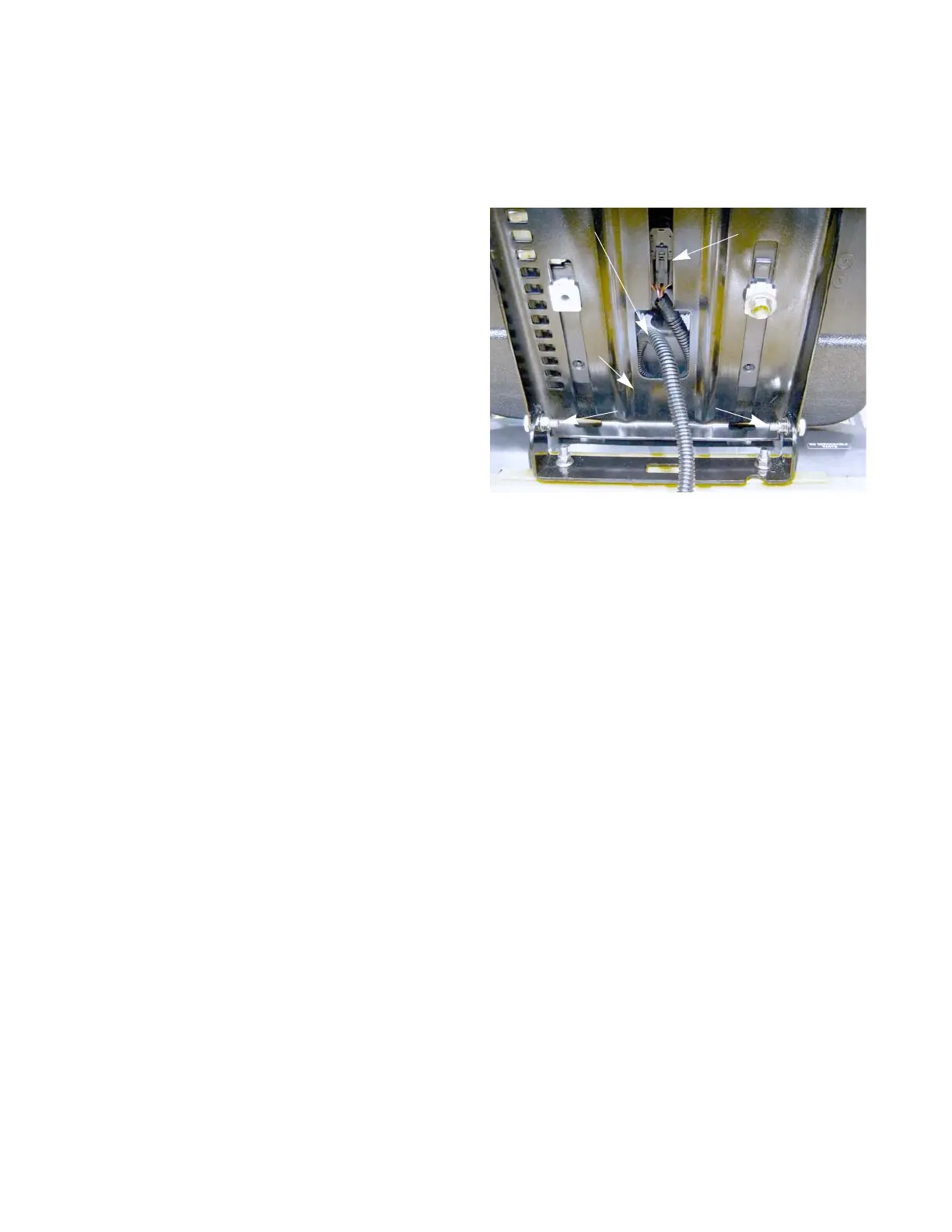

Figure 2.17
Seat switch harness
Seat switch
Seat bracket
Shoulder bolts
