Brake shaft assembly
To remove/replace the brake shaft:.
1. Lift and safely support the rear of the mower.
2. If the parking brake is set, release it.
3. Disconnect the brake shaft return spring.
See Figure 3.11.
4. Disconnect the three rods that attach to the brake
shaft by removing the bowtie clips.
See Figure 3.12.
5. Remove the E-rings from the ends of the brake
shaft.
See Figure 3.13.
6. Slide the brake shaft to the right, enough to clear
the brake shaft bushing.
7. maneuver the shaft out of the mower.
8. Install the shaft by following the previous steps in
reverse order.
9. Test drive the mower in a safe area before returning
it to service.

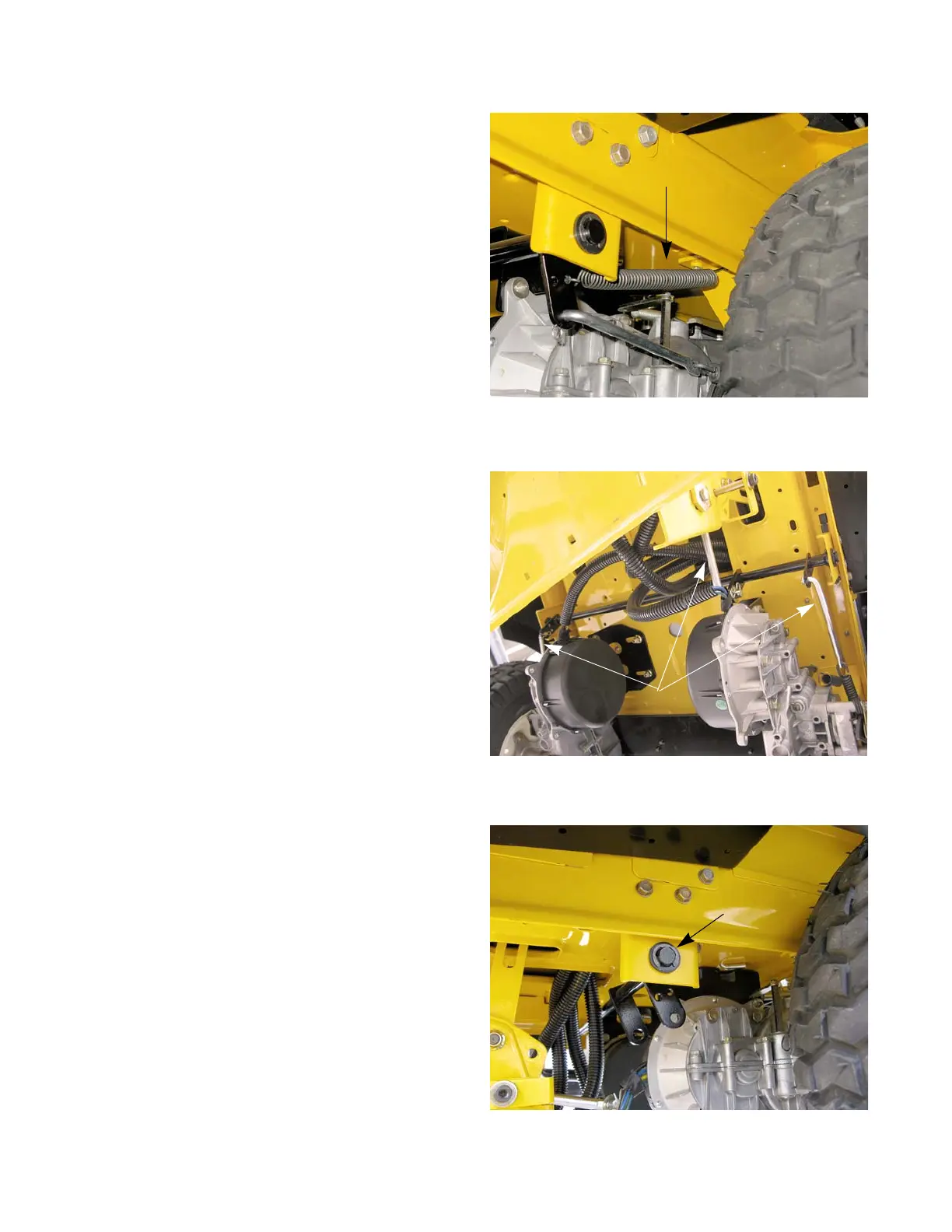

Figure 3.11
Brake shaft return spring
Figure 3.12
Rods
Figure 3.13
E-ring
