Body
5
Floor pan
Removing the floor pan will provide access to the steering
gears and the throttle position sensor.
To remove/replace the floor pan:

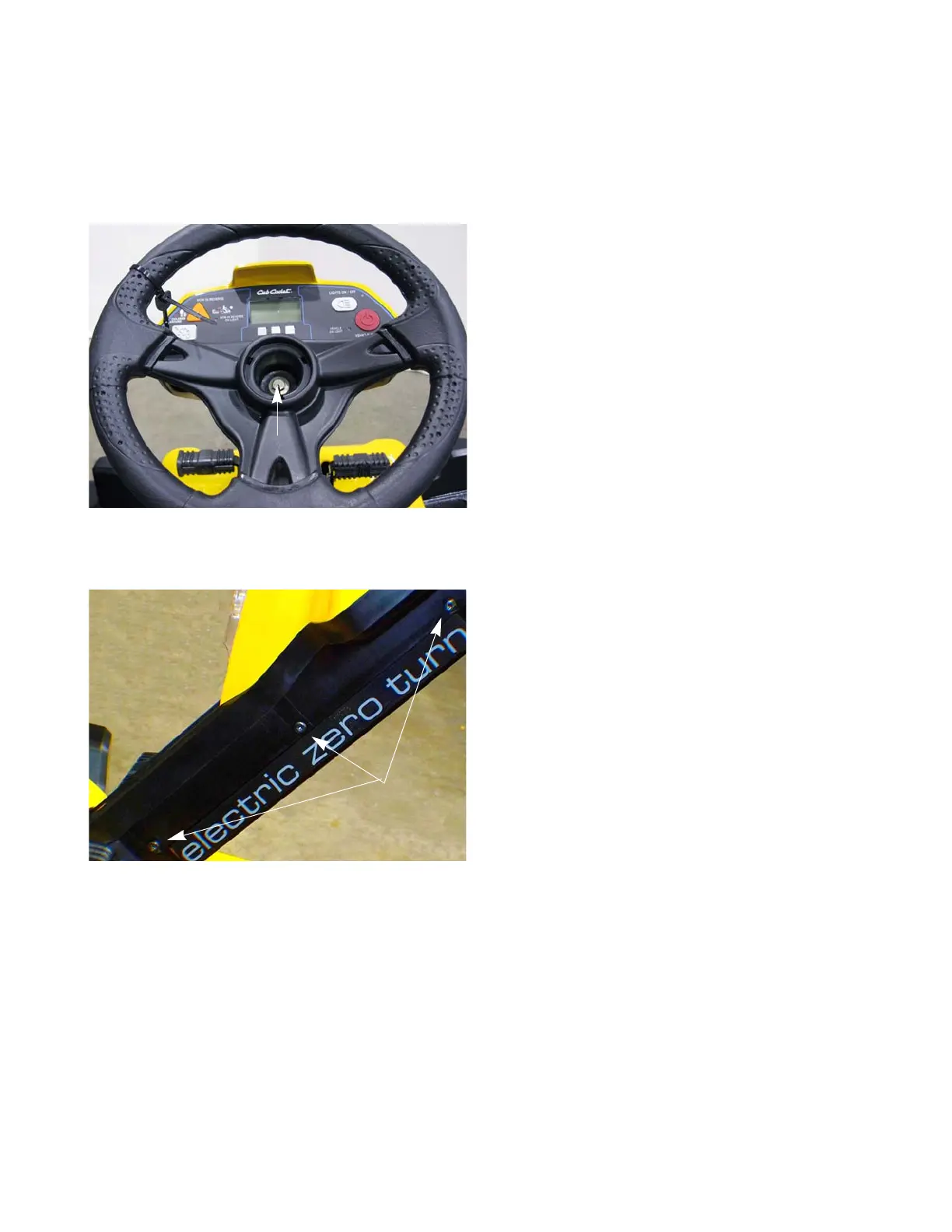

1. Remove the steering wheel:
1a. Gently pry the cover off of the steering wheel.
1b. Remove the screw and washer that secures the
steering wheel to the steering shaft using a 1/2”
wrench.
See Figure 2.1.
1c. Lift the steering wheel off of the steering shaft.
2. Remove the upper steering column cover:
2a. Remove the six screws that hold the upper
cover to the steering column using a T-30 torx
driver.
See Figure 2.2.
2b. Unplug the LED headlight.
2c. Unplug both of the VCM harness connections.
CHAPTER 2: BODY
