Cub Cadet RZT-S Zero Shop Manual

RZT-S Zero
6
3. Remove the brake pedal: See Figure 2.3.
3a. Remove the screw that secures the brake
pedal to the pedal shaft bell crank using a 1/2”
wrench.
3b. Unhook the brake pedal from the bell crank.
4. Remove the screw that secures the reverse pedal
using a 1/2” wrench.
See Figure 2.4.
5. Remove the forward drive pedal: See Figure 2.5.
5a. Remove the screw that secures the drive
pedal to the pedal shaft bell crank using a 1/2”
wrench.
5b. Unhook the drive pedal from the bell crank.

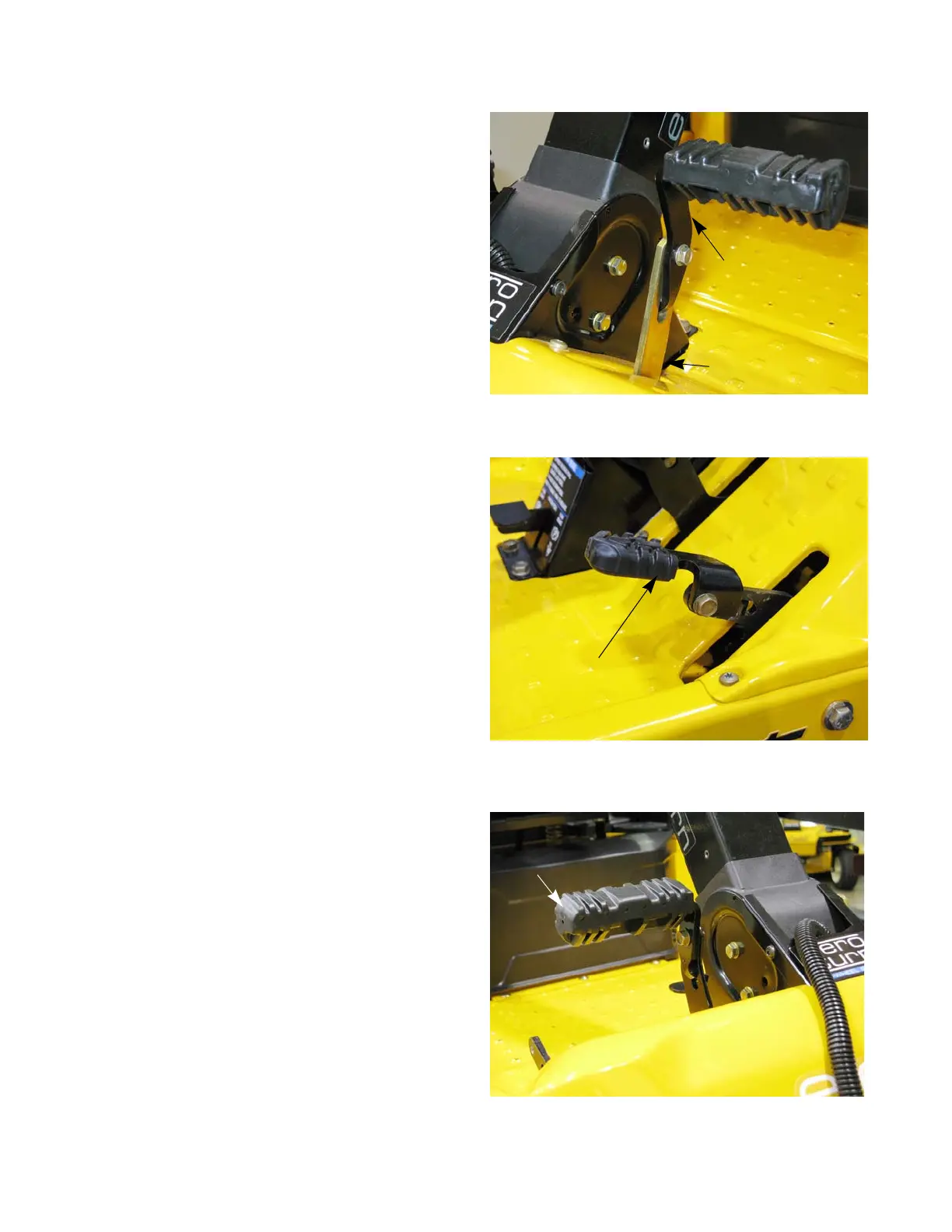

Figure 2.3
Brake pedal
Pedal shaft bell crank
Figure 2.4
Reverse pedal
Figure 2.5
Forward drive pedal
