Decks and Lift Shaft
129
Cutting decks
The RZT-S Zero comes with a 42” floating deck. The deck is made of 13-gauge stamped steel. The deck is NOT
a quick release deck and is not intended to be removed as part of normal service.
To remove the deck:
NOTE: The deck should only be remove to:
• Replace the deck shell
• Remove/replace the deck lift shaft.
1. Disconnect the battery pack’s positive lead from the
contactor assembly by following the procedures
described in the left pod section of Chapter 2: Body.
2. Lower the deck into the lowest position using the
deck lift handle.
3. Remove the seat box assembly top plate by following
the procedures described in Chapter 2: Body
4. Slide the front (4
th
) battery out of the seat box assem-
bly enough gain full access to the hole in the frame
the motor harnesses pass through.
See Figure 7.1.
5. Disconnect the deck motors’ high current and hall
effect harnesses from the control panel.
See Figure 7.2.
NOTE: Marking the connectors with a paint marker will
make re-assembly easier.
6. Fish the harnesses out of the mower.

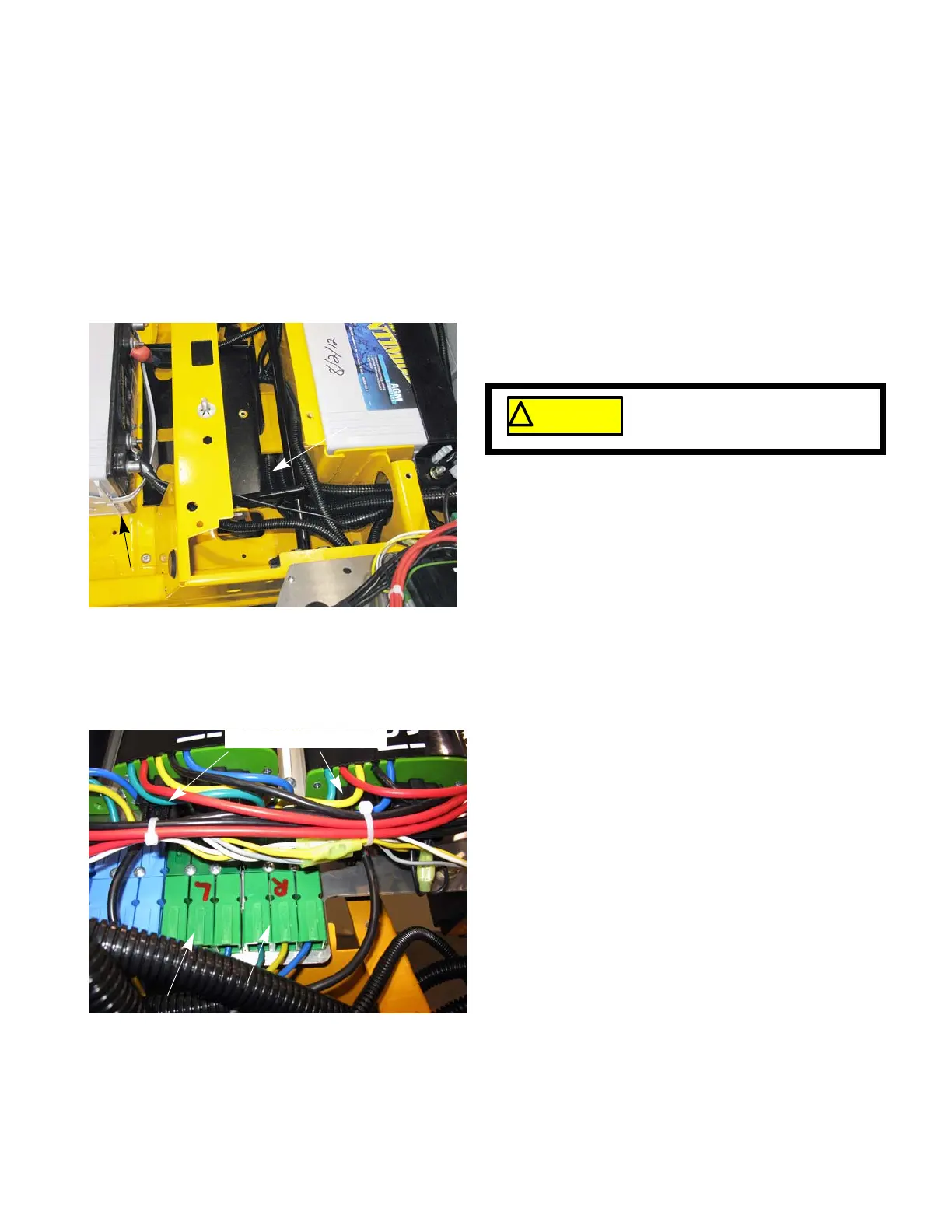

Figure 7.1
Front battery
Hole in frame
The RZT-S Zero is equipped with a
48 volt system. Removing the pods
will expose the high voltage wiring.
Figure 7.2
High current connectors
Hall effect connectors
CHAPTER 7: DECKS AND LIFT SHAFT
