Electrical System
67
Control panel
NOTE: The control panel is serviced as one assembly during the warranty period. Outside of warranty, the
individual controllers can be replaced.
NOTE: The contactor assembly is not serviceable and should not be opened. This would void the warranty.
To remove/replace a control panel:

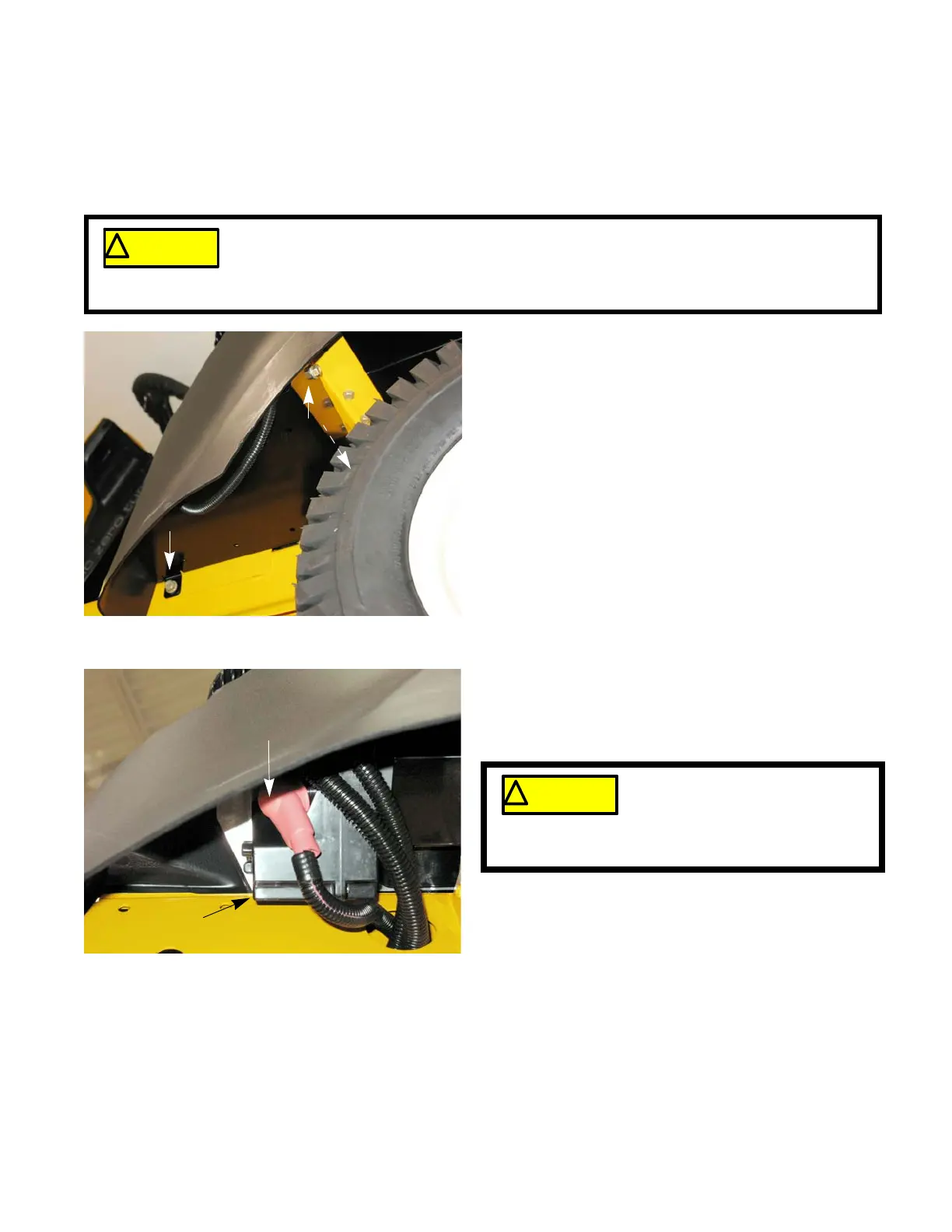

1. Disconnect the battery pack’s positive lead from the
contactor assembly:
1a. Remove the three screws that hold the left
access cover in place using a 1/2” wrench.
See Figure 5.19.
1b. Disconnect the battery pack’s positive lead from
the contactor assembly using a 7/16” wrench.
See Figure 5.20.
Before disconnecting any electrical component, take precautions to prevent the component
or the wires attached to it from shorting out. The most effective means of doing this is to dis-
connect the positive lead of the battery pack from the contactor assembly.
IMPORTANT: Do not return an unsafe mower to service.
Figure 5.20
Contactor assembly
Positive lead
The battery pack’s positive lead is
still hot. Take measures, such as
taping up the cable lug with electri-
cal tape, to prevent the cable end from making
contact with any metal surface on the mower
To Next Page
