RZT-S Zero
70
Controllers

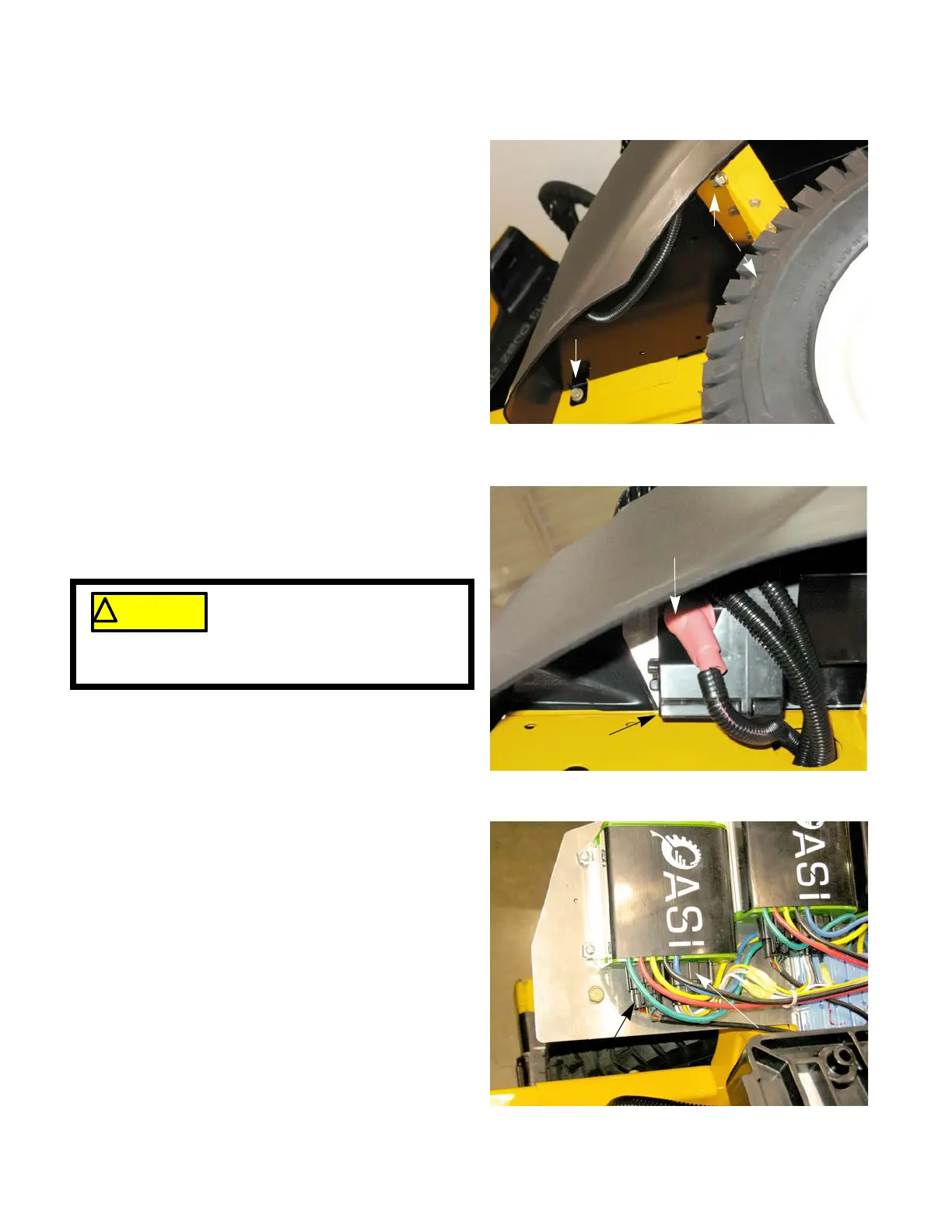

To remove/replace a controller
NOTE: The control panel is serviced as one assem-
bly during the warranty period. Outside of
warranty, the individual controllers can be
replaced.
NOTE: The contactor assembly is not serviceable
and should not be opened. This would void
the warranty.
1. Disconnect the battery pack’s positive lead from the
contactor assembly:
1a. Remove the three screws that hold the left
access cover in place using a 1/2” wrench.
See Figure 5.25.
1b. Disconnect the battery pack’s positive lead
from the contactor assembly using a 7/16”
wrench.
See Figure 5.26.
2. Remove the left pod by following the procedures
described in Chapter 2: Body.
3. Disconnect the hall effect and communications con-
nectors from the controller to be removed.
See Figure 5.27.
Figure 5.26
Contactor assembly
Positive lead
The battery pack’s positive lead is
still hot. Take measures, such as
taping up the cable lug with electri-
cal tape, to prevent the cable end from making
contact with any metal surface on the mower
Figure 5.27
Hall effect connector
Communications connector
