Right pod
Remove the right pod to gain access to the PTO and key
switches.
To remove/replace the right side pod:
1. Disconnect the battery pack’s positive lead from the
contactor assembly by following the procedures
described in the left pod section of this chapter.
2. Remove the rear battery cover by following the pro-
cedures described in Chapter 6: Battery Pack and
Charger.
3. Remove the two screws, indicated by the arrows in
Figure 2.14, from the inboard side of the pod using a
T-30 torx driver.
4. Remove the screw from the front of the pod using a
T-30 torx driver.
See Figure 2.15.
5. Remove the two screws, indicated by the arrows in
Figure 2.16, from the underside of the right pod using
a 3/8” wrench.
6. Lift the pod enough to gain access to the PTO and
key switches.
7. Disconnect the key switch.
8. Disconnect the PTO switch.
9. Lift the pod off of the mower.
10. Install the pod by following the previous steps in
reverse order.
11. Test drive the mower in a safe area before returning
it to service.

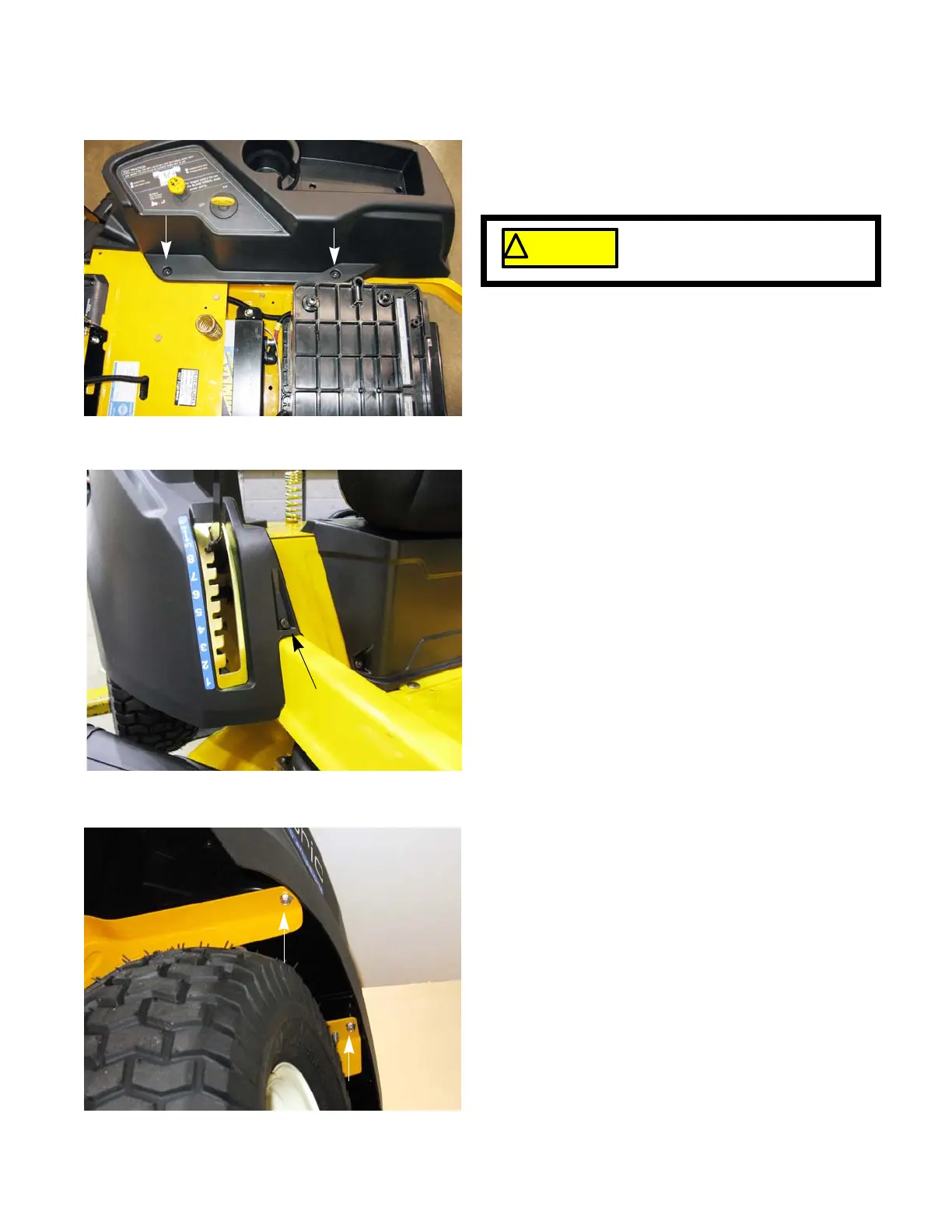

Figure 2.14
Figure 2.15
Screw
The RZT-S Zero is equipped with a
48 volt system. Removing the pods
will expose the high voltage wiring.
