Cub Cadet RZT-S Zero Shop Manual

RZT-S Zero
8
Left pod
Remove the left pod to gain access to the control panel
and the charger door switch.
To remove/replace the left pod:
NOTE: The control panel is nested inside the left
pod.
1. Disconnect the battery pack’s positive lead from the
contactor assembly:
1a. Remove the three screws, indicated by the
arrows in Figure 2.7, that hold the left access
cover in place using a 1/2” wrench.
1b. Disconnect the battery pack’s positive lead
from the contactor assembly using a 7/16”
wrench.
See Figure 2.8.
.

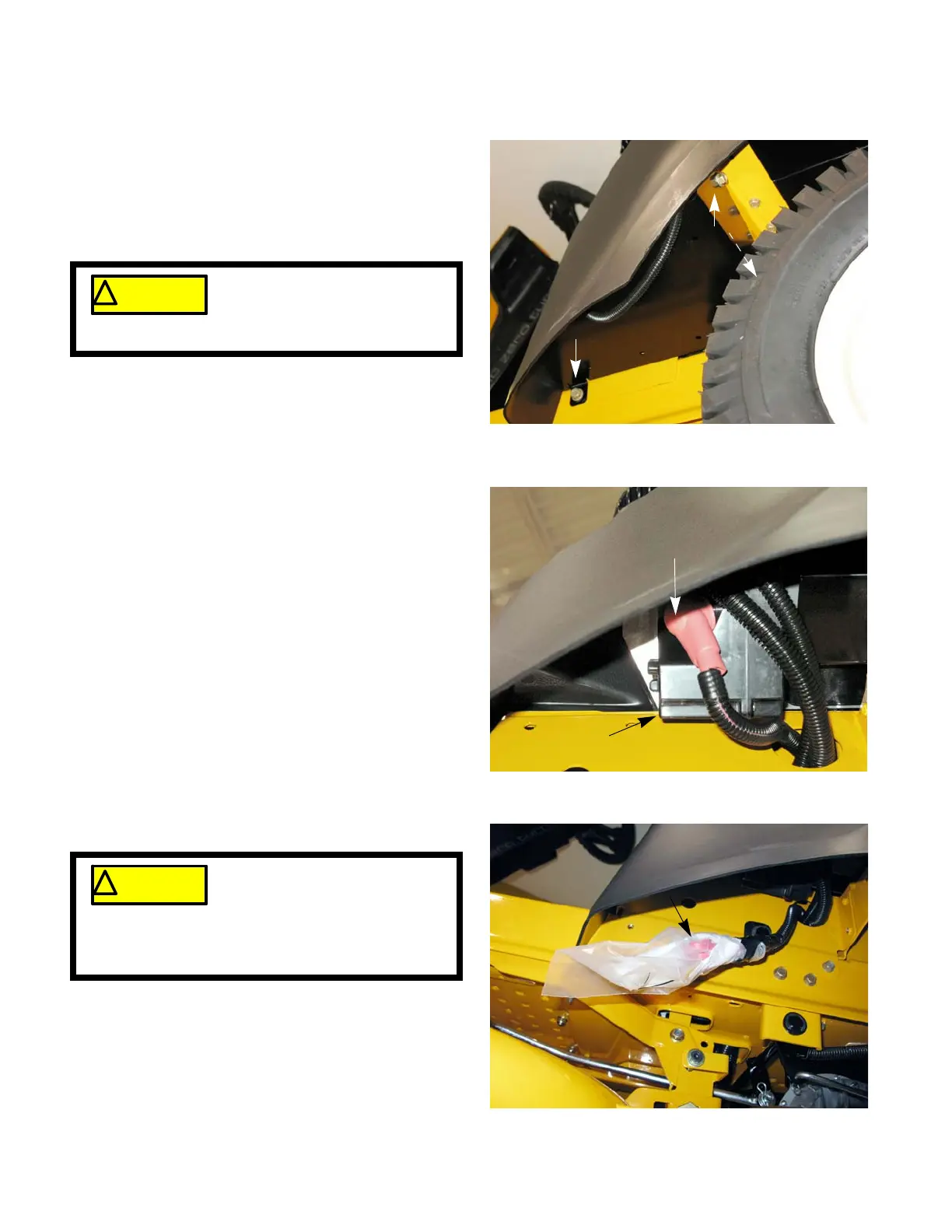

Figure 2.7
! CAUTION! CAUTION
The RZT-S Zero is equipped with
a 48 volt system. Removing the
pods will expose the high voltage
wiring.
Figure 2.8
Contactor assembly
Positive lead
Figure 2.9
Positive lead
! CAUTION! CAUTION
The battery pack’s positive lead is
still hot. Take measures, such as
taping up the cable lug with electri-
cal tape or a plastic bag, to prevent the cable
end from making contact with any metal sur-
face on the mower. See Figure 2.9.
