Brakes and Drive System
27
14. Place a new brake puck into the recess in the trans-
mission. Use a piece of scotch tape to hold it in place.
15. Slide the brake rotor in place, shoulder out.

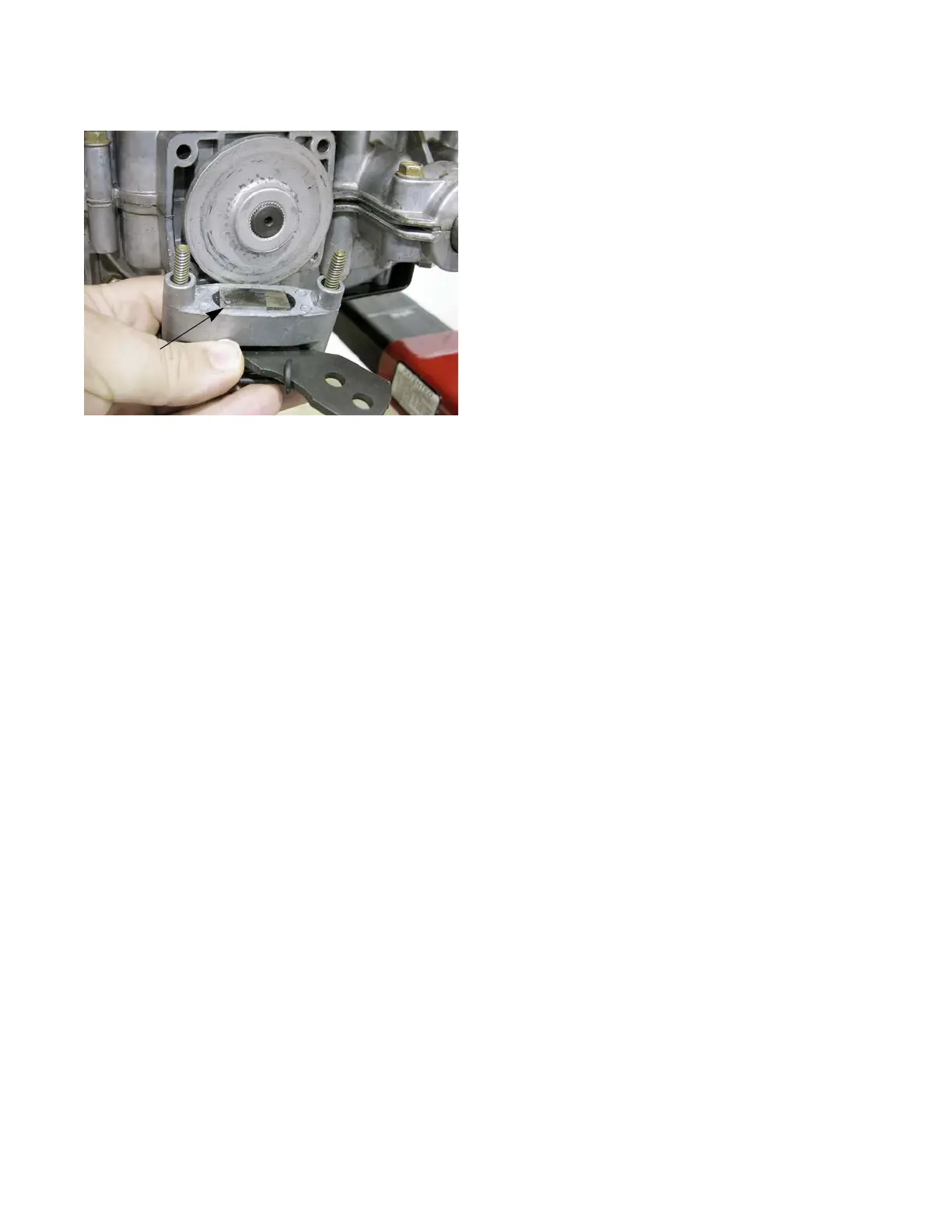

16. Place a new puck into the caliper.
NOTE: A piece of scotch tape may be used to hold the
new brake pucks in place for assembly. The tape
will grind away when the brakes are applied.
See Figure 3.10.
17. Mount the brake caliper to the transmission. Apply a
small amount of releasable thread locking compound
such as Loctite® 242 (blue) to the mounting bolts and
tighten to a torque of 80 - 120 in lbs (9 - 13.5 Nm).
18. Reconnect the brake rod and spring.
19. Adjust the brakes as described in the previous sec-
tion of this chapter.
20. Repeat steps 4-19 on the other side.
21. When both sides are completed, take the mower off of the jack stands.
22. Open the by-pass valves and check the parking brake before returning the mower to service.
• With the brakes released, the mower should have electric motor drag when it is pushed.
NOTE: When the ignition key is “ON” the drag will be stiff. When the ignition key is “OFF” there will be very lit-
tle drag.
• With the brakes engaged, the wheels should slide before they rotate when the mower is pushed.
23. Test drive the mower in a safe area before returning it to service.
