RZT-S Zero
26

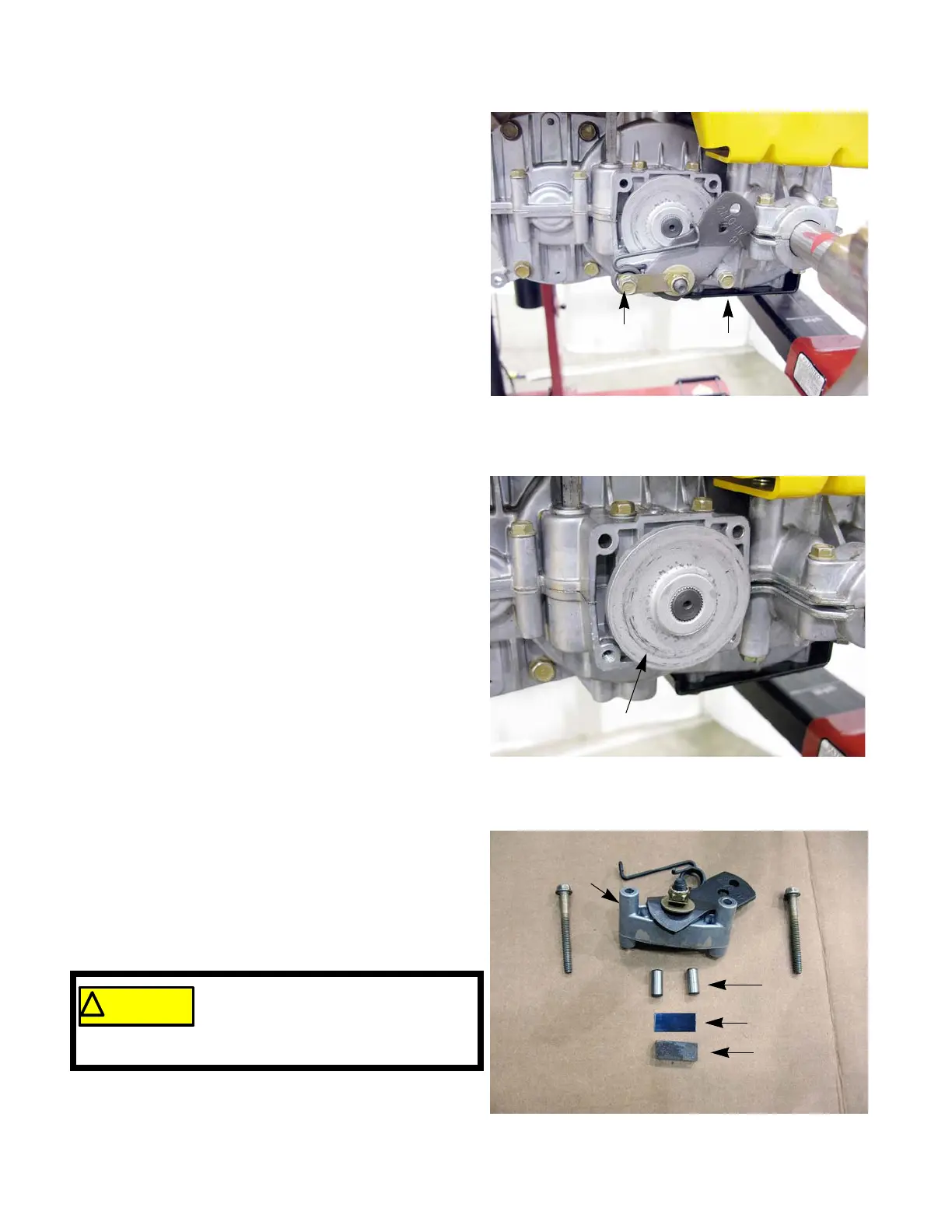

7. Remove the caliper mounting screws using a 3/8”
wrench.
See Figure 3.7.
8. The outboard brake puck should fall out as the
brake caliper is removed. If it did not, it can be
removed now.
9. Slide the brake rotor off to reach the inboard brake
puck.
See Figure 3.8.
10. With the caliper on a work bench, remove the brake
puck, backing plate and the two brake pins.
See Figure 3.9.
11. Check for free movement of the brake pins. A dry
lubricant can be used on the brake pins sparingly.
12. Slide the brake pins into the caliper.
13. Place the backing plate in the caliper.
Figure 3.7
Mounting screws
Figure 3.9
Brake caliper
Brake pins
Backing plate
Brake puck
Never put grease or anti-seize on
brake pins. It can migrate to the brake
pucks, preventing the braking action
of the pucks.
