Decks and Lift Shaft
113
Spindle overhaul
To rebuild a spindle:
1. Remove the spindle by following the procedures
described in the spindle removal section of this chap-
ter.
2. Remove the spindle pulley, spacer and washer using
an impact wrench and a 15/16” socket.
3. Slide the spindle shaft and pulley out of the spindle
housing. See Figure 7.19.
4. Remove the upper bearing.
NOTE: The spindle bearings are sealed ball bearings. The
bearing should have a slip fit in the housing. If the
bearing does not slide out of the housing, it can be
driven out of the housing using a drift or a punch.
See Figure 7.20.
5. Remove the spacer. See Figure 7.21.

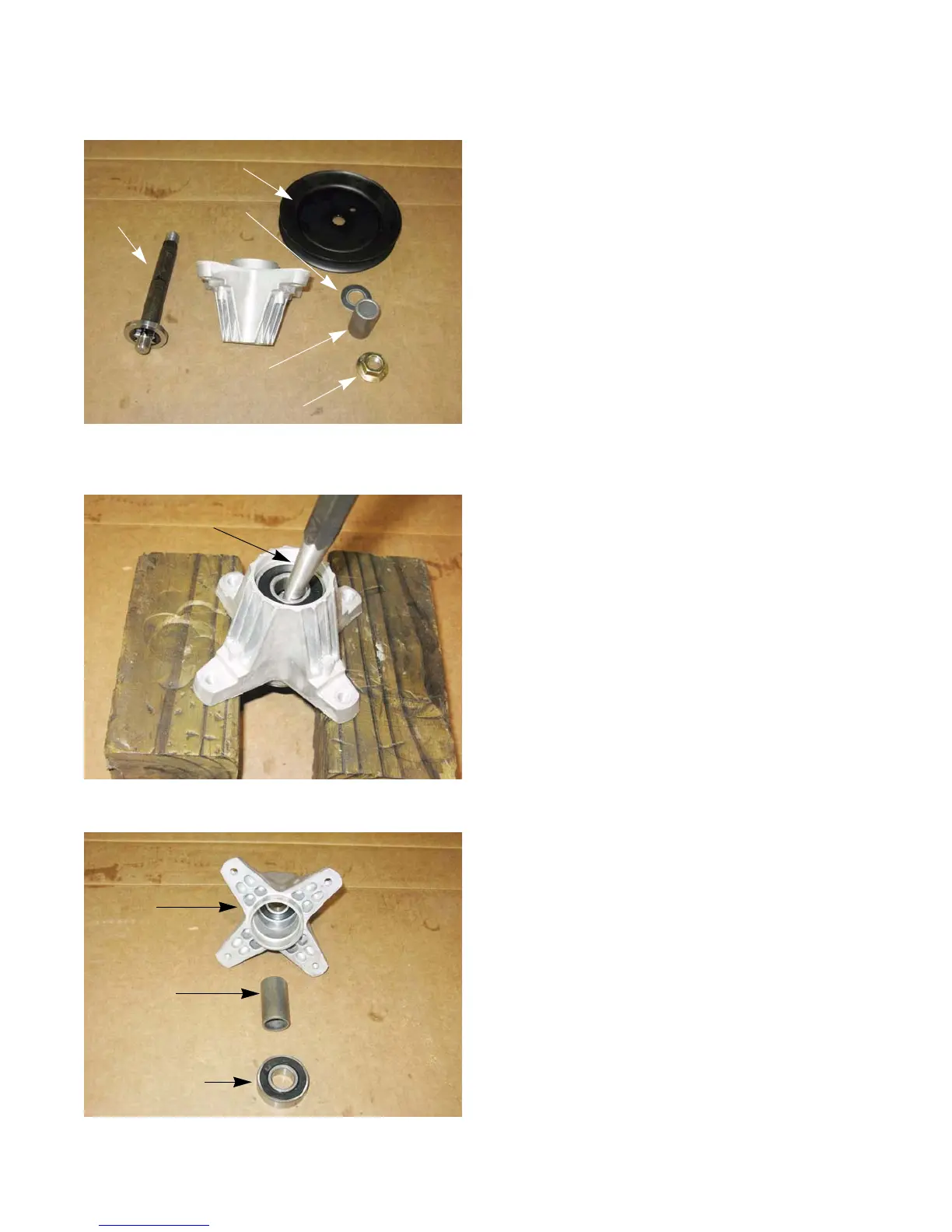

Figure 7.19
Shaft
Pulley
Washer
Spacer
Nut
Figure 7.20
Drift
Figure 7.21
Upper bearing
Spacer
Housing
