Cub Cadet RZT-S Professional Shop Manual

Electrical System
69

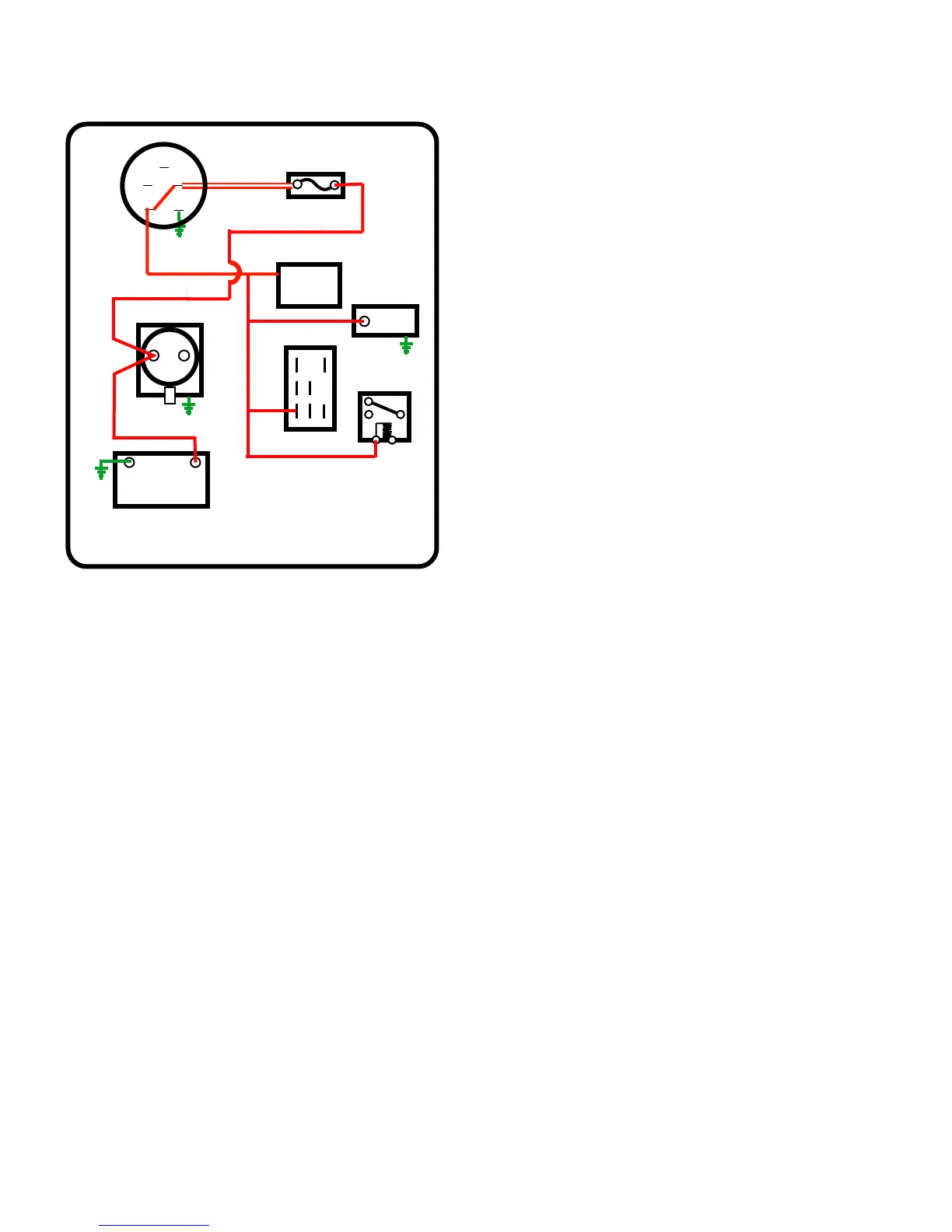

Run Circuit
With the key switch in the RUN position, the L terminal
sends power to:
• the Afterfire Solenoid
• the windings of the PTO Relay
• the PTO Switch C-COM terminal
• the sYstem Monitor
See Figure 7.12.
NOTE: This is identical to what happens with the key in
the START position, except that the circuit that
actually spins the starter motor is not energized.
3TARTER3OLENOID
"ATTERY
.%'
0/3
&USE
'RND
'ROUND
'ROUND
04/3WITCH
#/-
./
.#
3YSTEM
-ONITOR
04/2ELAY
!T2EST
!FTERFIRE
3OLENOID
'ROUND
!
"
#
3
-
"
,
'
Figure 7.12
