RZT-S
30
Drive belt
To remove/replace the drive belt:
NOTE: If a drive belt fails prematurely, find and cor-
rect the cause of the failure.
1. Remove the deck as described in Chapter 7: Cut-
ting Decks and Lift Shaft.
2. Lift and safely support the rear of the mower.
3. Remove the battery. See Figure 4.16.
4. Remove the nuts that hold the right belt guard to the
frame using a 7/16” wrench. See Figure 4.17.
5. Remove the right belt guard.
6. Remove the nuts that hold the left belt guard to the
frame using a 7/16” wrench.
NOTE: The front nut on the left belt guide will be
inside the seat box, under the harness.
7. Remove the left belt guard.

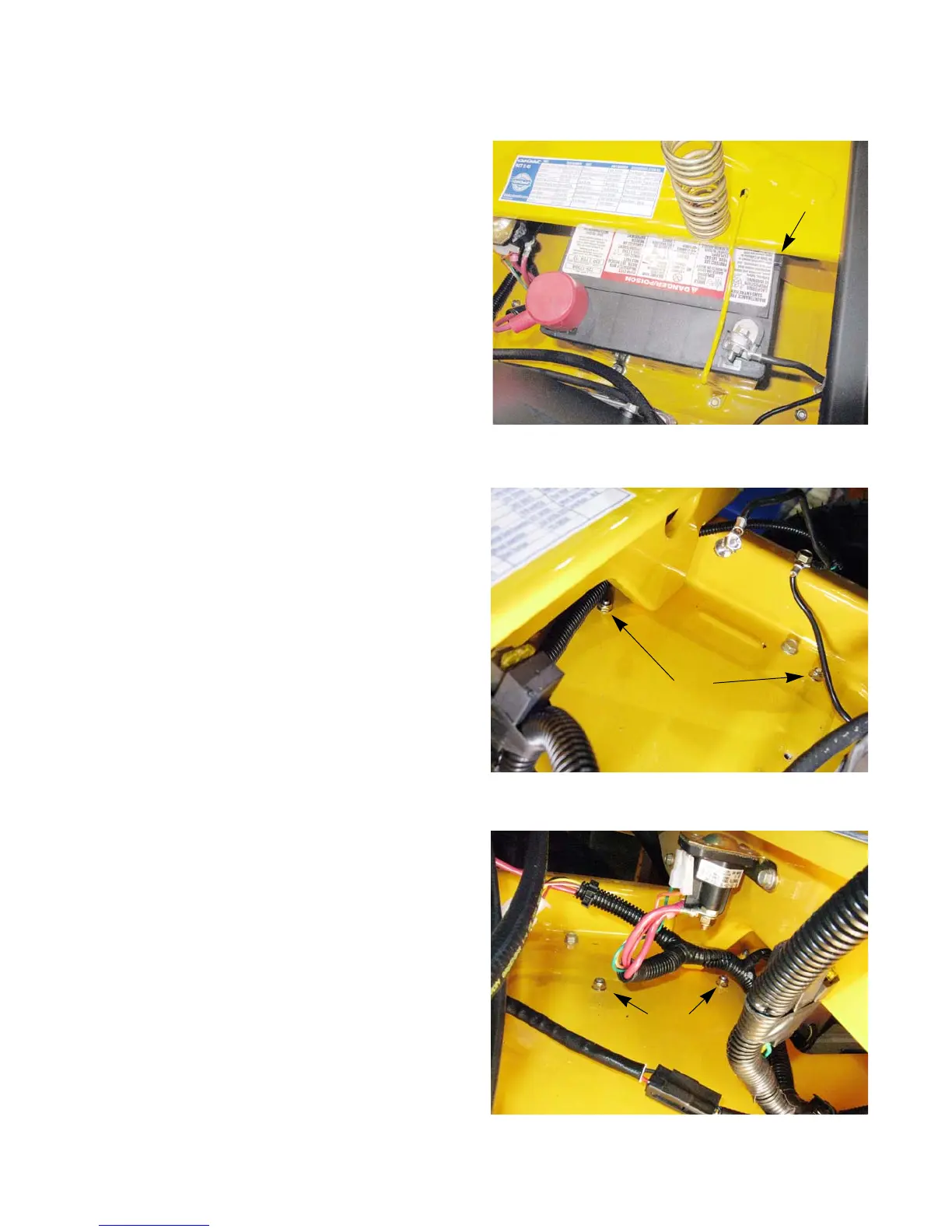

Figure 4.16
Battery
Figure 4.17
Nuts
Figure 4.18
Nuts
