Cub Cadet RZT-S Professional Shop Manual

Z-Force-S
18
Right fender
To remove/replace the right fender:
1. Remove the yellow throttle lever using a #1 phillips
screwdriver. See Figure 3.9.
2. Disconnect the throttle lever assembly from the right
fender using a T-30 torx driver. See Figure 3.9.
3. Remove the two screws, indicated by the arrows in
Figure 3.10, from the inboard side of the fender
using a T-27 torx driver.
4. Remove the screw from the front of the fender using
a T-27 torx driver. See Figure 3.11.
5. Remove the deck lift lever grip.

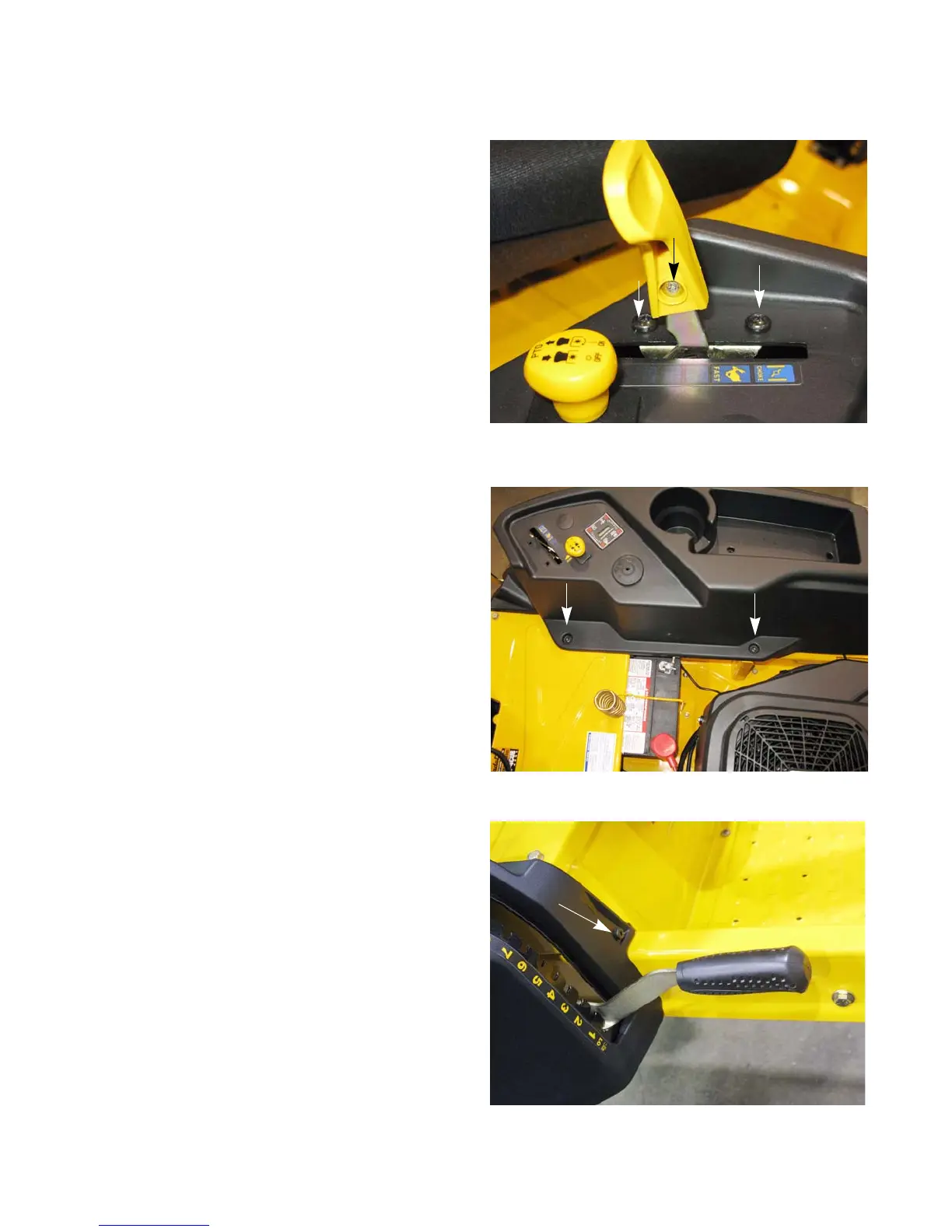

Figure 3.9
Figure 3.10
Figure 3.11
Screw
