RZT-S
12
Roll over valve vent
To remove the roll over valve:
1. Remove the left fender by following the procedures
described in Chapter 3: Body.
2. Disconnect the vent hose. See Figure 2.13.
NOTE: The vent hose will have a red trace.
3. Gently pry the roll over valve out of the fuel tank.
See Figure 2.14.
4. Inspect the rubber grommet, replace if damaged.
To install the roll over valve:
1. With the grommet on the roll over valve, install the
roll over valve by pressing it into the opening in the
tank.
2. Install the vacuum line.
3. Install the left fender.
4. Test run the engine in a safe area before returning
to service.

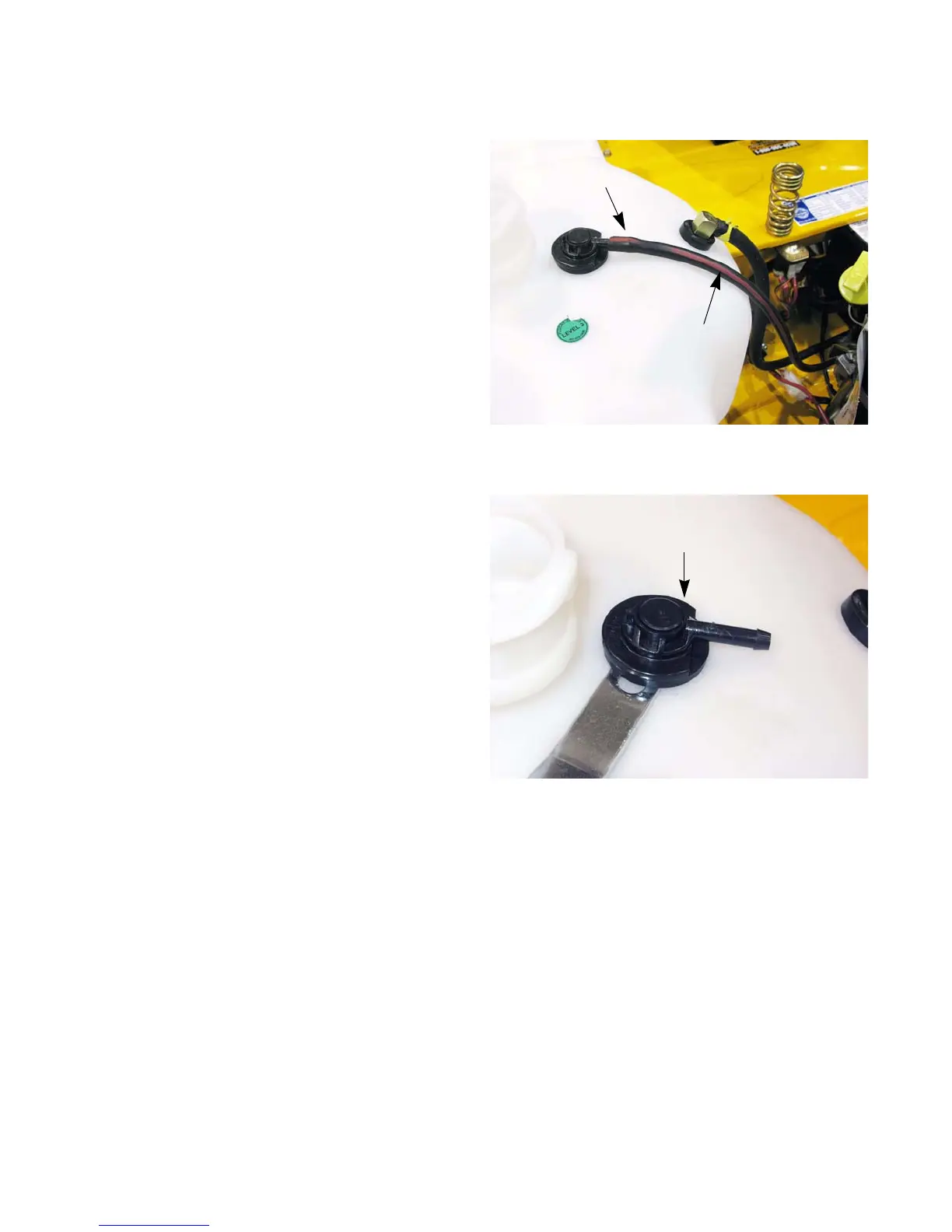

Figure 2.13
Vent hose
Red trace
Figure 2.14
Roll over valve
