Body
15
Floor pan
To remove/replace the floor pan:
1. Remove the steering wheel:
1a. Turn the steering wheel so that the wheels are
pointing straight ahead.
1b. Gently pry the cover off of the steering wheel.
1c. Remove the screw and washer that secures the
steering wheel to the steering shaft using a 1/2”
wrench. See Figure 3.1.
1d. Lift the steering wheel off of the steering shaft.
2. Remove the brake pedal: See Figure 3.2.
2a. Remove the screw that secures the brake pedal
to the pedal shaft bell crank using a 1/2”
wrench.
2b. Unhook the brake pedal from the bell crank.

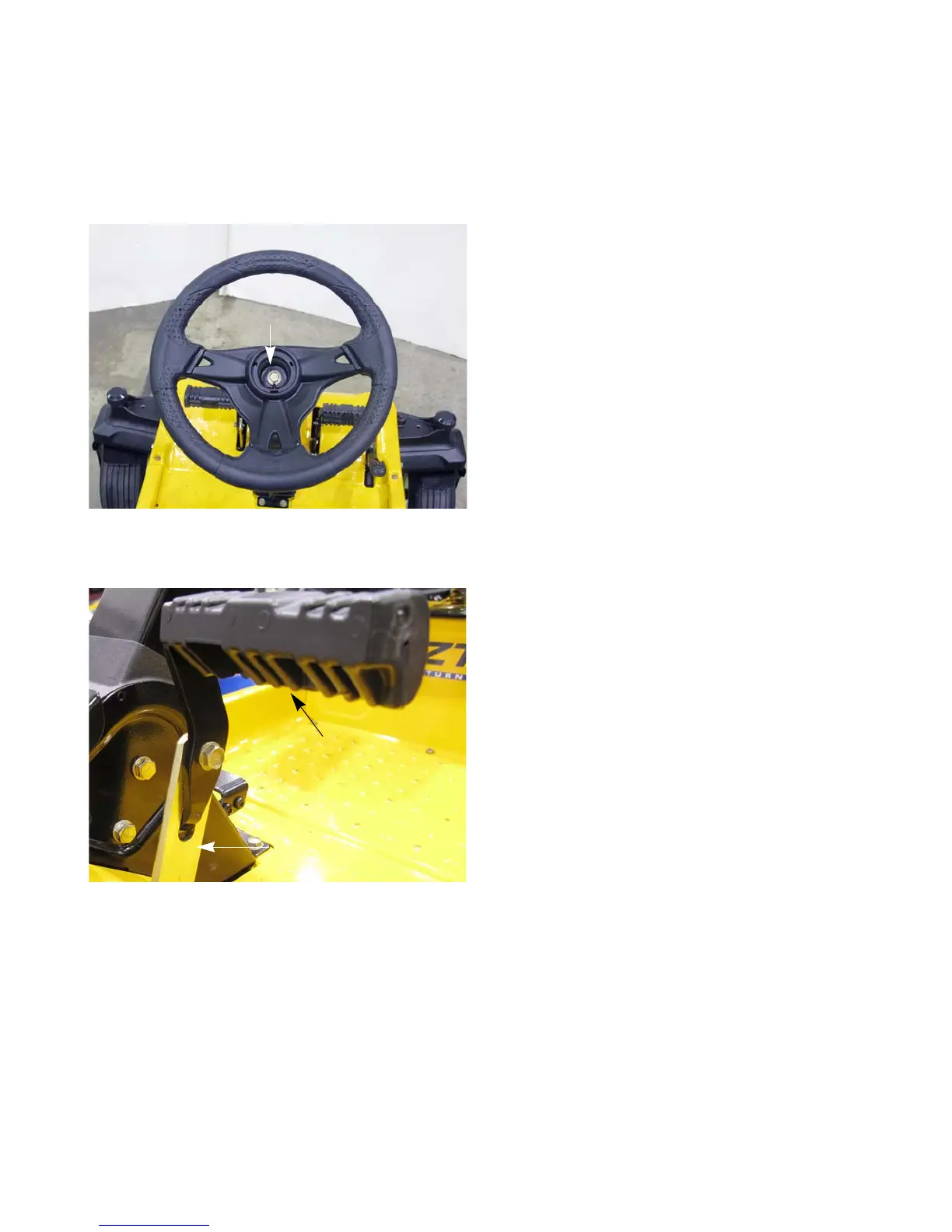

Figure 3.1
Screw
Figure 3.2
Brake pedal
Pedal shaft bell crank
CHAPTER 3: BODY
