Z-Force-S
16
3. Remove the reverse pedal using a pair of 7/16”
wrenches. See Figure 3.3.
4. Remove the forward drive pedal: See Figure 3.4.
4a. Remove the screw that secures the drive
pedal to the pedal shaft bell crank using a 1/2”
wrench.
4b. Unhook the drive pedal from the bell crank.
5. Remove the lower steering column cover by remov-
ing the two screws, indicated by the arrows in Fig-
ure 3.4, using a T-30 torx driver.
6. Remove the nine screws that hold the floor pan to
the frame using a T-30 torx driver.
7. Lift the floor pan off of the mower.
8. Install the floor pan by reversing the previous steps.
NOTE: Confirm that all safety and control features
work correctly. Do Not return an unsafe
mower to service.

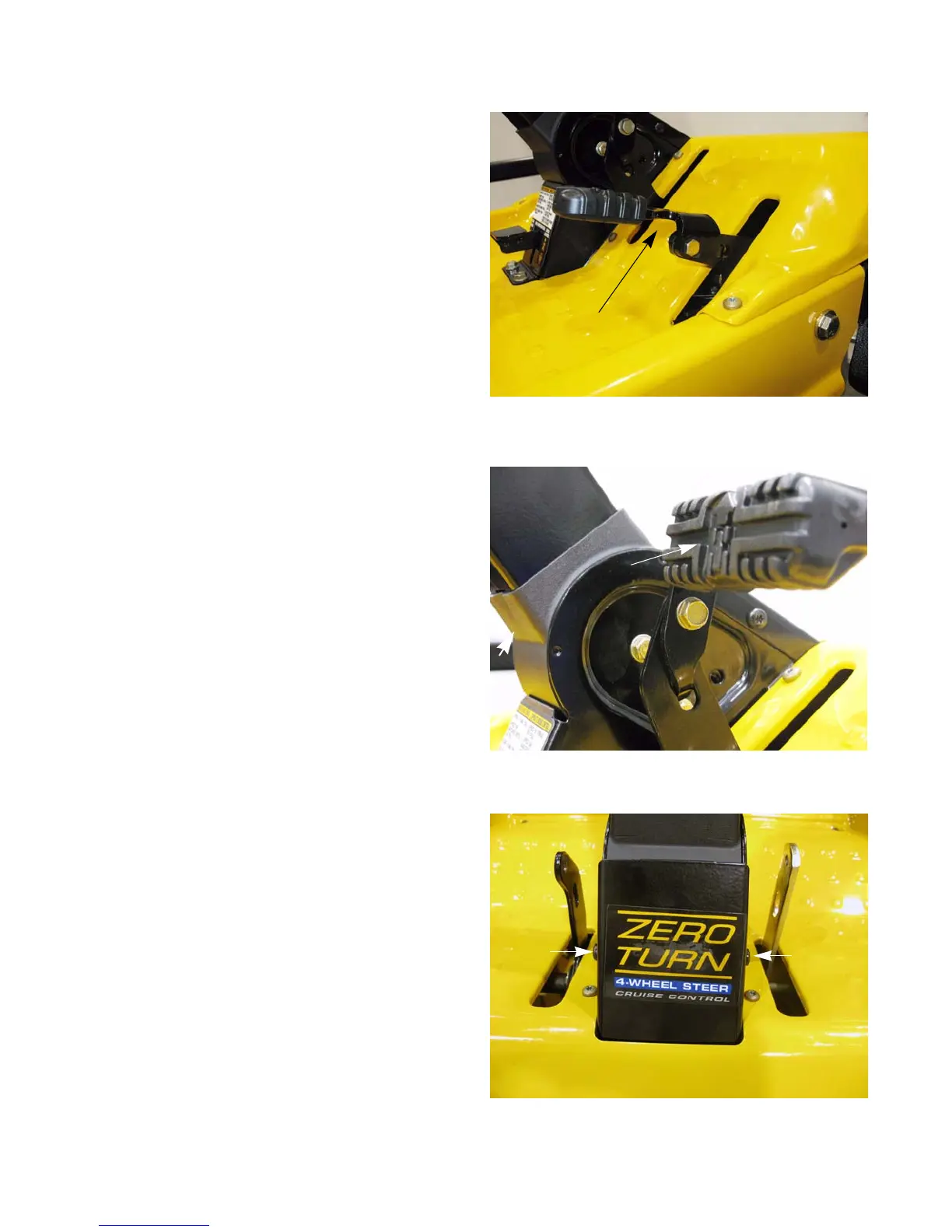

Figure 3.3
Reverse pedal
Figure 3.4
Forward drive pedal
Figure 3.5
