RZT-S
116
3. Loosen, but do NOT remove, the hex bolt on the
front left deck hanger link. See Figure 7.25.
NOTE: The front right deck hanger link is not adjust-
able
4. To level the deck turn the adjustment gear, located
immediately behind the bolt. Turn the gear clock-
wise (rearward) to raise the left side of the deck.
Turn the gear counter-clockwise (toward front) to
lower the left side of the deck. See Figure 7.25.
5. The deck is properly leveled when both blade tip
height measurements, as described earlier, are
equal.
6. Tighten the bolt on the left deck hanger bracket
when proper adjustment is achieved.
Front To Rear (pitch) Leveling
1. With the mower parked on a firm, level surface,
move the deck to the mid height or most commonly
used position using the deck lift pedal. Rotate the
blade nearest the discharge chute so that it is paral-
lel with the mower frame.
NOTE: Check the mower’s tire pressure before
performing any deck leveling adjustments.
The recommended operating tire pressure
is:
• Approximately 10 psi for the rear tires
• Approximately 20 psi for the front tires
2. Measure the distances from the front of the blade tip
to the ground and the rear of the blade tip to the
ground.
3. The front measurement taken should be 1/4” - 3/8”
less than the rear measurement. Determine the
approximate distance necessary for proper adjust-
ment and proceed, if necessary, to the next step.
4. Raise or lower the left and right side of the deck by turning the lock nut on the front deck hanger.
• Tightening the nut will raise the front of the deck.
• Loosening the nut will lower the front of the deck.
5. Re-measure the distance from the front of the blade tip to the ground and the rear of the blade tip to the
ground, to confirm the 1/4” - 3/8” pitch.

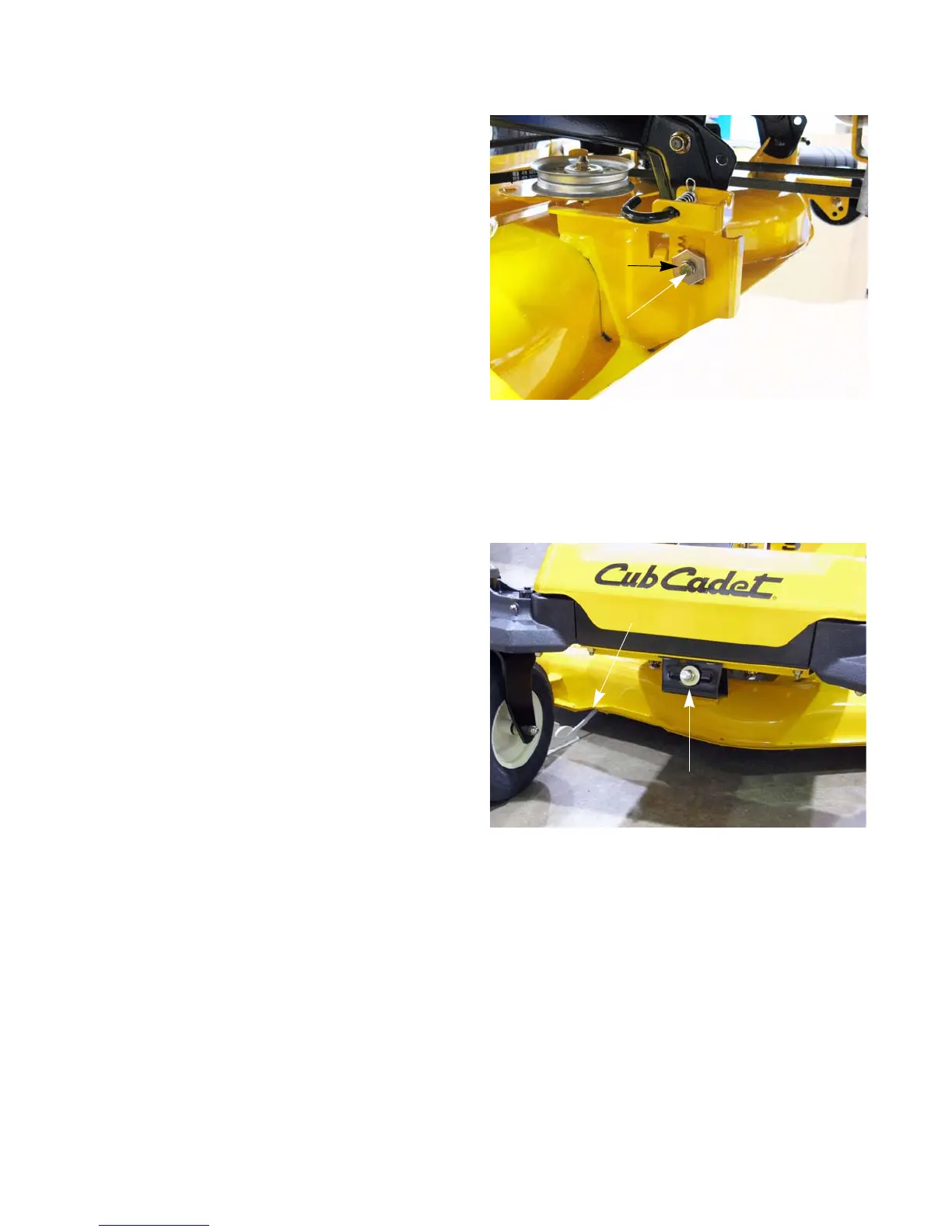

Figure 7.25
Adjustment
gear
Loosen bolt
Figure 7.26
Lock nut
490-900-0041
