Body
17
Left fender
To remove/replace the left fender:
NOTE: The fuel tank is nested inside the left fender.

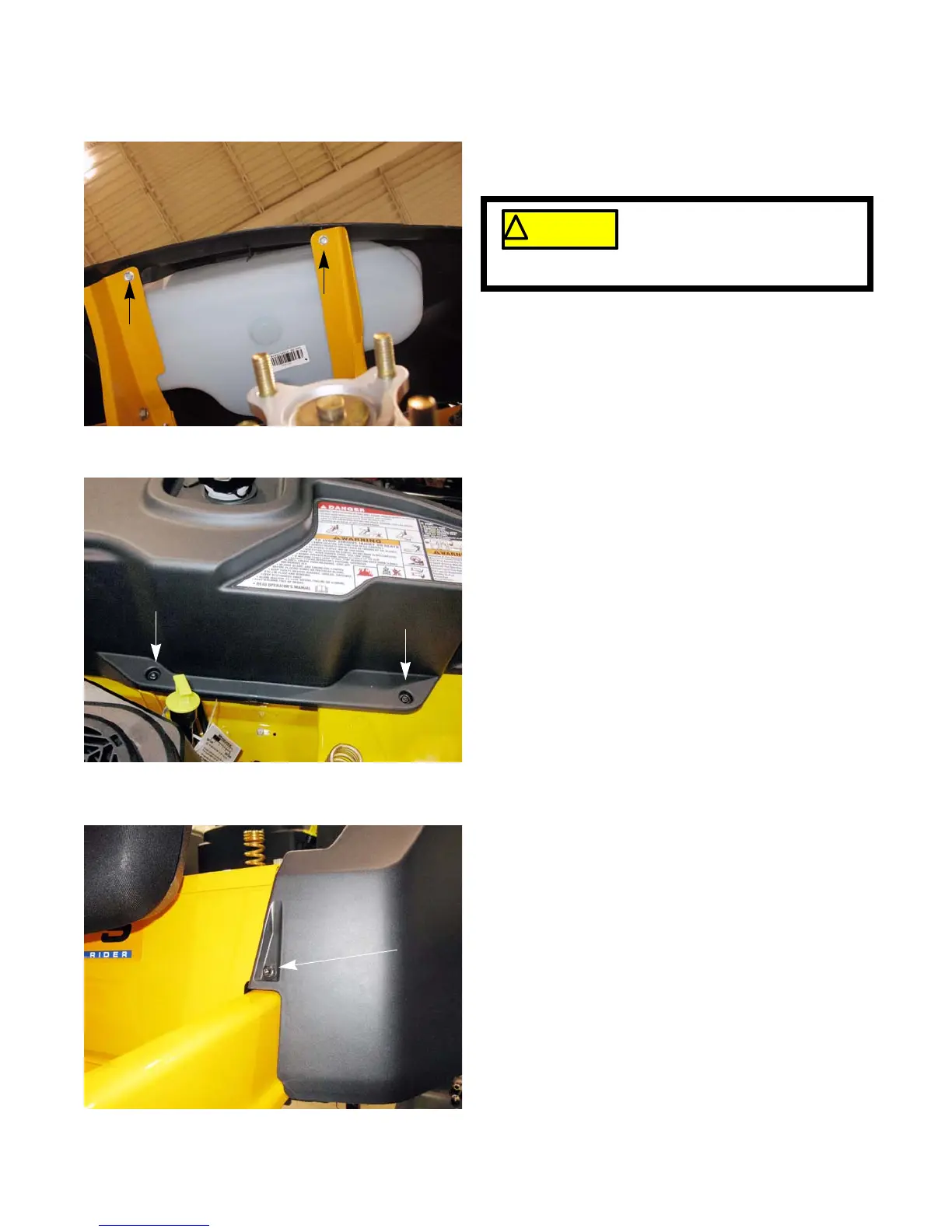

1. Remove the two screws, indicated by the arrows in
Figure 3.6, from the underside of the fender using a
3/8” wrench.
NOTE: The left rear wheel was removed for a clear view of
the screws.
2. Remove the two screws, indicated by the arrows in
Figure 3.7, from the inboard side of the fender using
a T-27 torx driver.
3. Remove the screw from the front of the fender using
a T-27 torx driver. See Figure 3.8.
4. Unscrew the fuel cap.
NOTE: The fuel cap is tethered to the fender. This is an
EPA tier III requirement.
5. Lift the fender off of the mower.
6. Install the fender by following the previous steps in
reverse order.
NOTE: Confirm that all safety and control features work
correctly. Do Not return an unsafe mower to ser-
vice.
Figure 3.6
! CAUTION! CAUTION
Gasoline and its vapors are
extremely flammable. Use com-
mon sense when working around
the fuel system.
Figure 3.7
Figure 3.8
Screw
