Steering
51
Front wheels
Remove/ replace the front wheels:
1. Lift and safely support the front end of the riding
mower.
2. Remove the axle bolt and nut using a pair of 3/4”
wrenches. See Figure 5.9.
3. Slide the tire and wheel assembly out of the yoke.
NOTE: There is a short spacer on each side of the wheel.
The short spacers slide over the long spacer that
the axle bolt passes through. See Figure 5.10.
4. Slide the long spacer out of the wheel bearings.
NOTE: The long spacer is a tight fit to the bearing and may
need to driven out with a hammer and a brass
punch.
5. Install the front wheel by reversing the previous
steps.

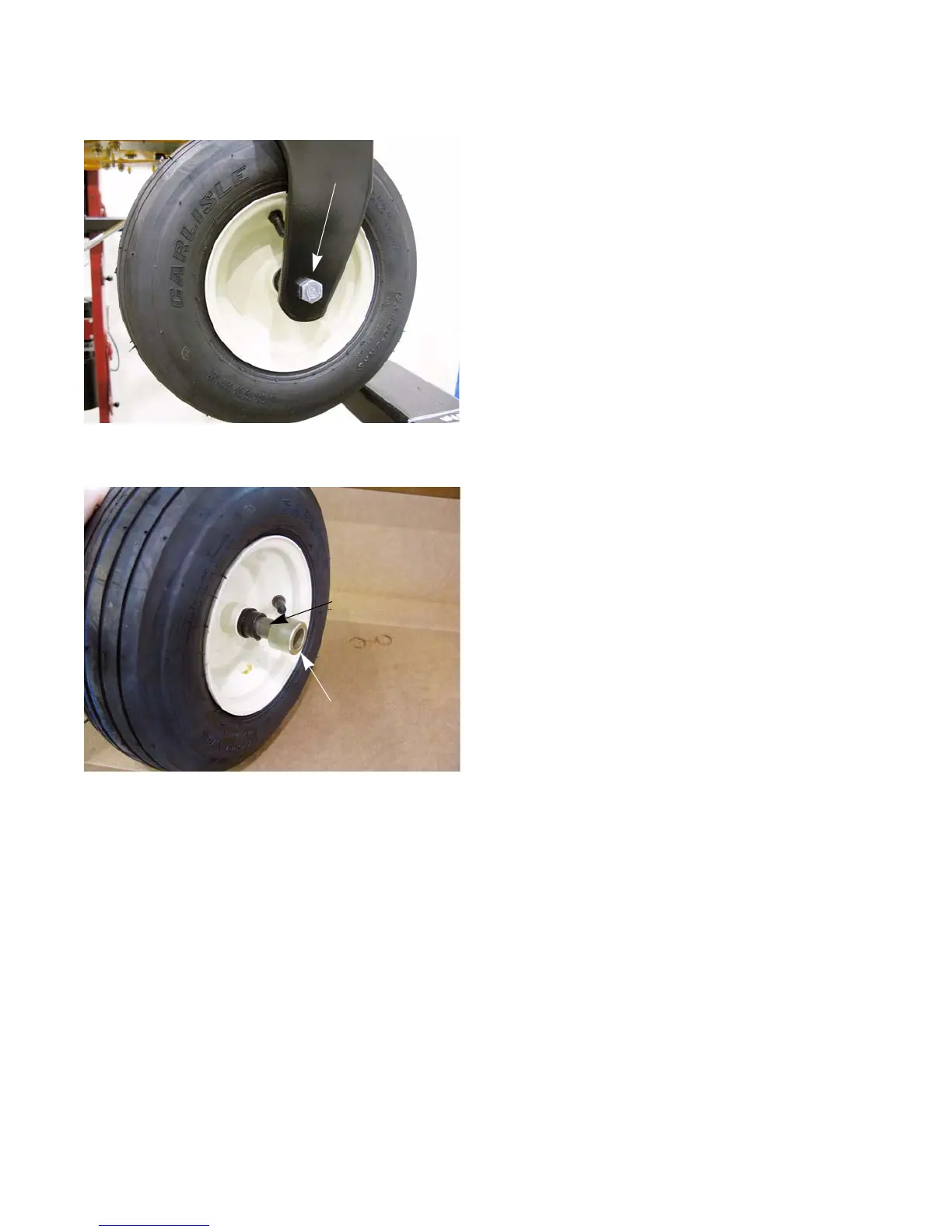

Figure 5.9
Axle bolt
Figure 5.10
Short spacer
Long spacer
