Brakes and Drive System
29
9. Remove the split spacer from the right side of the
deck lift shaft. See Figure 4.13.
10. Slide the right split bushing out of the brake shaft until
it is full exposed. See Figure 4.14.
NOTE: Sliding the brake shaft to the left can help slide the
bushing out of the brake shaft.
11. Remove the split bushing.
12. Install a new bushing.
13. Slide the brake shaft to the right enough to allow the
left split bushing to be fully exposed
14. Remove the bushing.
15. Install a new bushing.
16. Slide the brake shaft to the left enough to allow the
split spacer to be installed.
17. Install the split spacer.
18. Put the mower back together by reversing steps 1 - 8.
19. Test run the mower in a safe area before returning it
to service.
NOTE: Check all safety and control features. Do Not
return an unsafe mower to service.

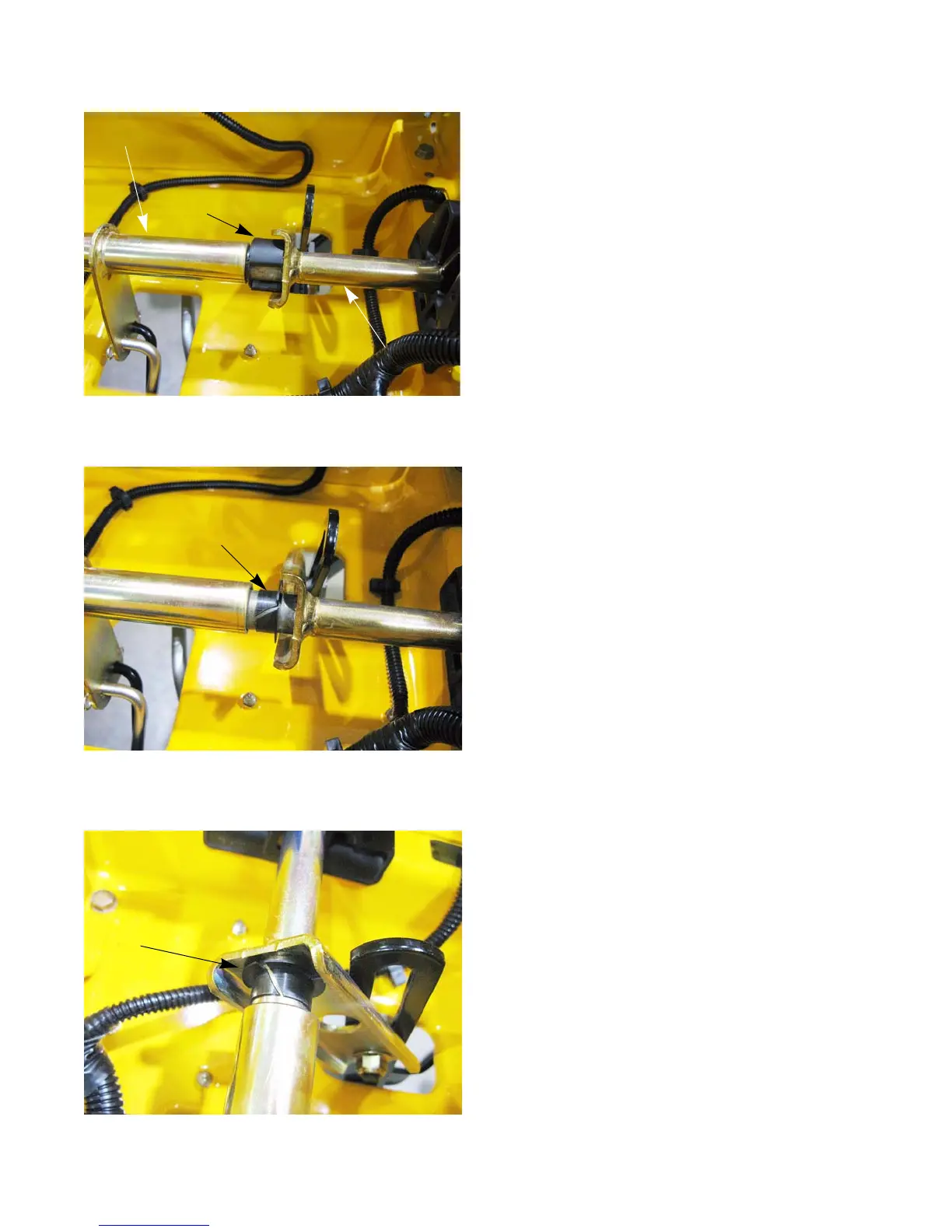

Figure 4.13
Split spacer
Brake shaft
Deck lift shaft
Figure 4.14
Split bushing
Figure 4.15
Split bushing
