1c. Remove the screw from the front of the fender
using a T-27 torx driver. See Figure 2.5.
1d. Unscrew the fuel cap.
NOTE: The fuel cap is tethered to the fender. This is an
EPA tier III requirement.
1e. Lift the fender off of the mower.
2. Clamp off the fuel line between the fuel tank and the
fuel filter. See Figure 2.6.
3. Disconnect the fuel line from the fuel tank at the fuel
filter.
4. Disconnect the fuel tank vent line from the roll over
valve.
5. Lift the fuel tank off of the mower.
6. Drain the fuel into an approved container.
7. Install the fuel tank by reversing previous steps.
8. Test drive the mower in a safe area before returning
it to service.

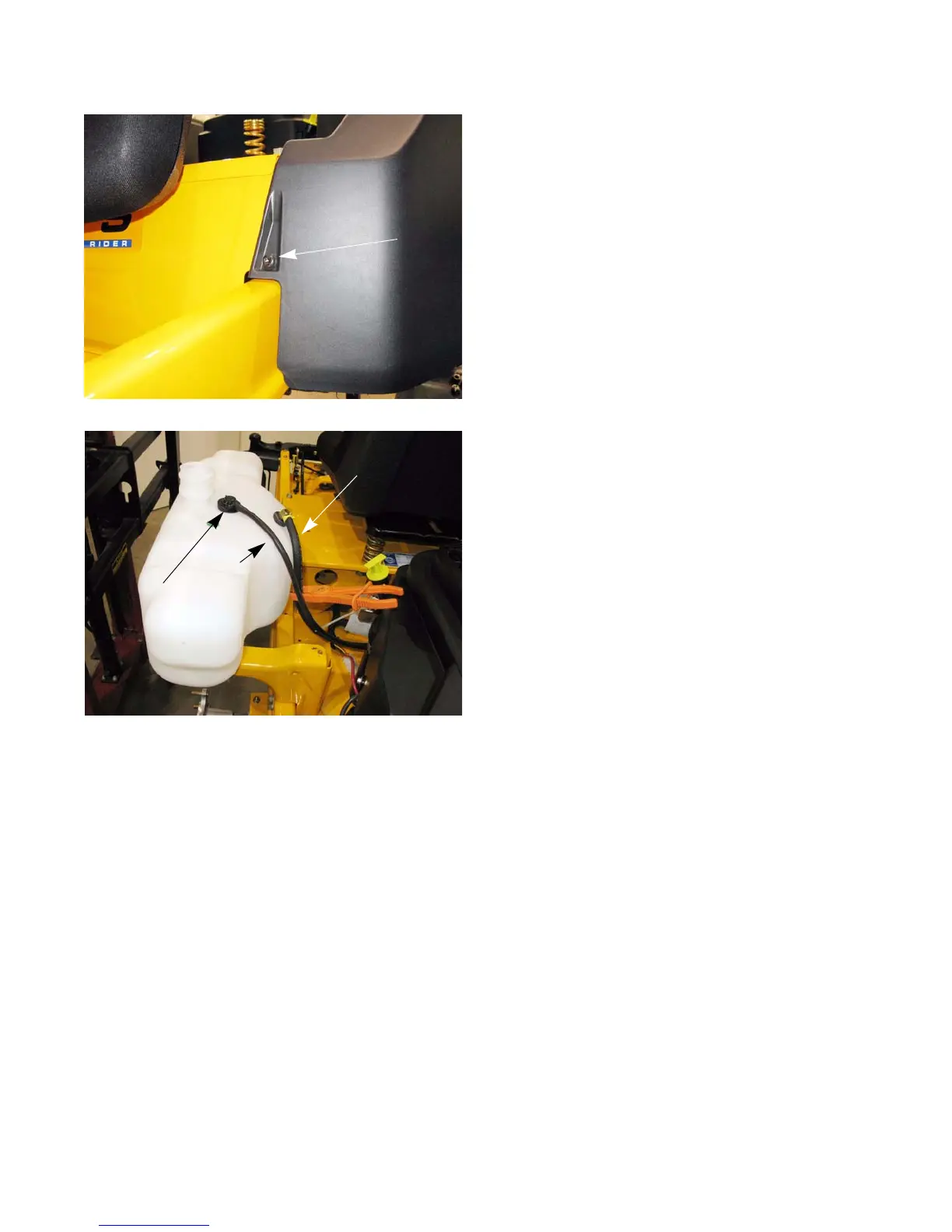

Figure 2.5
Screw
Figure 2.6
Vent hose
Fuel line
Roll over valve
