Cub Cadet RZT-S Professional Shop Manual

Brakes and Drive System
45
24. Make sure the pinion gear is installed so that the tim-
ing marks on the pinion gear line up with the timing
marks on the sector gears.
NOTE: The timing marks are there to align the gear with
the bushing during installation of the steering col-
umn. They are not used for alignment adjustments.
25. Install the control pedal shaft by following steps 1
through 23 in reverse order.
26. Test drive the mower in a safe area before returning
it to service.
NOTE: Check all safety and control features. Do Not
return an unsafe mower to service.

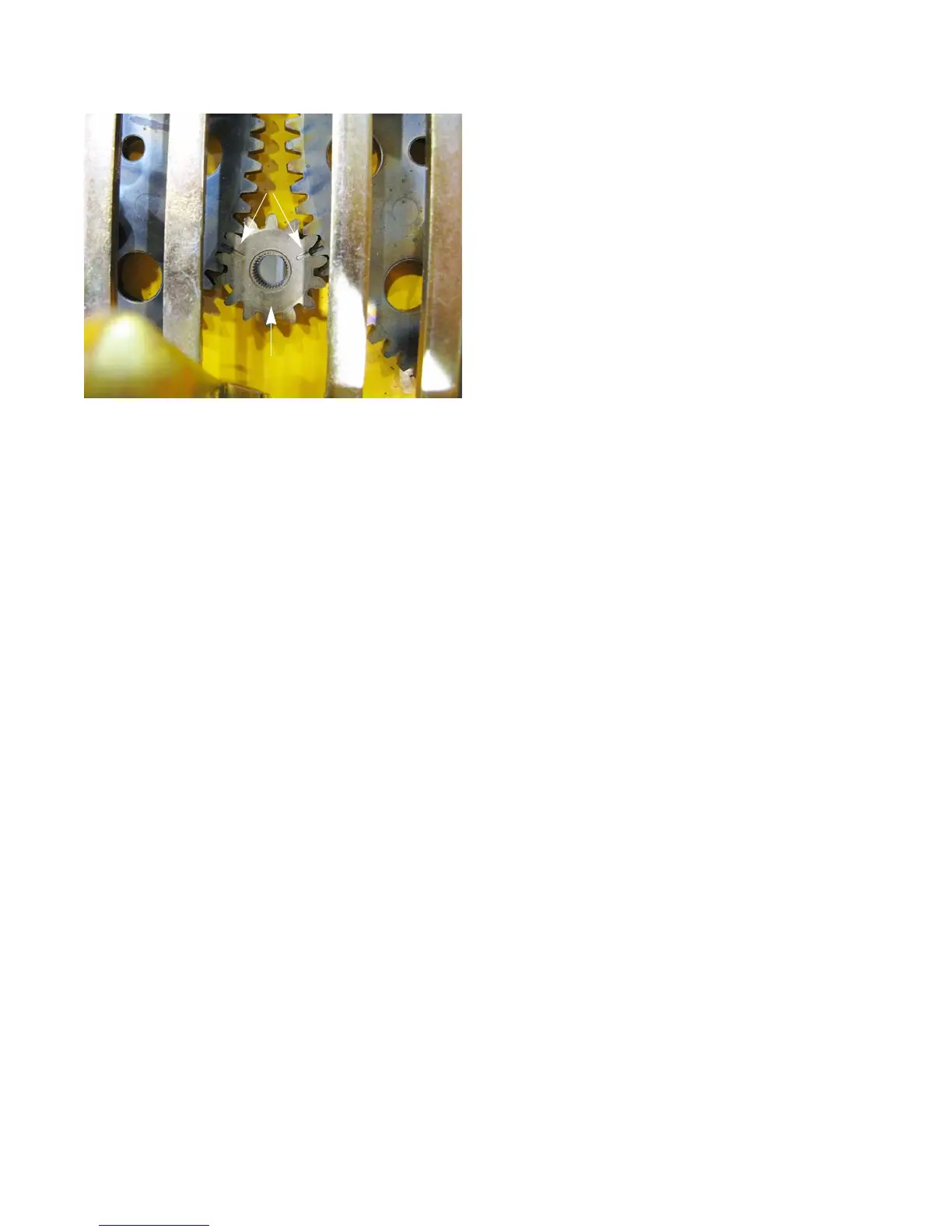

Figure 4.49
Pinion gear
Timing marks
