Steering
49
8. Install the segment gear alignment pins (1/4”).
See Figure 5.3.
9. Insert the axle casting (5/16”) alignment pins into the
alignment holes in both axle castings.
See Figure 5.4.
NOTE: There may be some variability in the size of the
axle casting alignment holes. The taper of the 5/
16” alignment pin will center the pin in the align-
ment hole.
10. Adjust the ball joints on the threaded drag links to
align them with the holes in the segment gears.
See Figure 5.5.
11. Install the nuts and bolts that attach the drag links to
the segment gears.
12. Tighten the drag link ball joint jam nuts.

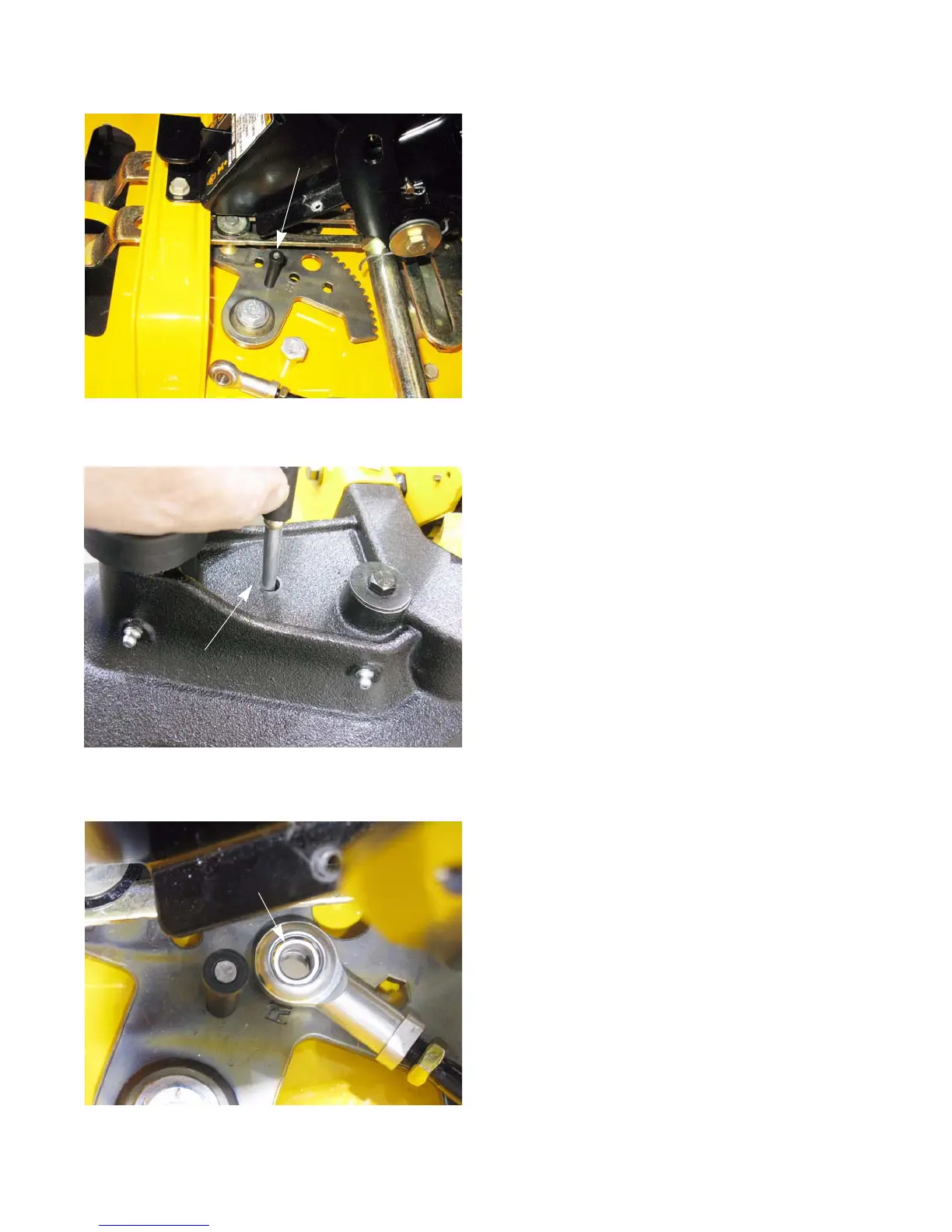

Figure 5.3
Alignment pin
Figure 5.4
Alignment pin
Figure 5.5
Holes aligned
