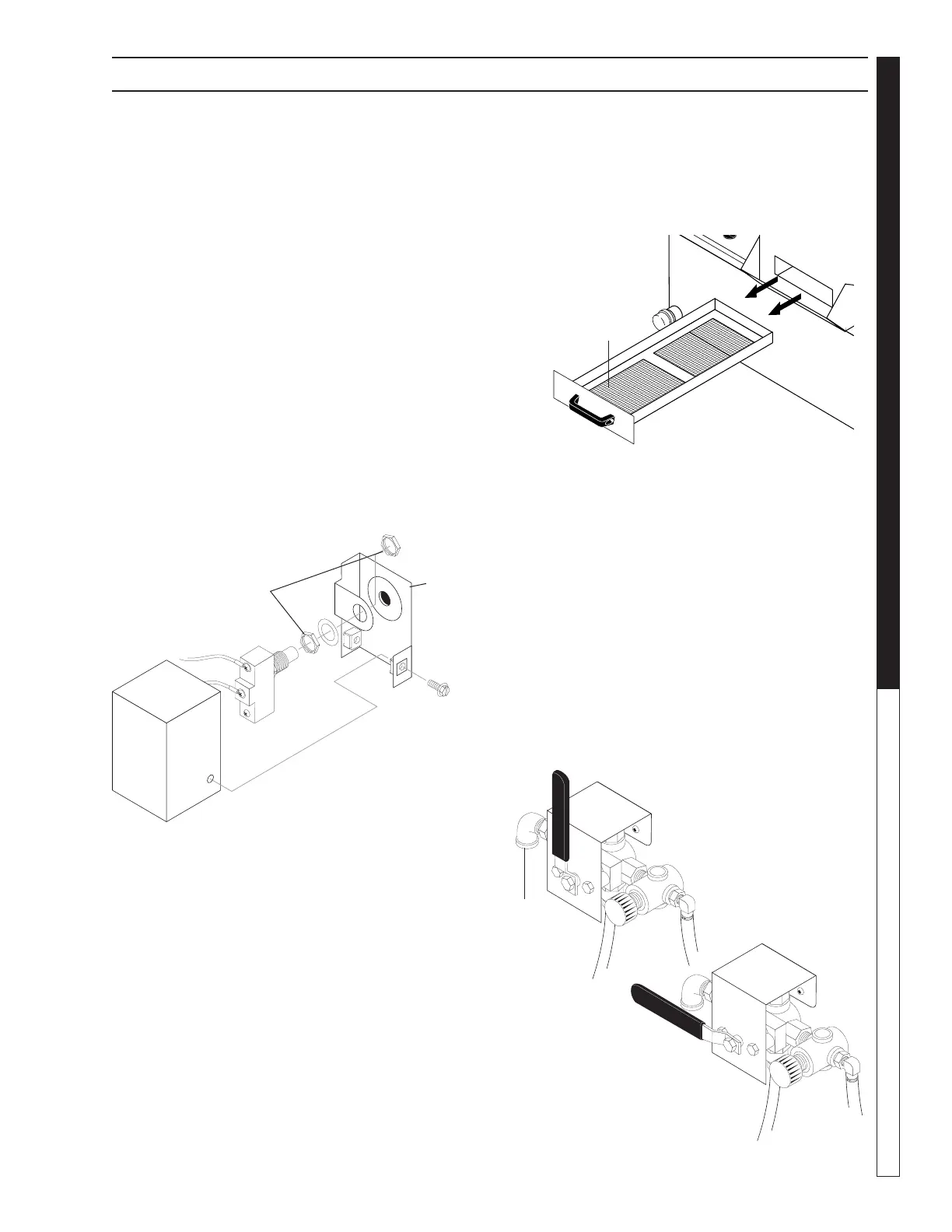

PARTS WASHER
OPERATOR’S MANUAL
Debris
Screen
a safeguard against small parts that might accidentally
be washed through from the cleaning chamber.
The frequency at which you must clean the debris
screen depends on machine usage. In general, you
should clean the screen before operating the machine
each day.
NOTE: Never operate the machine without the debris
screen in place and never remove the screen while the
machine is operating. The screen is specially sized to
filter particles that could clog the spray nozzles or dam-
age the water pump.
Operating the machine without the debris screen in
place could cause spray nozzles to clog or the water
pump to fail.
Air Flow Valve (Optional)
The air flow valve is located on the right rear corner of
the machine. It is a three-way ball valve that controls
the flow of compressed air to the power brush and the
hand detail brush (See Figure Below).
SECTION 3: OPERATION
Door Safety Switch
The door closure safety switch is located on the rear of
the machine, to the right of the main electrical panel.
The switch is activated with a push-rod that extends
through the wash chamber.
The switch disconnects power to the water pump and
turntable motor if the wash chamber door is opened
during a wash cycle. The water pump and turntable
motor will not operate if the door is not closed and
latched correctly.
Adjusting the Safety Switch
Step 1:
Disconnect power to the machine.
Step 2:
Remove the two screws from the rear of the safety
switch cover, and pull the cover free of the switch
assembly.
Step 3:
Loosen the adjustment nuts on both sides of the switch
bracket (See Figure Below).
Step 4:
Adjust the switch accordingly.
Step 5:
Tighten the adjustment nuts.
Step 6:
Replace the cover.
When properly adjusted, you should hear a slight “click”
as the door latch engages and compresses the door
seal and the door closure safety switch.
Debris Screen
The debris screen is located just below the wash cham-
ber, and is accessible from the front of the machine (See
Figure Below). The debris screen continuously filters
debris particles from the cleaning solution to ensure
blockage-free spray nozzle operation, and also provides
To Air
Supply
To Air
Supply
Outlet
To Detail
Brush
Outlet
To Power
Brush
Position 2:
Detail Brush
Position 1:
Power Brush
Switch
Housing
Safety
Switch
Adjustment
Nuts
Switch
Bracket
Standard Screen: 10 Mesh
Optional Screen: 60 Mesh
