STEP 4: CONNECT A
WATER LINE
NOTE: This step is required for machines equipped with
the optional automatic water fill feature. If your machine
does not have this option, skip this step.
The optional automatic water fill feature automatically
maintains the correct water level in the sump. The
feature requires that you connect the machine to a
dedicated water supply line.
To connect the machine to a water supply line, attach
a suitable burst-proof hose to the hose connection on
the rear of the machine below the oil skimmer assembly
(See Figure Below), then connect the hose to a nearby
water spigot.
NOTE: The machine is designed for portability, and
some maintenance tasks require that you move the
machine. DO NOT make a permanent connection from
your shop water supply to the machine.
SECTION 2: INSTALLATION
STEP 5: FILL THE MACHINE
WITH WATER AND ADD
DETERGENT
Step 1:
Fill the sump with water. If your machine is equipped
with the automatic water fill feature, simply open the
water inlet valve; if not, add water through the wash
chamber. The sump capacity is 50 gallons.
Step 2:
When the sump is full and the low water light has gone
out, shut off the water. If your machine is equipped with
the automatic water fill feature the water will shut off
automatically when the sump is full.
NOTE: Monitor the water level carefully – do not
overfill the machine. If you overfill the machine, re-
move excess water using a small submersible pump or a
suitable container. The correct water level is two inches
from the top of the sump tank when the pump is off.
Step 3:
Turn the heater timer to the 2-hour position. The sump
water will reach operating temperature (160–180°F) in
approximately 1-2 hours.
NOTE: To avoid waiting for the sump water to heat to
operating temperature every day, manufacturer recom-
mends a 24-hour, 7-day heater timer. With a 24-hour,
7-day timer you can set the heating system to turn on
several hours before you begin to use the machine each
day. For more information about 24-hour, 7-day timers
refer to 24-hour, 7-day Timers.
Step 4:
While the sump water is heating, add the appropriate
quantity of factory approved detergent to the wash
chamber. We recommend mixing the detergent with
warm water in a separate bucket/container and then
pouring the dissolved detergent into the sump.
NOTE: Factory approved detergent is the only deter-
gent approved for use with this automatic parts washer.
It is specially formulated with rust inhibitors and anti-
foaming agents to optimize performance and minimize
maintenance. The use of any other detergent during
the warranty period will void the warranty. In addition,
using factory detergents will extend your 90 day labor
warranty to 1 year.
Step 5:
Close and latch the door.

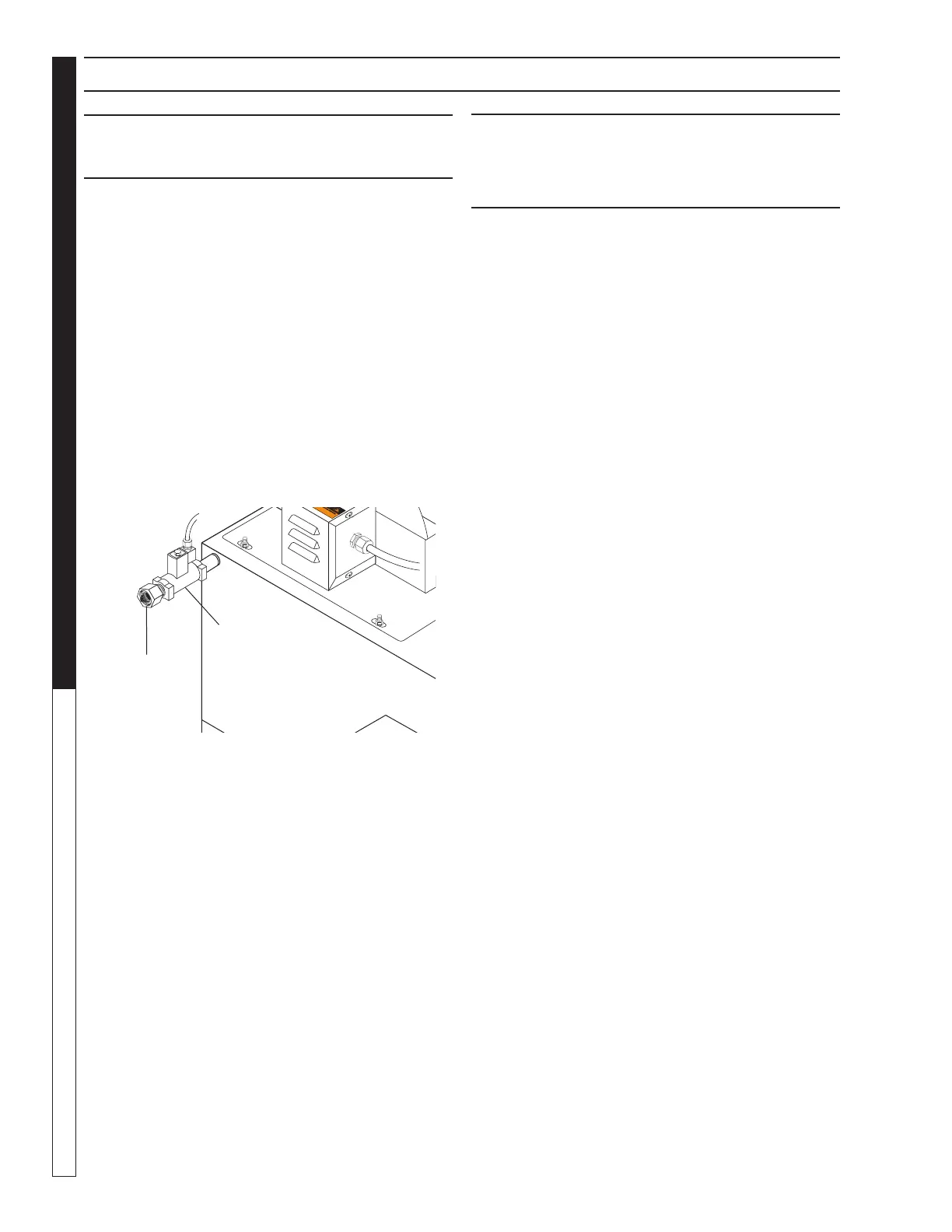

Fresh
