CUDA 2848 - TT Motor Exploded View

8.930-369.0 • 2848 • Rev. 4/13a
OPERATOR’S MANUAL
PARTS WASHER
40

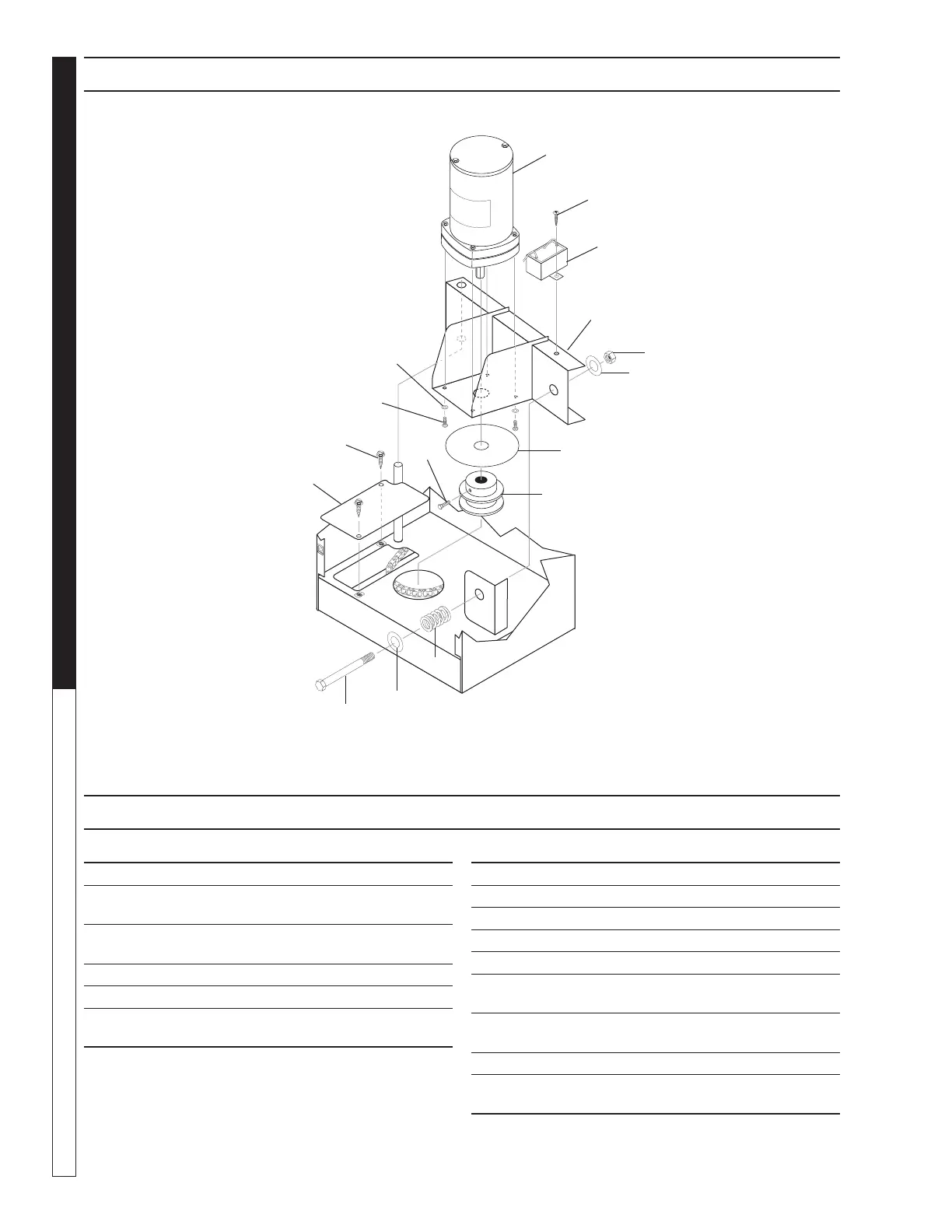

TT MOTOR EXPLODED VIEW
89303690-3
TT MOTOR EXPLODED VIEW & PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 8.725-371.0 Gear Motor APW 1
2 9.802-798.0 Screw, #10 x 1/2", Tek Hex
Head 2
3 8.930-262.0 Cover, Gear Motor Box Chain
Access 14g 1
4 8.930-268.0 Assy, Gear Motor Swing Arm 1
5 8.713-036.0 Washer -rubber Bonded #10 4
6 9.802-698.0 Screw, 10/32" x 1/2" BH
SocSS 4
1
15
4
10
11
7
8
5
6
2
3
9
13
11
12
ITEM PART NO. DESCRIPTION QTY
7 8.752-174.0 Washer, Gear Motor, Stainless 1
8 8.714-008.0 Torque Limiter -Std Size 1
9 9.804-511.0 Screw Set 1/4" x 28 x 3/8 SS 1
10 9.802-779.0 Nut, 3/8", ESNA, NC 1
11 9.802-817.0 Washer, 1" Steel 2
12 9.804-423.0 Spring, .875 OD x 2.50 Lg x
.120- 74 lb/in 1
13 8.718-685.0 Bolt, 3/8", 16 x 5" Hex HD.
Plated 1
14 8.725-437.0 Capacitor 1
15 8.718-937.0 Screw #8 x 3/4" Phillips
Zinc Plated 1
