CUDA 2848 - Side Control Panel Exploded View

8.930-369.0 • 2848 • Rev. 4/13a
41
PARTS WASHER
OPERATOR’S MANUAL
89303690-4

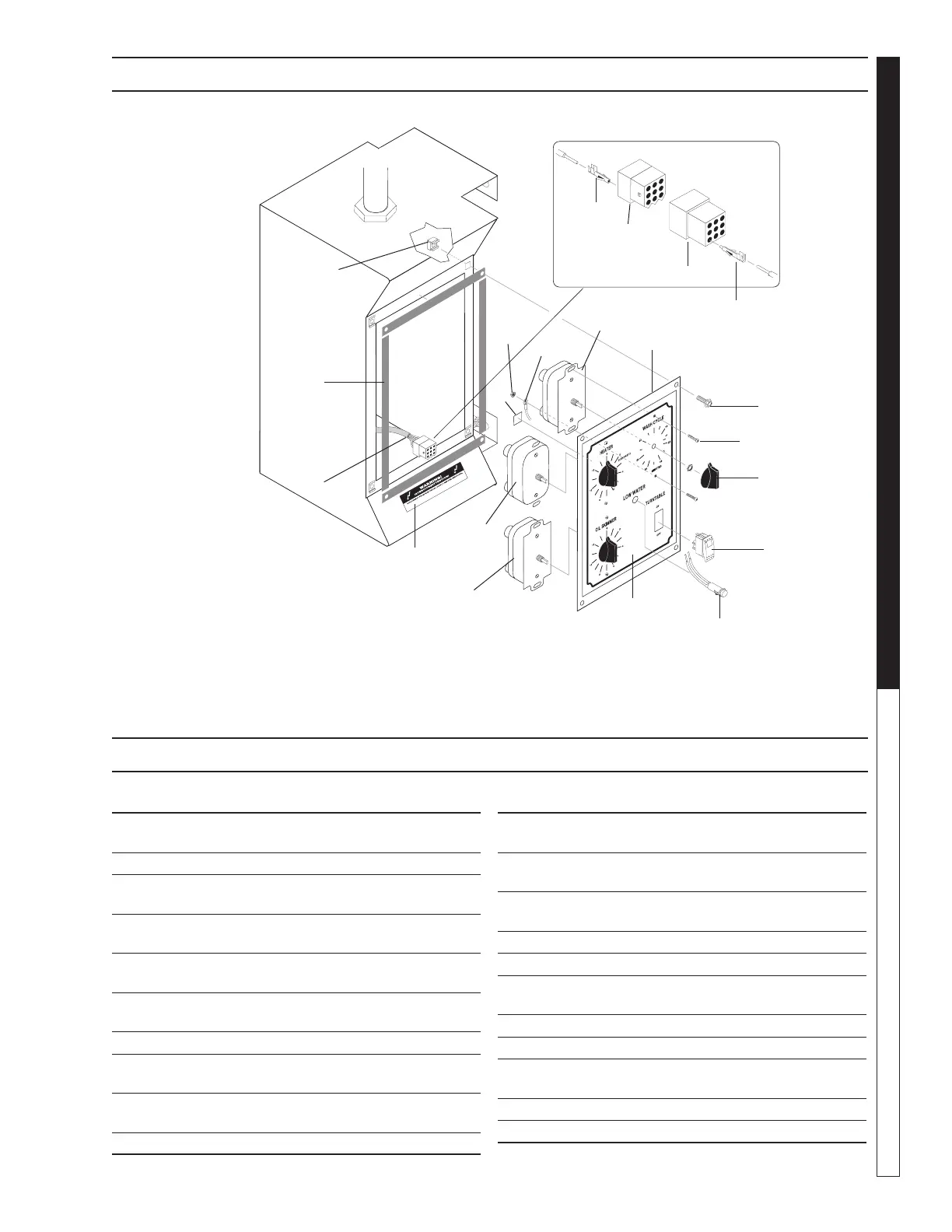

EXPLODED VIEW - SIDE CONTROL PANEL
SIDE CONTROL PANEL PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.804-094.0 Foam Strip 1/8" x 1/2" Adhesive
Back 30"
2 8.930-240.0 Cover, Control Box 1
3 8.718-813.0 Screw, 10/32 x 1/2 BH SOC,
SS 4
4 8.712-832.0 Timer, 60 Min. Spring Wound
w/Hold Wash 1
5 8.712-833.0 Timer, 12 Hr. Spring Wound
Heater 1
6 8.713-357.0 Timer, 30 Min. Spring Wound
Oil Skimmer 1
7 9.804-294.0 Knob, Timer Black 3
8 9.804-564.0 Screw, 6-32 x 1/2 PL SLTD
RHD 6
9 8.713-328.0 Switch, Lighted Rocker
Skimmer/TT On/Off 1
10 8.716-408.0 Light, Indicator Amber 120V 1
ITEM PART NO. DESCRIPTION QTY
11 8.713-698.0 Connector, Electrical 9 Pin
Female 1
12 8.713-699.0 Connector, Electrical 9 Pin
Male 1
13 8.713-604.0 Connector, Electrical Pin
Female 9
14 8.713-768.0 Connector, Electrical Pin Male 9
15 9.802-784.0 Nut, 6-32 KEPS 1
16 8.716-377.0 Terminal, Ring Tongue,
RC10-516 1
17 9.802-791.0 Nut, Cage, 10/32" x 16 GA 4
18 9.800-016.0 Label, Disco Power Supply 1
19 8.714-176.0 Cord, 16/9 SOOW Black
Rubber Jacket 140"
20 8.904-659.0 Label, Control Panel 1
21 9.800-040.0 Label,Ground 1
