CUDA 2848 - Page 48

8.930-369.0 • 2848 • Rev. 4/13a
OPERATOR’S MANUAL
PARTS WASHER
48

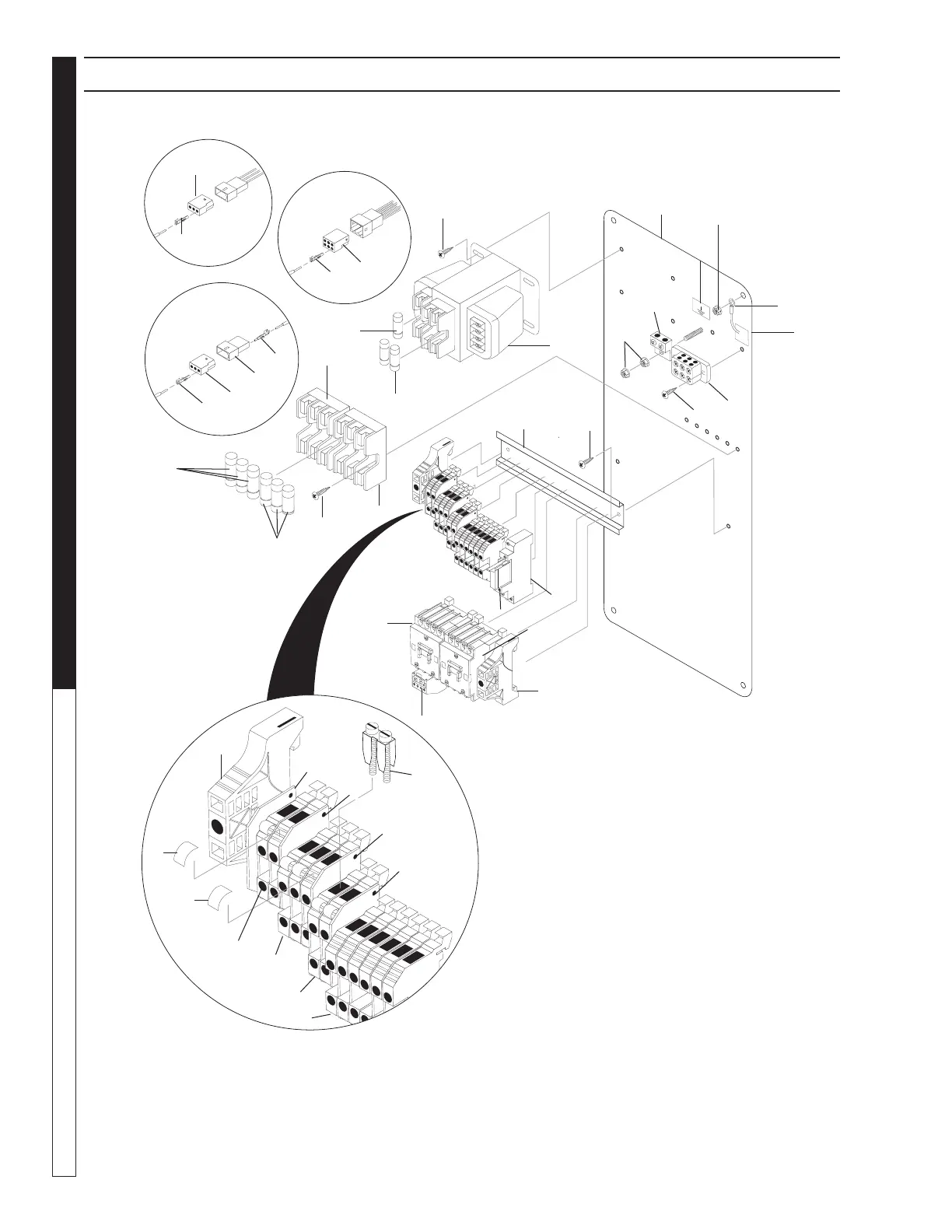

ELECTRICAL PANEL - 230V 3PH EXPLODED VIEW
GROUND
89303690-8
1
23
24
23
24
25
26
22
24
Timer
Option
Oil Skimmer
Auto Fill
Option
6
2
5
16
30
18
28
3
17
29
30
20
15
14
7
8
4
19
29
10
9
27
32
33
1.043-394.0
34
4
11
12
11
31
35
35
31
13
21
36
36
