CUDA 2848 - Oil Skimmer Assembly Exploded View

8.930-369.0 • 2848 • Rev. 4/13a
OPERATOR’S MANUAL
PARTS WASHER
54

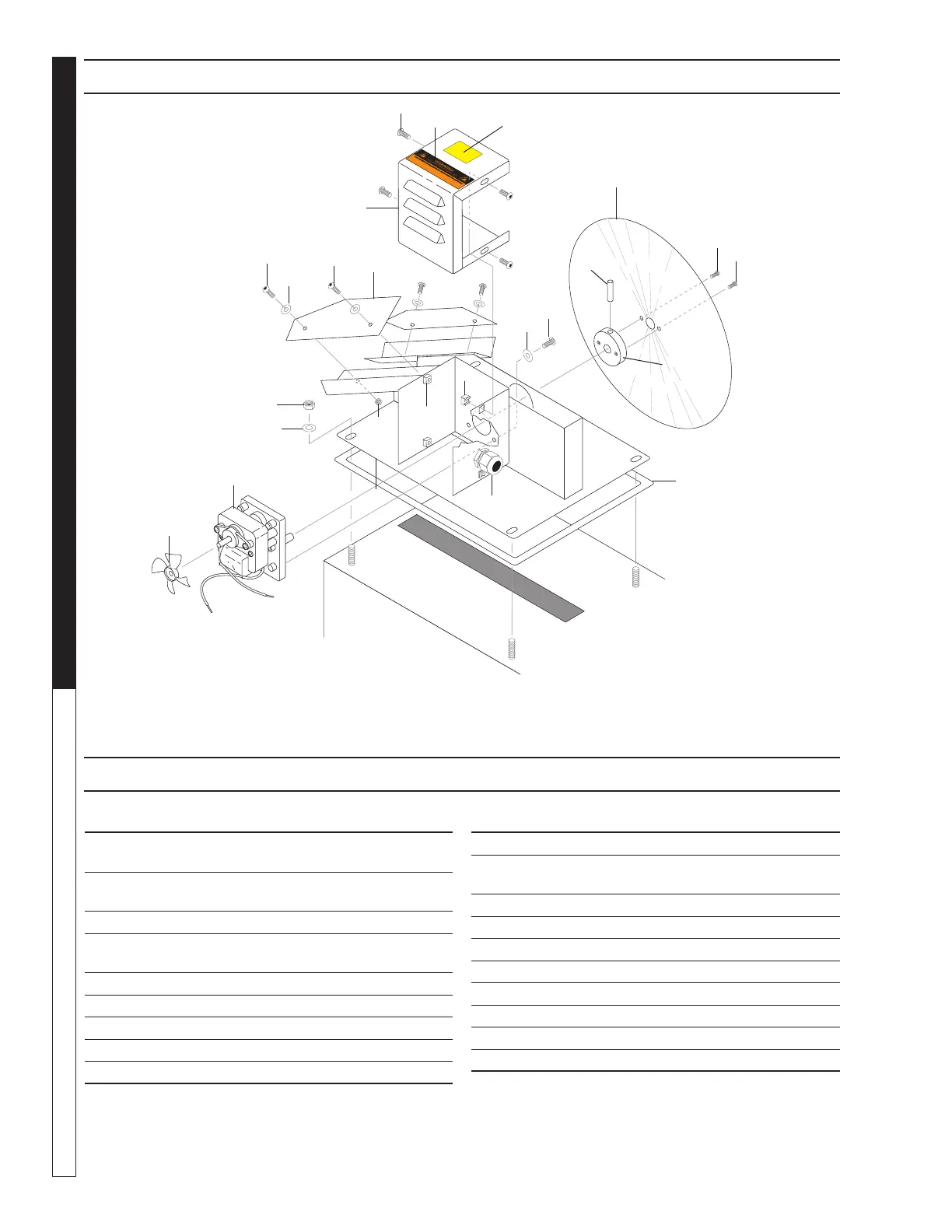

EXPLODED VIEW - OIL SKIMMER ASSEMBLY
KEEP
DRY
89303690-11
1
2
1
1
4
6
13
8
7
7
15
10
10
13
OIL SKIMMER ASSEMBLY PARTS LIST
12
11
ITEM PART NO. DESCRIPTION QTY
1 8.718-813.0 Screw, 10/32" x 1/2"
BH, SOC, SS 11
2 8.913-733.0 Cover, Motor, Disc
Skimmer SS 1
3 9.800-016.0 Label, Disc. Power Supply 1
4 9.804-102.0 Blade, Wiper, Disc Skimmer
SS 2
5 9.802-776.0 Nut, 5/16 ESNA 4
6 8.918-672.0 Disc, Skimmer SS 1
7 9.802-791.0 Nut, Cage, 10/32" x 16 Ga 4
8 9.802-514.0 Strain Relief, STRT, LQ Tite 1
9 9.804-374.0 Label, Keep Dry 1
ITEM PART NO. DESCRIPTION QTY
10 8.904-676.0 Motor, Disc Skimmer 1
11 8.719-987.0 Hub, Disc Mount, Disc
Skimmer 1
12 8.719-068.0 Pin, Roll 1/8" x 1" Steel 1
13 9.804-564.0 Screw, 6-22 x 1/2" 2
14 8.718-980.0 Washer, 5/16 Flat 4
15 8.913-751.0 Oil Skimmer, Large 1
16 8.718-568.0 Washer, 1/4" Sealing 3
17 9.804-567.0 Nut, 10/32 ESNA 4
18 9.804-621.0 Gasket, Skimmer 1
19 8.718-968.0 Washer, #10 Flat Zinc Plt 4
1
16
5
14
17
18
3
19
9
