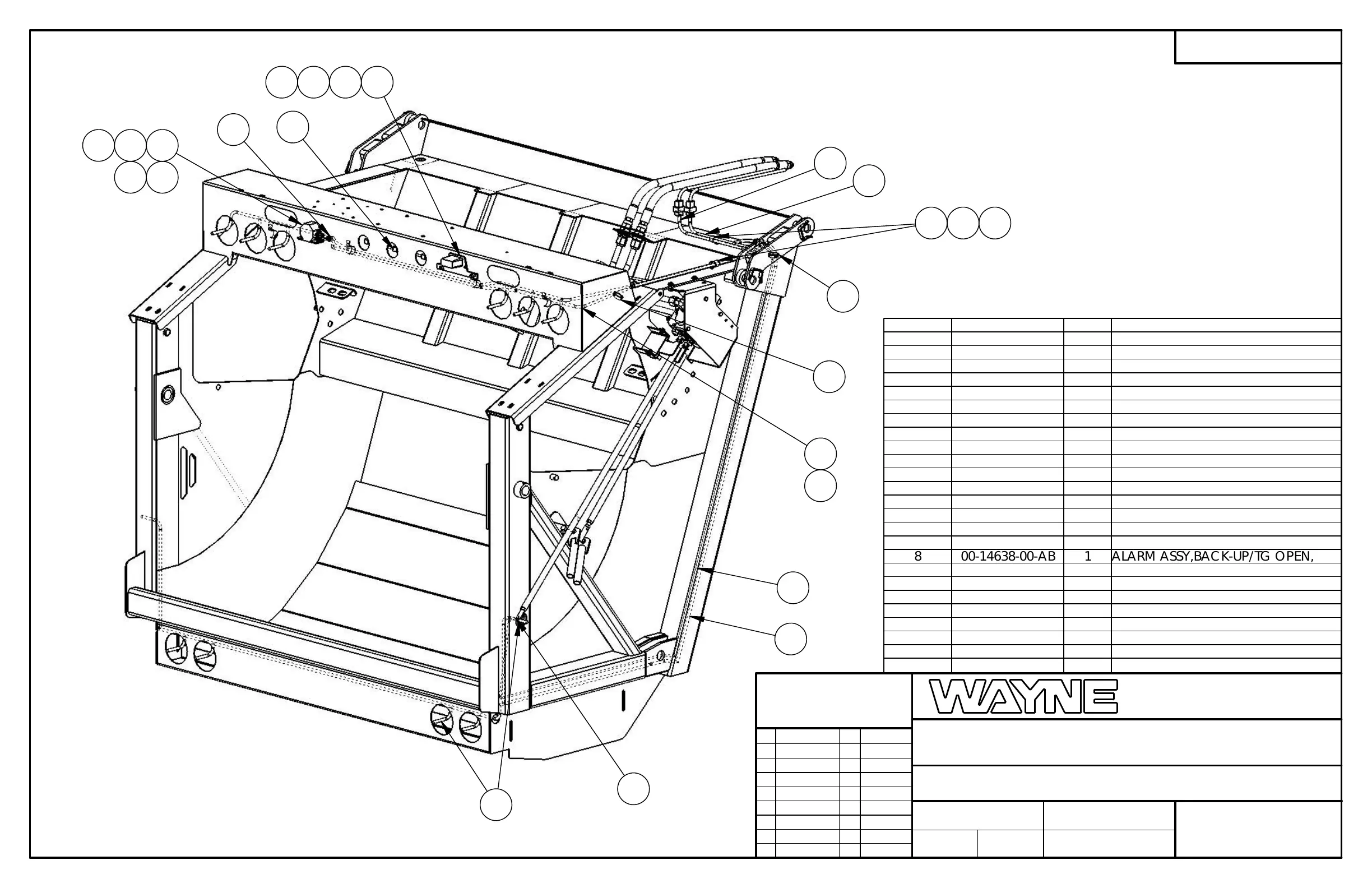

CURBTENDER Quantum Compact - Page 82

ITEM NO. PART NUMBER QTY. DESCRIPTION
25 430-003-000 5 STRAP, TIE
24 415-004-008 2 CAPSCREW, SELF TAPPING
23 345-005-007 1 BOOT, SWITCH
22 345-005-003 1 SWITCH, TOGGLE
21 00-35479-00-OA 1 PLATE, SWITCH
20 440-020-000 2 BUSHING, MACHINE, 1 1/4
19 345-014-009 1 SWITCH,PROX N.O. W/DEUTSCH
18 00-32221-00-OA 1 HARNESS, CLUSTER
17 445-003-002 2 NUT,FINE THREAD
16 461-003-014 2 WASHER,LOCK,EXTERNAL TOOTH
15 461-003-008 2 SCREW,MACHINE,
14 332-024-000 1 LAMP, LICENSE
13 303-009-010 1 BUSHING, SNAP
12 445-004-001 2 NUT,STD
11 485-008-004 2 WASHER,LOCK
10 485-004-001 2 WASHER,SAE FLAT
9 415-004-012 2 CAPSCREW, 1/4-20 X 3/4
8 00-14638-00-AB 1 ALARM ASSY,BACK-UP/TG OPEN,
7 00-36319-00-AB 1 HARNESS, LOWER LIGHT, PLS
6 303-010-012 2 BUSHING, SNAP
5 440-029-000 2 WASHER,LOCK
4 445-006-001 4 NUT,STD
3 400-015-012 2 CLAMP, HOSE SUPPORT
2 00-36318-00-AB 1 HARNESS, TAILGATE LIGHT, PLS
1 00-36315-00-AB 1 HARNESS, TG MAN CONTROLS, PLS
