BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
6
7
8
ECN RELEASE
00-36314-00-AB
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36314-00-AB
7/17/2017

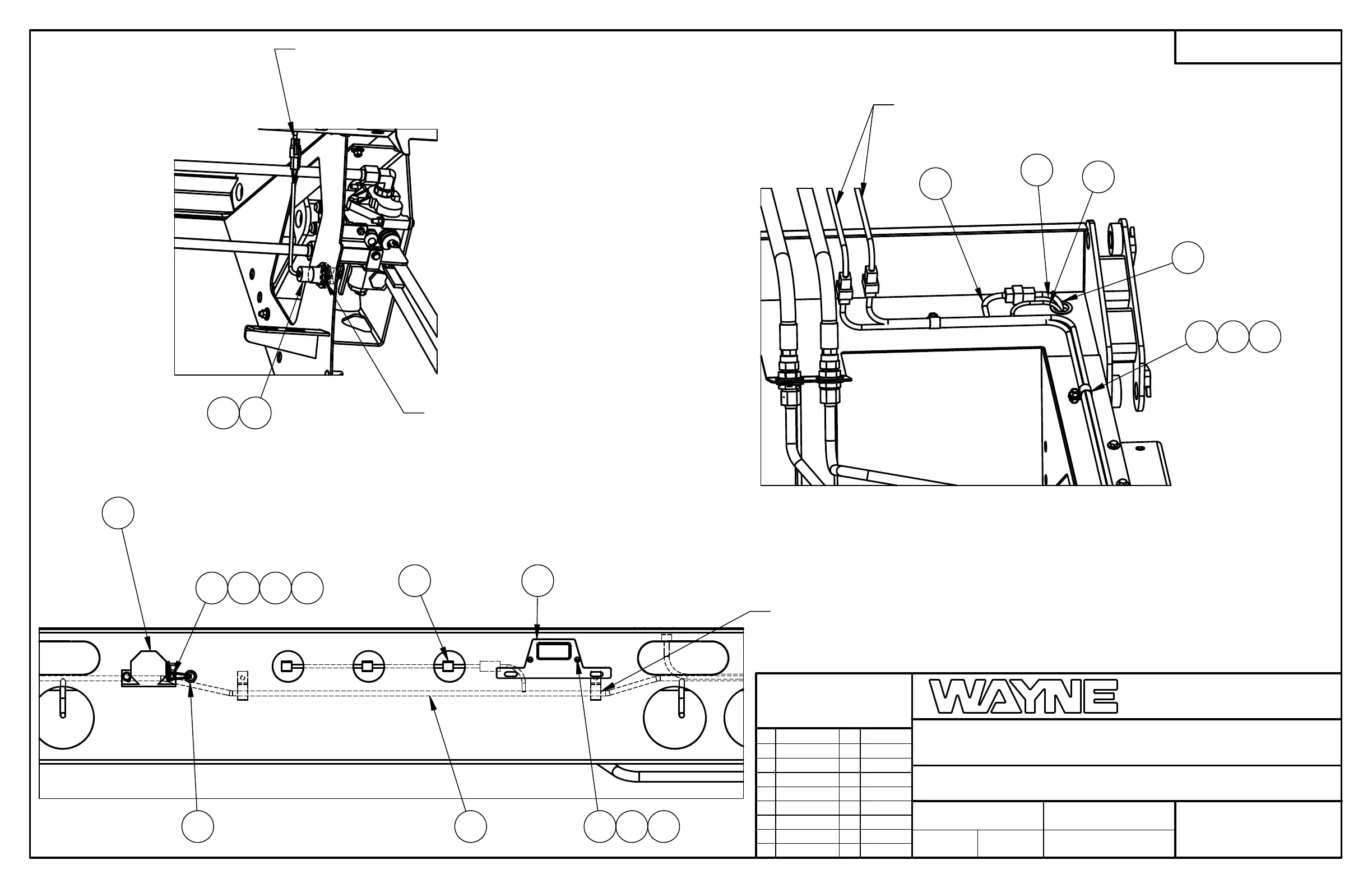

ELEC ASSY, TAILGATE, PLS
03047
DAS
1:6
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
2
7
1
6
3 4 5
CONNECT TAILGATE HARNESSES THE BODY HARNESSES
TIE STRAP BODY HARNESSES TO THE HYD HOSE.
SHEET 2 OF 3
SHEET 2 OF 3
1920 CENTER PROX ON SLOT IN
LINKAGE ARM, SPACE PROX
FROM LINKAGE ARM BY .25
ATTACH TO HARNESS
CONNECTOR WITH
BLUE WIRE 147D
TOP HARNESS DETAIL
TIE STRAP PROX HARNESS &
CONTROL HARNESS LEG TO
HYD TUBES.
LIGHT COVER DETAIL
8
13
18
9 10 11 12
14
15 16 17
ATTACH BLUE WIRE 082C OF THE CONTROL HARNESS TO THE
BLUE WIRE FROM THE ALARM. CONNECT BLUE OF THE LIGHT
HARNESS TO THE BLACK ON GREEN WIRE OF THE ALARM .
CONNECT THE BLACK WIRE OF THE LIGHT HARNESS TO THE
BLACK WIRE OF THE ALARM.
CONNECT TO THE BROWN WIRE
OF THE LIGHT HARNESS
RUN HARNESS THRU LIGHT BAR STRAPS
2
