SHEET 2 OF 2
SHEET 2 OF 2
1
4 3
INSTALL COVERS BETWEEN
TAILGATE SIDE WALL AND
LIGHT BAR TABS
2
109
111213
11 12 13
USE THESE HOLES FOR 87.00 WIDE FENDERS
USE THESE HOLES FOR 91.00 WIDE FENDERS
USE THESE HOLES FOR 96.00 WIDE FENDERS
BY
ECN NUMBER
SYM
DIMENSIONS IN () ARE REFERENCE
ANGULAR ± 1°
2 PLACE DECIMALS ± .06
3 PLACE DECIMALS ± .005
TOLERANCES
(EXCEPT AS NOTED)
DRAWING NO.
DATE
SCALE
CHK'D
DRAWN BY
DATE
DESCRIPTION
This drawing and the information thereon is the property of WAYNE ENGINEERING CORPORATION. It may not be
copied, duplicated, reproduced or used in any way to the detriment of WAYNE ENGINEERING CORPORATION.
This drawing is loaned to you and is to be returned upon our request.
1
2
3
4
5
6
7
8
ECN RELEASE
00-36309-1X-AB
ECN
ECN
ECN
ECN
ECN
ECN
ECN
ECN
00-36309-1X-AB
10/01/09

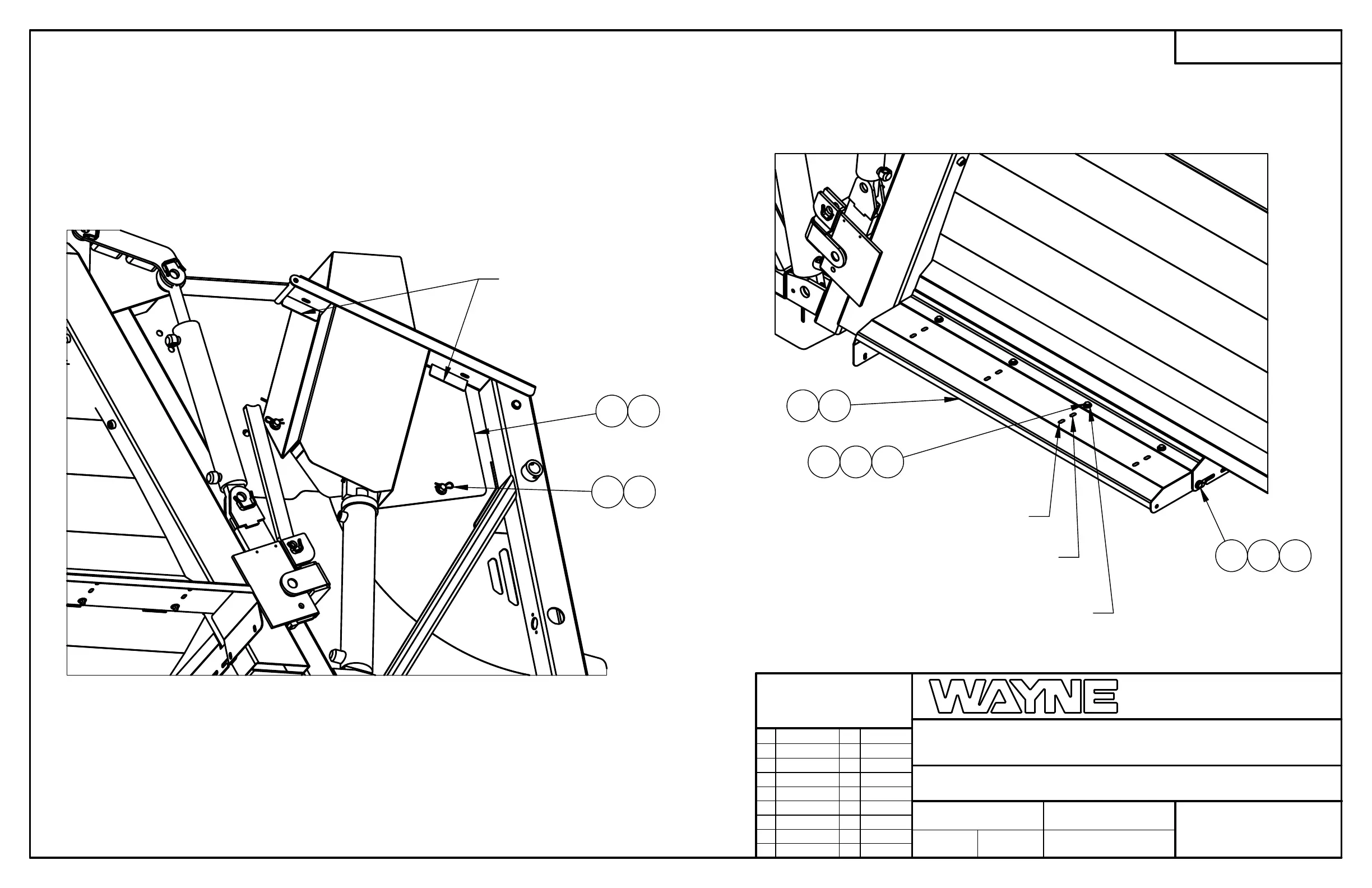

PARTS ASSY, MTG W/ 4" RISER, QUS
04278
DAS
1:10
CEDAR FALLS, IOWA
ENGINEERING CORPORATION
