Curtis MultiMode 1228 User Manual

Curtis 1228 Manual, Rev. F
5
2 — INSTALLATION & WIRING
J10 Pin 1 B- (for logic circuit or battery charger)
J10 Pin 2 B- (for logic circuit or battery charger)
J10 Pin 3 pot high output
J10 Pin 4 pot wiper input; 5V throttle input
J10 Pin 5 keyswitch input (KSI)
J10 Pin 6 electromagnetic brake input (brake -)
J10 Pin 7 push switch input
J10 Pin 8 mode switch input—M1 (open), M2 (closed)
J10 Pin 9 status LED output
J10 Pin 10 B+ (for logic circuit or battery charger)
J10 Pin 11 B+ (for logic circuit or battery charger)
J10 Pin 12 inhibit input
J10 Pin 13 pot low input
J10 Pin 14 electromagnetic brake output (brake +)
J10 Pin 15 BDI output
J10 Pin 16 horn input
J10 Pin 17 reverse switch input
J10 Pin 18 speed limit pot wiper input
B+ B- M2 M1
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18

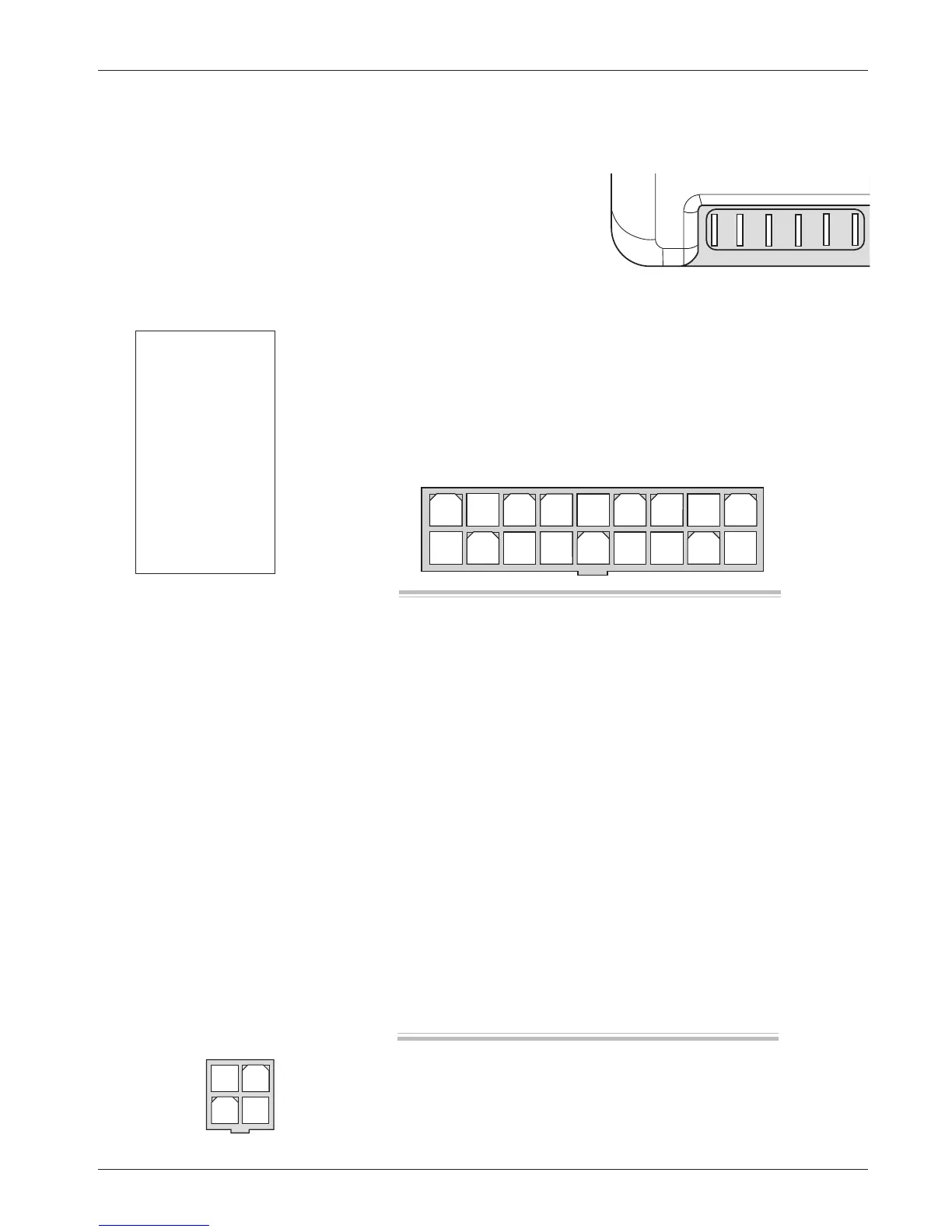

CONNECTIONS: High Current
Six 1/4” quick-connect terminals are provided for the high current connections.
Two terminals each are provided for
the motor
M1 and M2 connections. The
battery connections (
B+, B-) have one
terminal each.
CONNECTIONS: Low Current
The low current logic control connections are provided by an 18-pin connector
(see pin list below). The Molex Mini-Fit Jr. p/n 39-01-2185 with type 5556
pins is the mating connector; see chart at left for pin part numbers.
Two identical sets of B+/B- pins are provided; they are electrically con-
nected to the controller’s
B+, B- terminals and are rated at 9 amps. If these pins
are used, they should be fused appropriately to protect the controller.
A 4-pin low power connector is provided for the programmer. This connec
-
tor is also used to implement the seat lift feature. When you want to use the
programmer, unplug the seat lift connector and plug in the programmer.
1 2
3 4
Molex Type 5556 Pins
Brass / Tin
AWG P/N
16 39-00-0078
18–24 39-00-0039
22–28 39-00-0047
Phosphor Bronze / Tin
AWG P/N
16 39-00-0080
18–24 39-00-0060
22–28 39-00-0066
NOTE: 16 AWG wire and
pins are recommended for
the battery charger circuit.
J10
J9
J9 Pin 1 receive data (+5V)
J9 Pin 2 ground (B-)
J9 Pin 3 transmit data (+5V)
J9 Pin 4 +15V supply (100mA)
