1 — OVERVIEW
OVERVIEW
The Curtis 1228 MultiMode™ controller is a permanent magnet motor speed
controller designed for use in mobility aid scooters and other small electric
vehicles, such as sweeper/scrubbers. It offers smooth, silent, cost effective
control of motor speed and torque. A four quadrant, full bridge power output
stage provides for solid state motor reversing and full braking power without
additional relays or contactors.
The 1228 controller is fully programmable by means of a Curtis pro-
gramming device. Use of the programmer offers diagnostic and test capability
as well as configuration flexibility.
1

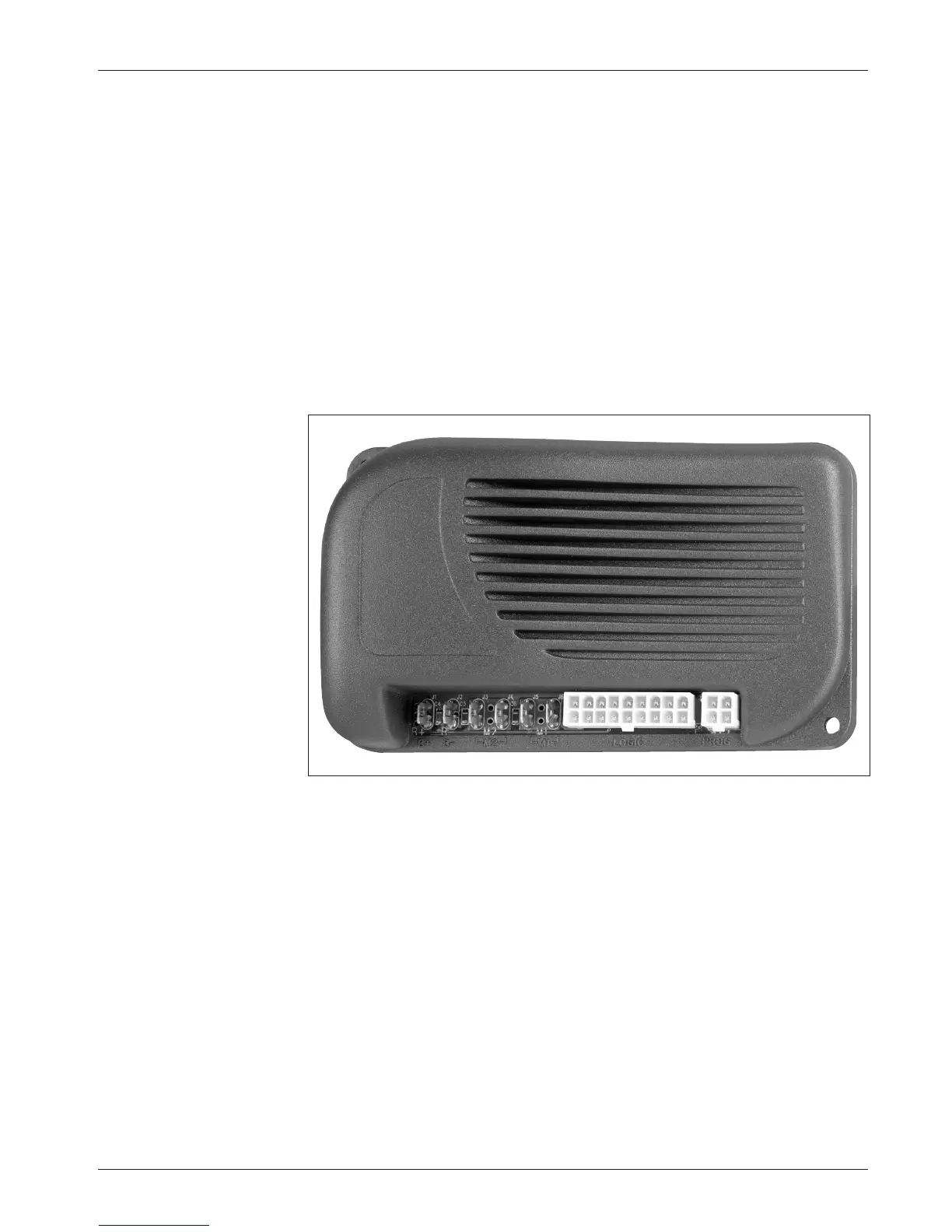

Fig. 1 Curtis 1228
MultiMode™ electronic
motor controller.
Like all Curtis motor controllers, the 1228 offers superior operator control
of the vehicle’s motor drive speed. In addition, the 1228 controls the seat lift
motor if one is used. Features include:
✓ Full bridge power MOSFET design, providing
• infinitely variable forward, reverse, drive, and brake control
• silent high frequency operation
• high efficiency
✓ Programmability through the Curtis programming device
✓ Complete diagnostics through the Curtis programmer and a status
LED
✓ Full compliance with all applicable international standards
More Features ☞
